RCF R12P110K Reconing-Kit
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of RCF

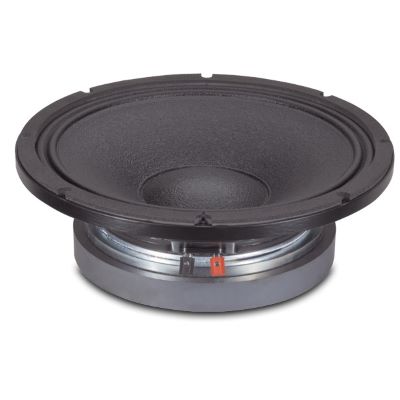

RCF R12P110K Reconing-Kit Product Details
Very high efficiency and low distortion are special features of this mid-bass transducer.
Special treatments are applied to cone surface and surround for optimum dampening.
The L12P110K is specially designed for compact size bass reflex enclosures. The unique combination of short voice coil and very high BL/Re ratio makes the L12P100K a very good choice when fast and precise mid-bass reproduction is required. Very good for high power horn loaded applications.
Features:
- Nominal Diameter: 300/12 mm/inch
- Rated Impedance: 8 Ohm
- Program Power: 1000 Watts
- Power handling capacity: 500 Watts
- Sensitivity 1W, 1m: 101 dB
- Frequency Range: 60-2000 Hz
- Effective Piston Diameter: 260/10.2 mm/inch
- Maximum Excursion Before Damage: 48/1.9 mm/inch
- Minimum Impedance: 7.6 Ohm
- Voice Coil Diameter: 100/4 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 10.5/0.4 mm/inch
- Number of layers: 2
- Kind of layer: Outside
- Thickness Top Plate Depth: 9/0.35 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M - roll
- Resonance frequency: Fs 44 Hz
- DC resistance: Re 5.6 Ohm
- Mechanical factor: Qms 4.3
- Electrical factor: Qes 0.14
- Total factor: Qts 0.13
- BL factor: BL 25 T - m
- Effective Moving Mass: Mms 55 gr
- Equivalent Cas air load: Vas 98 liters
- Effective piston area: Sd 0.053 m2
- Max. linear excursion: Xmax 3.0 mm
- Voice - coil inductance @ 1KHz: Le1k 1 mH
- Half-space efficiency: Eff 5.75 %
- Overall Diameter: 312/12.3 mm/inch
- Bolt Circle Diameter: 295 mm
- Bolt Hole Diameter: 7/0.3 mm/inch
- Front Mount Baffle Cut-out: 285/11.3 mm/inch
- Rear Mount Baffle Cut-out: 283/11.2 mm/inch
- Depth: 115/4.5 mm/inch
- Volume occupied by the driver: 2.8 liters/ft3
- Net Weight: 11.2/24.6 Kg/lbs
- Shipping Weight: 11.9/26.2 Kg/lbs
