Proel FreeTwoX Active Battery-Powered PA System with Bluetooth & Built-in Mixer

Proel FreeTwoX Active Battery-Powered PA System with Bluetooth & Built-in Mixer

Are you looking for a compact, battery-powered PA system that combines various audio sources, a built-in mixer, and a wireless Bluetooth connection all in one device? The Proel FreeTwoX Battery-Powered Active PA System with Bluetooth & Built-in Mixer is an all-in-one personal PA system featuring multiple inputs, a USB player, and Bluetooth connectivity. The system is housed in a compact and lightweight polypropylene enclosure designed for high durability. With multiple possible mounting positions, the FREETWOX offers flexible setup options. The system was designed for musicians, DJs, and general PA applications.

The speaker system features a coaxial design. A high-resolution 1-inch HF compression driver is combined with a powerful 6.5-inch LF woofer. This design is optimized for a balanced and cohesive sound, strong projection over long distances, and wide audience coverage. The frequency response ranges from 60 Hz to 20 kHz at -3 dB. The maximum sound pressure level is 114 dB, and the coverage angle is 90° x 60°.

400-watt Class-D amplification and integrated DSP processing

The FREETWOX’s electronics include a preamplifier section with a DSP processor and a 400 W Class-D power amplifier. The total peak power is 400 W. The high-frequency range is supported by 50 W of continuous Class-D power, while the low-frequency range operates with 150 W of continuous Class-D power. The system is designed as a vented 2-way enclosure.

A key component of the Proel FreeTwoX Active Battery-Powered PA System with Bluetooth & Integrated Mixer is the built-in digital mixer. It features two mono channels and one stereo channel. This allows for the connection of two microphones or instruments, as well as a stereo player. Independent level controls are available for each source. A 2-band EQ and studio-quality digital reverb are also integrated for the microphone and instrument inputs.

Flexible connections for microphones, instruments, and stereo sources

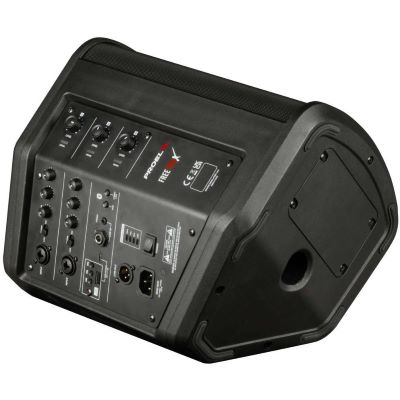

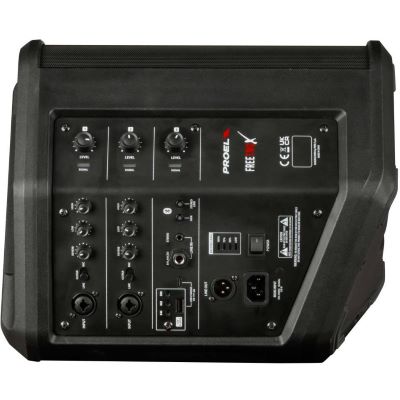

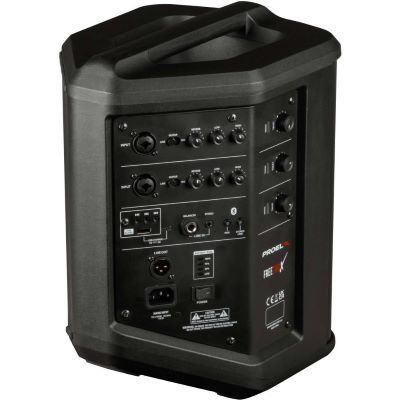

Two balanced XLR/TRS combo jacks are available for connecting various signal sources. There is also a balanced 6.35-mm jack, a 3.5-mm stereo jack, and a USB-A port for the PLAYER. The input channels include two MIC/GUITAR/LINE channels as well as a channel for BT, USB, STEREO LINE, or MONO LINE.

The FREETWOX features a balanced XLR output. It also includes a USB-C charging port. The USB charging function is rated at a maximum of 2 A. Controls for CH1/2 LEVEL, HIGH, LOW, and REVERB are available for direct operation. The USB player can be controlled via PLAY-PAUSE, NEXT, and PREVIOUS. For Bluetooth, controls for PAIR and STEREO LINK are available.

USB Player, Bluetooth 5.0, and Stereo Link

The built-in USB player allows playback of MP3 files from a USB flash drive. Additionally, the system features a built-in Bluetooth audio interface. Bluetooth operates using version 5.0 and supports audio streaming from compatible portable devices without the need for a wired connection.

Furthermore, FREETWOX supports the STEREO LINK function, also known as TWS. This feature expands the possibilities for wireless audio transmission. Together with the USB player, this provides various options for playing music and other audio signals through the system.

Up to 10 hours of battery life

For off-grid operation, the Proel FreeTwoX Active PA System with Bluetooth & Integrated Mixer features a built-in rechargeable lithium-ion battery with a capacity of 6000mAh. At medium volume, the system is rated for up to 10 hours of operation. This allows the system to be used for an extended period without a power connection. The recharge time is less than 4 hours.

For mains operation, the system supports a power supply of 100–240 V~, 50/60 Hz. Power consumption is 150 W. This means FREETWOX can be used both on battery power and with an existing AC power supply.

Compact polypropylene enclosure for mobile use

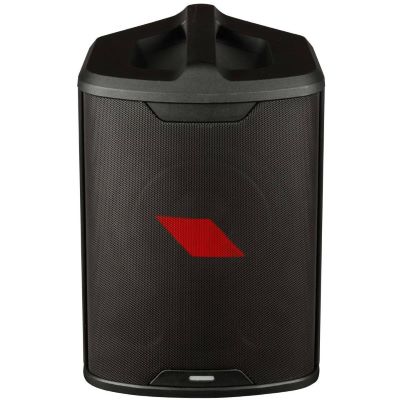

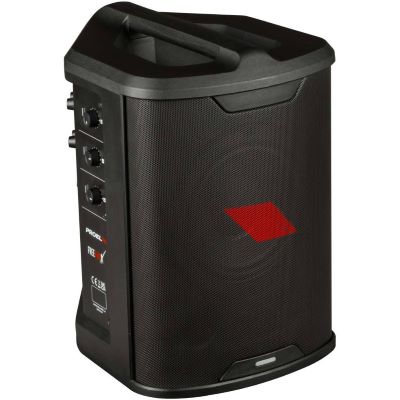

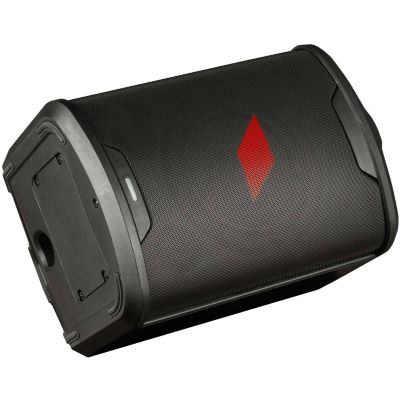

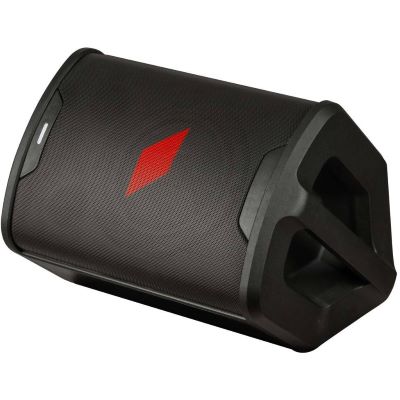

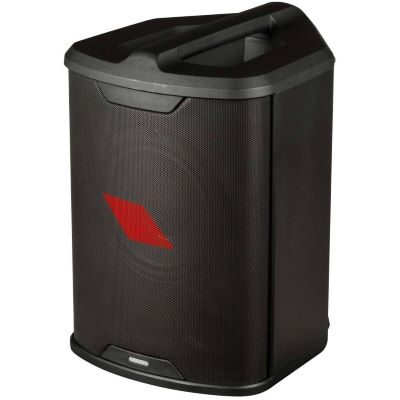

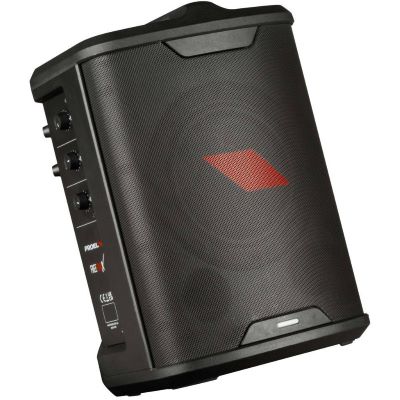

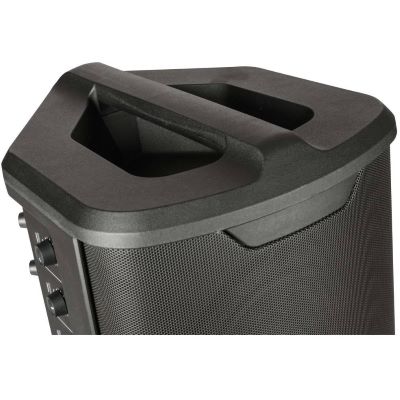

The housing is made of polypropylene and features a black textured surface. A powder-coated steel grille protects the speaker components. A handle on the top facilitates transport. Additionally, FREETWOX features a tripod mount on the bottom. The enclosure’s multiple orientation options support various setups.

With dimensions of 320 mm x 240 mm x 290 mm (12.59 in x 9.45 in x 11.42 in and a weight of 6.5 kg or 14.3 lb, the system is designed for compact and portable use. The combination of a coaxial speaker system, 400W Class-D amplification, DSP, digital mixer, USB player, Bluetooth, and built-in rechargeable battery bundles all these features into a single PA system.

Features:

• System Type: 2-way bass-reflex enclosure
• Tweeter: 1 x 1" coaxial compression driver
• Woofer: 1 x 6.5" woofer
• Frequency response (-3 dB): 60 Hz – 20 kHz
• Maximum sound pressure level: 114 dB
• Dispersion angle (H x V): 90° x 60°
• Total peak power: 400 W
• High-frequency continuous power: 50 W Class D
• LF continuous power: 150 W Class D
• Inputs: 2 x XLR/TRS combo, balanced
• Inputs: 1 x 6.35-mm jack, balanced
• Inputs: 1 x 3.5-mm stereo jack
• Inputs: 1 x USB-A for player
• Outputs: 1 x XLR, balanced
• Outputs: 1 x USB-C charging port
• Input channels: 2 x MIC/GUITAR/LINE
• Input channels: 1 x Bluetooth / USB / Stereo Line / Mono Line
• Controls: CH1/2 Level, High, Low, Reverb
• Controls: USB Play/Pause / Next / Previous
• Controls: Bluetooth Pair / Stereo Link
• Signal Processing: DSP
• Bluetooth: Version 5.0, audio streaming
• Enclosure material: Polypropylene
• Finish: Textured black
• Grille material: Powder-coated steel
• Handles: 1 x top
• Tripod mount: 1 x bottom
• Dimensions (H x W x D): 320 x 240 x 290 mm
• Dimensions (H x W x D): 12.59 x 9.45 x 11.42 inches
• Weight: 6.5 kg
• USB charging current: max. 2 A
• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: 150 W
• Battery type: Rechargeable lithium-ion battery, 6000 mAh
• Battery life at medium volume: up to 10 hours
• Charging time: less than 4 hours

Specs:

• Power: 150 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 6,5
• Tweeter: 1 x 1
• Number of channels: 4
• Set Offer: no
• Bluetooth: Yes
• Type: Acoustic Box
• Theme: PA and Sonication
