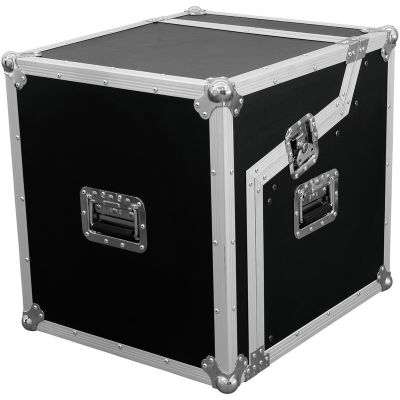

19" Mixer/CD Player Kombi Case 3/7/8 HE

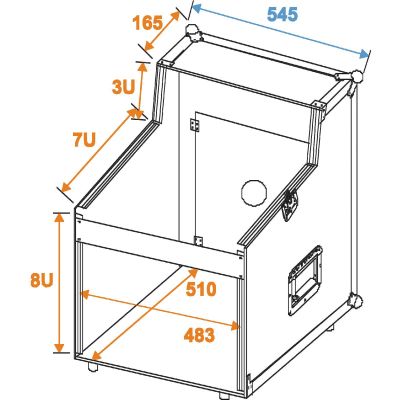

This special case is used to safely transport 19 inch devices, which can be attached to three different levels. The installation height of the lower rail is 8HE (1HE = 4.45 cm). The middle rail has a length of 7U, the upper 3U. A rack panel 2HE is included. The flight case is equipped with 2 butterfly clasps and a removable lid. A service flap on the back helps with wiring. Comes with enough screws, nuts and washers.

features:

• 3 sections suitable for 483 mm (19") units
• 3 HE and 7 HE section (top) with inclined profile rails, e.g. for mixing consoles, control panels of DJ CD players
• 8 U section (front) with profile rails, e.g. for CD drives, effects units, amplifiers

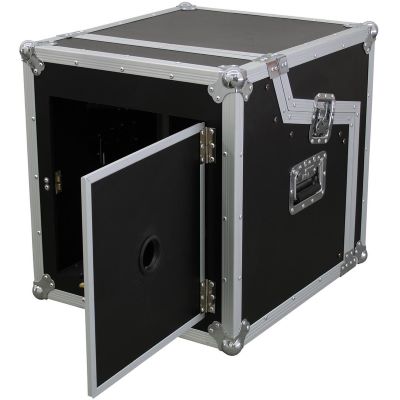

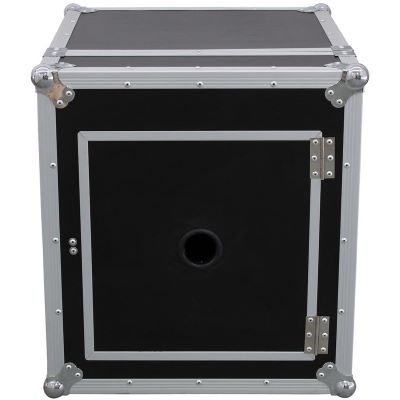

• Rear service door, with recess for cable entry
• High-quality workmanship made of multilayer glued wood, laminated in black
• Aluminium profile frame (25 mm) with rounded corners

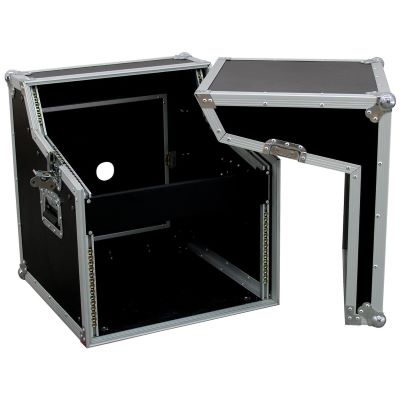

• Removable lid
• Three-legged, medium-sized steel ball corners
• 2 high-quality butterfly locks
• 3 Case folding handles
• Available in different height units (1 HE = 44 mm)

Technical data:

• Maximum load: 25 kg
• Wall thickness: 10 mm

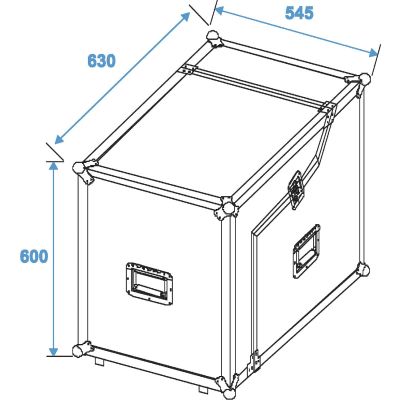

• Outside dimensions (WxDxH): 545 x 625 x 595 mm
• Installation width:483 mm (19")
• Outer dimension of corners: 64 mm
• Weight:19,5 kg

Specs:

• Type: Case
• Color: Black
• Width: 54.5 cm
• Height: 59.5 cm
• Depth: 62.5 cm
• Made in Germany: No
• Rack Unit: 8 U
• Material: Wood
• Theme: Cases, Bags, Racks
