ART Headamp 6 Pro

The six-channel headphone amplifier from ART has a balance control for each AUX input in order to be able to mix the sound appropriately.

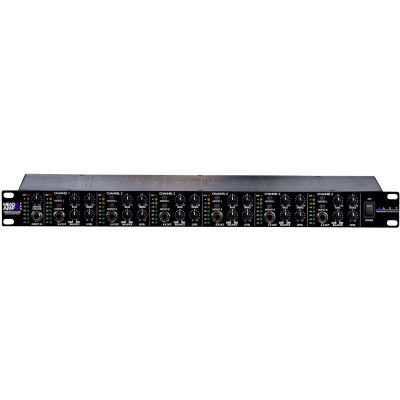

For fine-tuning the sound, each output channel has controls for bass and treble. Outputs include both front and rear stereo 1/4" jacks for easy installation and quick patching. Two MONO selector buttons on each channel choose between four operating modes: 1) Stereo, 2) Mono Left, 3) Mono Right, 4) Mono Both (Left & Right) for versatile monitoring solutions.

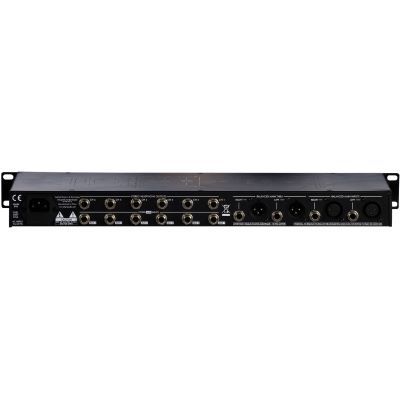

The main outputs for each channel of the headphone amplifier are rear-mounted stereo TRS sockets and are wired in parallel to the corresponding output sockets on the front panel. Front panel, rear panel or both front and rear panel outputs can be used simultaneously to drive headphones or as feeds to additional headphone amplifiers in a distributed audio network.

Input options include balanced XLR and 1/4-inch TRS inputs with matching "thru" jacks for bridging multiple HeadAmp 6 Pro devices. An additional 1/4-inch stereo TRS jack on the front panel for quick patch override of the rear panel inputs is included for quick insertion of any stereo source. Eight-segment LED level meters provide visual feedback of the signal level on all channels as well as on the main signal bus.

Features:

• Six channels with separate bass & treble controls
• Front and rear output sockets
• Balanced XLR and 1/4-inch TRS inputs
• Works in stereo, mono (left source), mono (right source) or summed mono (left & right source)
• Separate input for additional, front-mounted signal sources
• 8 LED indicators on all channels

Technical data:

• Maximum input level +21.5dBu
• Input impedance 40k Ω balanced
• Maximum output level 500 mW @ 32 Ω
• Maximum gain 25.6 dB (Tone Controls Set Flat)
• Frequency response 20 Hz - 50 KHz +0, -2dB
• CMMR 40dB
• Dimensions 44.5 x 482 x 190mm
• Weight 3.1 kg
• Operating voltage 105-125 VAC AC 60 Hz

Specs:

• Accessoires Type: Headphone Amp
• Color: Black
• Type: Amps
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (378.1 KB)
