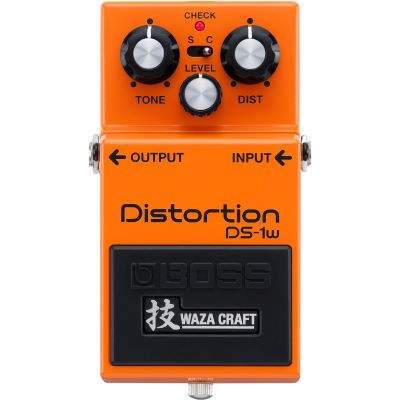

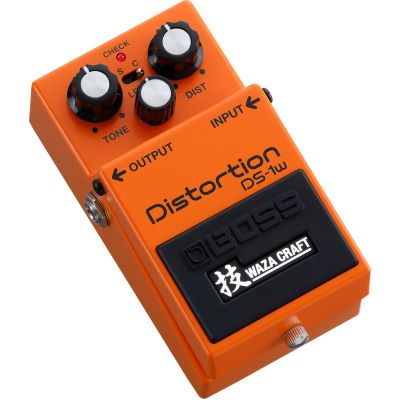

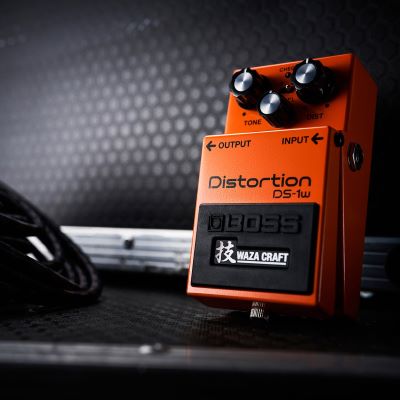

Boss DS-1W Distortion Waza Pedal

The DS-1 Distortion is an icon in the world of guitar effects. Introduced in 1978, it was BOSS' first distortion pedal and offered a rich, never-before-heard sound, edgy attack and smooth sustain that has delighted guitarists for generations. The DS-1 is the best-selling BOSS compact pedal of all time, and its unchanged design continues to inspire the creation of great music today. The DS-1's renowned tone has shaped the sound of numerous rock legends - and today, it's your turn.

Features:

• Nominal input level: -20 dBu
• Input impedance: 1 M ohms
• Nominal output level: -20 dBu
• Output impedance: 1 kOhm
• Recommended load impedance: 10 kOhm or higher
• Controls: Pedal switch; TONE knob; LEVEL knob; DIST knob
• Display: CHECK indicator (used to indicate test battery)

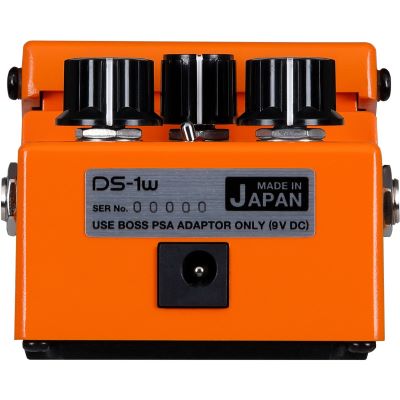

• Connectors: INPUT jack: 1/4-inch phone plug; OUTPUT jack: 1/4-inch phone plug; DC IN jack
• Power supply: Alkaline battery (9 V, 6LR61) or zinc-carbon battery (9 V, 6F22); AC adapter (PSA series: sold separately)
• Current consumption: 10 mA
• Expected battery life for continuous operation: Carbon: Approx. 50 hours; Alkaline: Approx. 80 hours
• Accessories: Instruction sheet ("SAFE USE OF THE DEVICE", "IMPORTANT NOTES" and "Information"); Carbon Zinc Battery (9 V, 6F22)
• Option (sold separately); AC adapter (PSA series)
• Width: 73 mm
• Depth: 129 mm
• Height: 59 mm
• Weight: 360 g

Specs:

• Color: Orange
• Effect Type: Distortion
• Type: digital Effects Processor
• Theme: Guitars and Basses
