Boss GK-5B Bass Synth Pickup

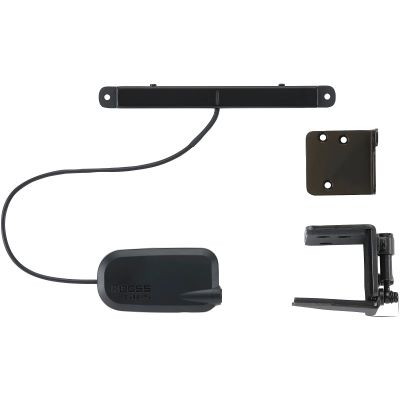

The GK-5B divided pickup is a specialized bass pickup designed specifically for the GM-800 and other BOSS guitar synthesizer products. Unlike conventional bass pickups that send all string signals to a common output, the GK-5B senses each string individually and sends the respective signals to separate outputs within the Serial GK system. Compatible BOSS products can process this isolated string information, offering a wide range of possibilities not possible with standard pickups.

Features:

• Groundbreaking subdivided pickup for electric basses
• Compatible with Serial GK interface in new BOSS guitar synthesizer products
• Stable digital transmission
• Lightweight and compact connector housing with lower profile than previous GK pickups
• Flat, slim pickup fits most electric basses with four, five or six strings
• Adjustable pickup spacing to fit most bass bridges
• Securely attaches the connector housing to the instrument's strap pin using the included bracket
• Connection: GK OUT jack: 1/4-inch TRS jack (for BGK cable only)
• Accessories: Mounting parts kit; User manual; Instruction sheet Notes
• Dimensions from housing (W x D x H): 38 mm x 73 mm x 16 mm
• Weight of housing: 30 g
• Pickup dimensions (W x D x H): 138 mm x 15 mm x 9 mm
• Weight of pickup: 20 g

Specs:

• Pickup type: Other
• Pickup-Type: passive
• Strings: 6
• Color: Black
• Type: Pickup
• Theme: Guitars and Basses
