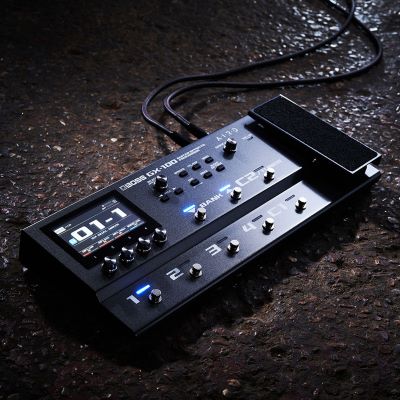

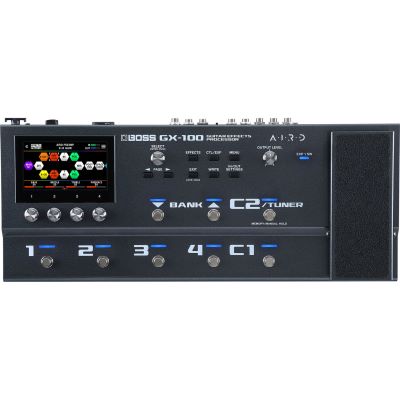

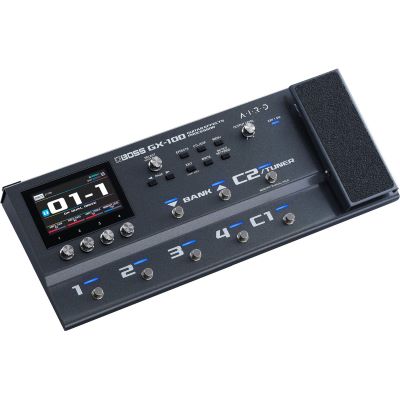

Boss GX-100 Gitarren-Effektprozessor

The GX-100 combines groundbreaking BOSS sound technologies with a sleek, modern hardware design to deliver top performance anywhere. Explore 23 AIRD amps and more than 150 effects from the flagship GT-1000 and create outstanding sounds in just a few steps using the intuitive color touch display. Up to 15 simultaneous effect blocks offer unlimited sound possibilities - especially when combined with in-depth real-time control via the built-in footswitches, expression pedal, or external control options.

The GX-100 delivers outstanding sound and a natural tube amp feel in any situation. This is made possible by AIRD technology and our continuously evolving Tube Logic concept. AIRD is a fundamental part of every single GX-100 guitar and bass amplifier. With the AIRD Output Select types, you can perfectly match their sound to any destination - whether it's an amplifier, an FRFR speaker, or a PA. There are also numerous built-in speaker cabinets, including the ability to import your own speaker impulse responses via USB.

Features:

• Powerful, easy-to-use amp/effects processor for guitar and bass.
• 24-bit AD/DA conversion, 32-bit floating point processing and 48 kHz sampling rate
• Authentic tube amp sound with realistic response thanks to AIRD technology
• 23 amp types and over 150 BOSS effects
• Extremely versatile amp/effect routing with 15 assignable blocks
• Wide range of integrated speaker types including import of custom WAV impulse responses

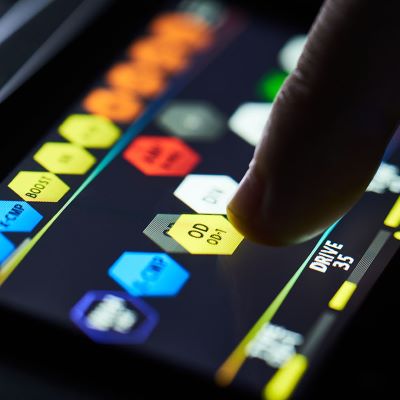

• Sleek, modern design with intuitive touch color display and rugged metal chassis
• Extensive effects control thanks to freely assignable integrated footswitches and expression pedal with toe switch
• Connect up to two external footswitches or an expression pedal for even more options

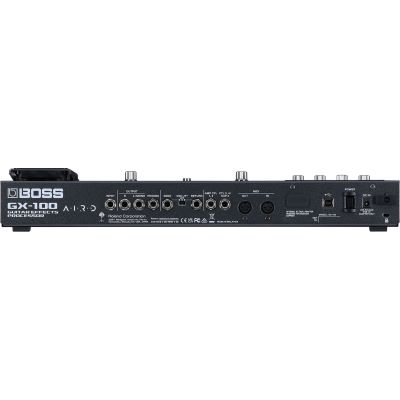

• Send/return loop for external pedals in four-cable setups
• Control port for external switching of amp channels
• MIDI I/O and USB for multi-channel computer recording
• Edit sounds on your computer with BOSS Tone Studio for macOS and Windows
• Optional Bluetooth® Audio MIDI dual adapter for editing sounds and streaming audio via iOS and Android mobile devices
• Sampling frequency: 48 kHz
• AD conversion: 24 bits + AF method
• DA conversion: 24 bits
• Processing: 32-bit floating point
• Effects: 154 types
• Maximum number of effects: 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
• Memory locations: 200 (user) + 100 (preset)
• Phrase loop: 38 sec (MONO); 19 sec (STEREO)
• Internal tuner detection: +/-0.1 cent
• Nominal input level: INPUT: -10 dBu; RETURN: -10 dBu
• Maximum input level: INPUT: +18 dBu; RETURN1: +8 dBu
• Input impedance: INPUT: 1 M ohm; RETURN: 1 M ohm
• Nominal output level: OUTPUT (L/MONO, R): -10 dBu; PHONES: -10 dBu; SEND: -10 dBu
• Output impedance: OUTPUT (L/MONO, R): 1 k ohm; PHONES: 44 Ohm; SEND: 1 k ohm
• Recommended load impedance: OUTPUT (L/MONO, R): 10 k ohm or higher; PHONES: 44 ohm or higher; SEND: 10 k ohm or higher

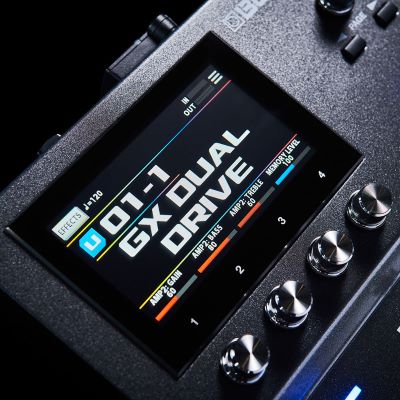

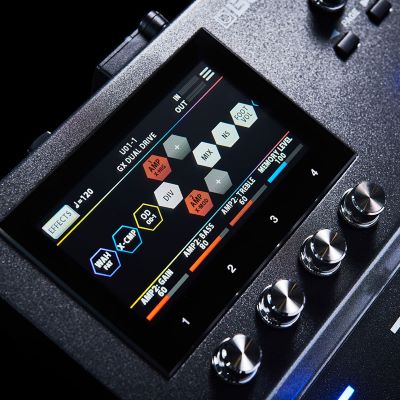

• Display: Color graphic LCD (480 x 272 dots) touch screen
• Power supply: AC adapter
• Power consumption: 1.2 A
• Width: 460 mm
• Depth: 193 mm
• Height: 73 mm
• Maximum height: 94 mm
• Weight: 3.5 kg
• Accessories: power adapter (PSB-1U + power cord set), user manual & instruction sheet

Specs:

• Color: Black
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (9.79 MB)
