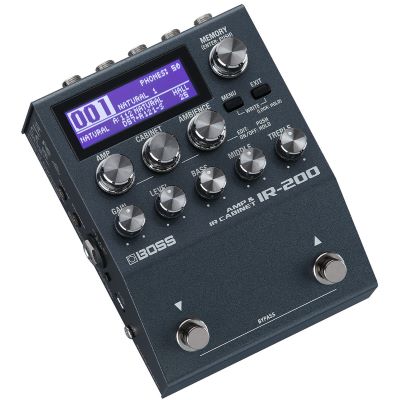

Boss IR-200 Amp & IR Cabinet

Boss brings you the IR-200 - a compact and groundbreaking direct amp and IR solution. The powerful stompbox delivers next-generation, ready-to-play guitar and bass sounds with outstanding audio quality based on high-quality amplifiers, extensive sound processing and recallable sounds from 128 memory locations. Choose from 150 high-resolution speaker box impulse responses from BOSS and Celestion Digital, complemented by 128 memory locations for loading your own mono and stereo impulse responses.

The IR-200 transforms your pedalboard into a standalone direct-sound solution for live performance, studio recording, and home practice. The compact pedal delivers impressive amp sounds and works easily with your favorite pedals in your pedalboard - from stereo modulation effects to delays and reverbs. Once you find their sound, you can send the signal to a stage amp, PA, DAW or headphones - or all at once.

Features:

• Width: 4 inches (101 mm)
• Depth: 138 mm (5-7/16 in.)
• Height: 63 mm (2-1/2 inches)
• Height (with rubber feet): 65 mm (2-9/16 in.)
• Weight (without AC adapter): 660 g (1 lb 8 oz)
• Memory: 128
• Sampling frequency: 96 kHz
• Power supply: AC adaptor
• power consumption: 335 mA
• Processing: 32-bit floating point
• DA conversion: 32 bits
• AD Conversion: 32 bits + AF method (AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters).
• IR cabinet data format: mono/stereo, maximum, 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point
• Preset IR cabinet: 154
• User IR cabinet slot: 128
• Normal input level: INPUT, RETURN: -10 dBu, AUX IN: -20 dBu
• Maximum input level: INPUT, RETURN: +7dBu, AUX IN: 0 dBu
• Input impedance: INPUT, RETURN: 1 M ohm, AUX IN: 27 k ohms
• Normal output level: OUTPUT (A/MONO, B), SEND, PHONES: -10 dBu
• Maximum output level: OUTPUT (A/MONO, B), SEND, PHONES: +7dBu
• Output impedance: OUTPUT (A/MONO, B), SEND: 1k ohm, PHONES: 44 ohms
• Recommended load impedance: OUTPUT (A/MONO, B), SEND: 10 k ohms or greater, PHONES: 44 ohms or more
• Controls: DOWN switch, UP switch, MENU button, EXIT button, MEMORY knob, AMP knob, CABINET knob, AMBIENCE knob, GAIN knob, LEVEL knob, BASS knob, MIDDLE knob, TREBLE knob
• Display: Graphic LCD (132 x 32 dots, backlit LCD)

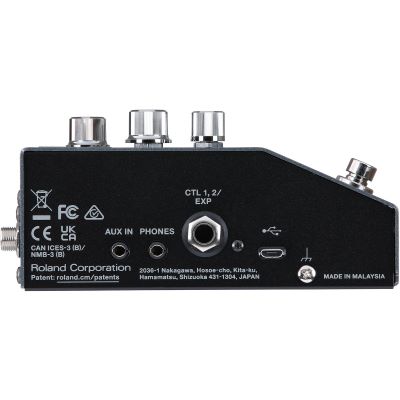

• Connectors: INPUT, SEND, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, RETURN jack: 1/4-inch TRS phone type, AUX IN: Stereo miniature phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) connectors: Stereo miniature phone type, USB COMPUTER port: USB Micro-B type, DC IN jack
• Accessories:AC adapter, user manual, "SAFE USE OF THE DEVICE" booklet, footswitch: FS-5U, double footswitch: : FS-6, FS-7; expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

Specs:

• Color: Blue
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (1.67 MB)
