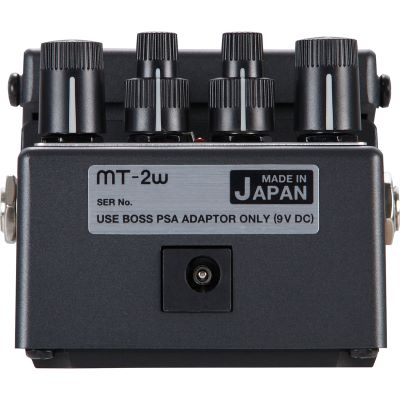

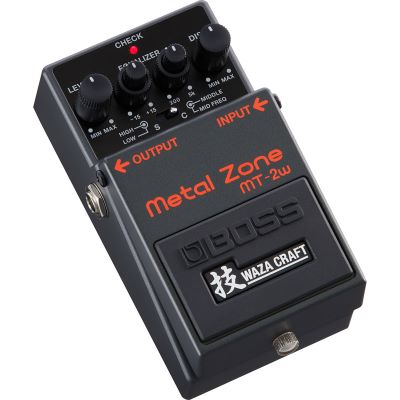

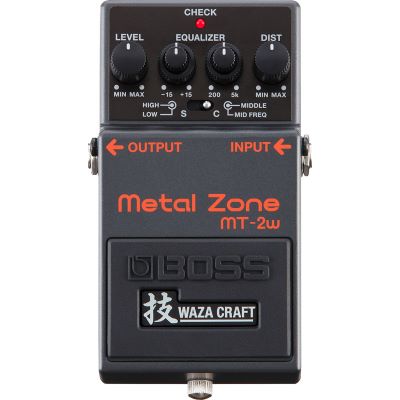

Boss MT-2W Metal Zone Waza Craft

The Boss MT-2W Metal Zone Waza Craft is a premium Waza Craft pedal with fully analog gear shifting. Capable of producing a versatile range of heavy tones, the MT-2’s innovative dual-stage gain circuit has influenced legions of pedal designers through the years. Another standout feature is its groundbreaking three-band EQ with parametric midrange, which provides deep sound-shaping ability for covering numerous high-gain styles. The pedal was also one of the first BOSS compacts with dual-concentric knobs, offering expanded control without increasing size.

Features:

• Premium Waza Craft pedal with all-analog audio circuitry
• Innovative dual-stage gain circuit built with discrete analog components
• Standard mode updates the famous MT-2 Metal Zone sound with improved clarity and lower noise
• Custom mode delivers full-throttle gain tones with wider range, increased dynamics, and tighter low end
• Powerful three-band EQ provides intense sound customization with High, Low, and sweepable Midrange and up to 15 dB boost/cut on each band
• Premium buffer for clean and clear tone when bypassed

Technical Specificatons:

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: Pedal switch; Mode switch; Dist knob; Equalizer Middle/Mid FREQ knob; Equalizer High/Low knob; Level knob
• Indicator: Check indicator (Used for indication of check battery)
• Connectors: Input jack: 1/4-inch phone type; Output jack: 1/4-inch phone type; DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22); AC adaptor (PSA series: sold separately)
• Current Draw: 35 mA
• Expected battery life under continuous use: Alkaline: Approx. 18 hours; Carbon: Approx. 7 hours
• Accessories: Owner's manual; Leaflet ("Using the unit safely" "Important notes" and "Information"); Alkaline battery (9 V, 6LR61)
• Option (sold separately): AC adaptor: PSA series
• Width: 73 mm (2-7/8 inches)
• Depth: 129 mm (5-1/8 inches)
• Height: 59 mm (2-3/8 inches)
• Weight (including battery): 440 g (1 lb)

Specs:

• Color: Black
• Effect Type: Distortion
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (905.09 KB)
