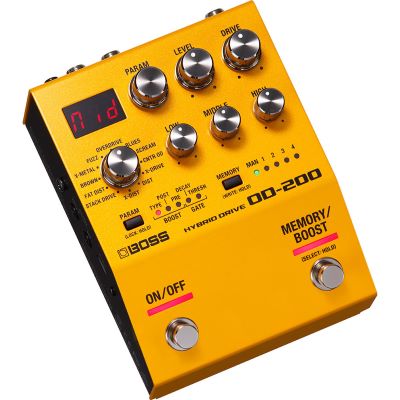

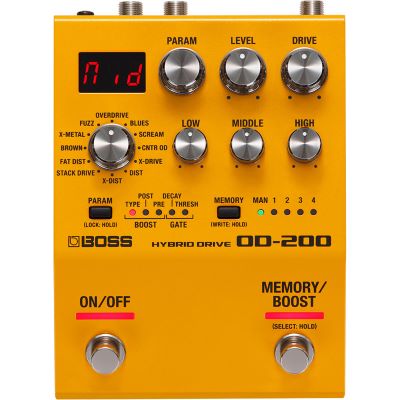

Boss OD-200 Hybride Drive

The Boss OD-200 Hybrid Drive convinces with high quality sound, extraordinary versatility and minimal Space requirement on your pedal board. Intuitive controls and multifunctional switches make operation easy. For added convenience, there's internal storage so you can instantly access your own setups when you need them. The high audio quality of the 200 Series pedals is based on 32-bit AD/DA conversion, 32-bit internal signal processing and 96 kHz sampling rate. You can also control the pedals via external switches, an expression pedal or MIDI.

Features:

• Advanced hybrid circuit design on analog and digital basis for an enormous drive bandwidth from classic to modern
• 12 drive modes + 15 boost types with individual gain positioning (pre/post)
• Optional serial or parallel boost structure for flexible gain adjustments
• Advanced gate function eliminates noise and ambient noise for defined high-gain sounds
• First-class sound quality thanks to 32-bit AD/DA conversion, 32-bit floating point calculation and 96 kHz sampling rate
• Real-time settings + four memories for your favorite sounds
• Panel lock function deactivates controllers to protect against unwanted parameter changes
• Customizable multifunction footswitches for bypass, boost, memory selection and more
• Extended control via external footswitches, expression pedal or MIDI

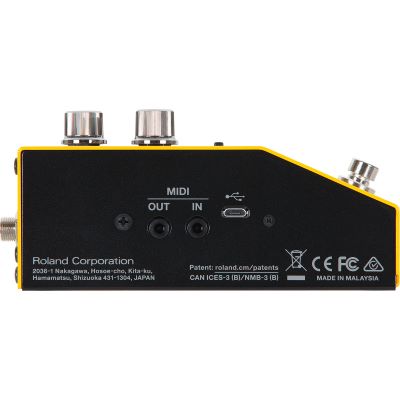

• MIDI input/output via mini-jack connectors (BMIDI-5-35 adapter cable sold separately)
• Micro-USB port for firmware updates
• Operation via PSA series power supply or three AA batteries

Specs:

• Color: Yellow
• Effect Type: Overdrive
• Type: digital Effects Processor
• Theme: Guitars and Basses
