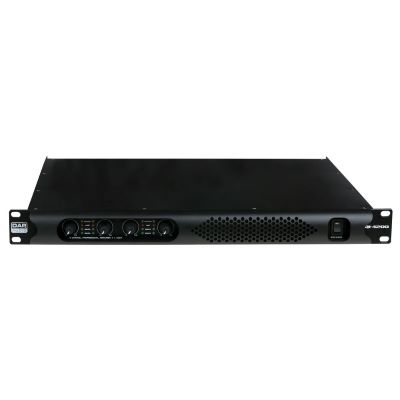

DAP Audio Qi-4200

DAP Audio Qi-4200: Powerful amplifier for professional installations

The DAP Audio Qi-4200 amplifier series has been specially developed for professional installations and is the ideal complement to the Xi installation speaker series. Whether in large conference rooms, auditoriums or event venues, the Qi-4200 series guarantees optimum sound quality and reliability. Thanks to its robust steel housing, it is not only suitable for stationary installations, but is also an excellent choice for mobile use. With its versatile functionality and advanced technology, this series sets new standards in audio technology.

Development and manufacturer: DAP Audio

DAP Audio is known for high-quality audio solutions that impress both in the professional event industry and in installations. The company has made a name for itself by developing products that combine functionality, durability and state-of-the-art technology. With the Qi amplifier series, DAP Audio once again delivers a solution that meets the high demands of the professional market. Each amplifier is manufactured with great precision and under strict quality standards to ensure superior performance and reliability.

Technical details: Efficiency and performance combined

The DAP Audio Qi-4200 amplifier impresses with its compact design and impressive performance. With a height of just 1U (height unit), it is perfect for mounting in 19-inch racks and saves valuable space. The Class D amplifier technology in combination with a switch mode power supply (SMPS) ensures high energy efficiency and low weight. The 4 channels of the amplifier are individually controllable and deliver an output of 200 watts per channel at 4 ohms or 120 watts at 8 ohms. In bridge mode, the Qi-4200 achieves an output of 400 watts at 8 ohms. The frequency response ranges from 10 Hz to 20,000 Hz, which enables clear and detailed sound reproduction. With a signal-to-noise ratio of over 90 dB and a signal-to-noise ratio of less than 0.5%, the amplifier meets the requirements for professional audio output.

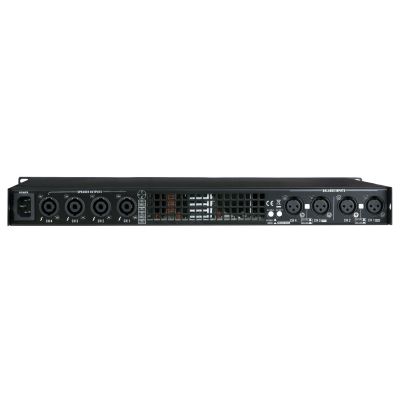

The connections of the Qi-4200 are designed to be user-friendly. The inputs are designed as XLR sockets, while the outputs use NL4 SpeakON connectors. This ensures simple integration into existing audio systems. The housing is made of robust, powder-coated metal, which offers high resistance to external influences and supports the amplifier's longevity.

Advanced protection circuits

The Qi-4200 has comprehensive protective functions that protect both the amplifier and the connected speakers from damage. These include short-circuit protection, thermal protection and DC and HF protection mechanisms. An integrated limiter prevents overdriving, while soft start technology ensures that the device starts up safely and avoids current peaks. These protective measures not only ensure safe operation, but also a longer service life for the amplifier.

Compact design for flexible use

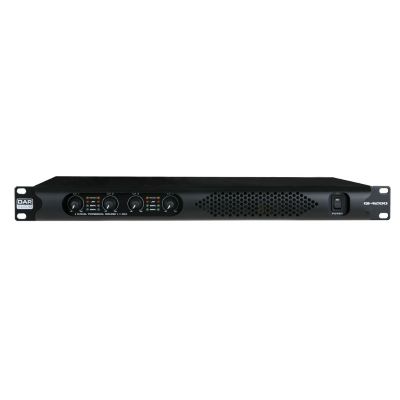

With a depth of 390 mm and a weight of 6.4 kg, the Qi-4200 is ideal for mobile use. The compact size saves space in the rack and makes transportation easier. LED indicators for Clip, Power, Protect and Signal provide a quick overview of the operating status of the device. Thanks to its robust construction and reliable performance, the Qi-4200 is ideal for both fixed installations and mobile applications.

Conclusion: DAP Audio Qi-4200 - A must-have for professionals

The DAP Audio Qi-4200 is a powerful and efficient amplifier that is ideal for both fixed installations and mobile use. With its versatile features, compact design and advanced protection mechanisms, it offers a reliable solution for professional audio applications. Whether for small venues or large installations, the Qi-4200 always delivers convincing performance and excellent sound quality.

Features:

• 19-inch rack mounting
• 4 channels and 2-channel bridge mode
• Only 1U space requirement
• Class D amplifier technology with switching power supply
• Individual bridge control per 2 channels
• Advanced protection circuits (short circuit, thermal, DC, HF)
• Soft start technology
• Robust metal housing
• Lightweight and compact: 6.4 kg with 1U height
• LED indicators: Clip, Power, Protect, Signal

Specs:

• Type: Amps
• Theme: PA and Sonication
