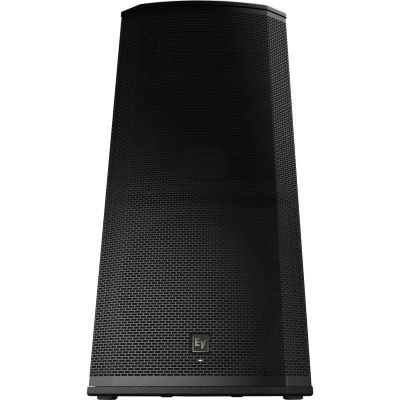

EV Electro Voice ETX-35P

The ETX-35P from Electro Voice is an active 3-way loudspeaker with DSP. It can be used mobile or permanently installed, standing alone, stacked, as a combo, standing or hanging. The high-quality speakers (15, 6.5 and 1.25 inch) deliver high output power and clear reproduction quality with minimal distortion.

Features:

• Active 3-way loudspeaker
• 2000 watt amplifier and 136 dB peak SPL
• One-button DSP with presets for various settings and top+sub combinations (performance style, locations and distance)
• Integrated LC display and LED display on the front for power monitoring
• Three high-sensitivity transducers for high output power with precise reproduction and lowest distortion
• Suitable for floor, stack, combo, installation or mobile use

Technical data:

• Frequency response (-3dB): 48Hz - 20kHz
• Frequency range: (-10dB): 38Hz - 20kHz
• Maximum sound pressure level: 136dB peak
• Beam angle: 60° x 40°
• Rated power: 2000W
• Woofer: SMX2151 380mm (15 inch)
• Midrange driver: EVS-6C 6.5 inch
• Tweeter: DH3-B 1.25 inch titanium compression driver
• Crossover frequency: 700Hz, 2900Hz
• Connections: 2x XLR/stereo jack combo socket, 1x XLR link output
• Housing: 18 mm 13-ply birch plywood with EV cover
• Grille: 16AWG powder-coated steel
• Mounting points: 8x M10
• Dimensions: 1023 x 469 x 426mm / 40 x 18 x 17" (HxWxD)
• Weight: 38.2kg / 84.2lb
• Power consumption: 100-240V, 50-60Hz, 1.6-0.8A

Specs:

• Power: 2000 W
• Housing Material: Wood
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 15
• Tweeter: 1 x 1,25
• Number of channels: 2
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication
