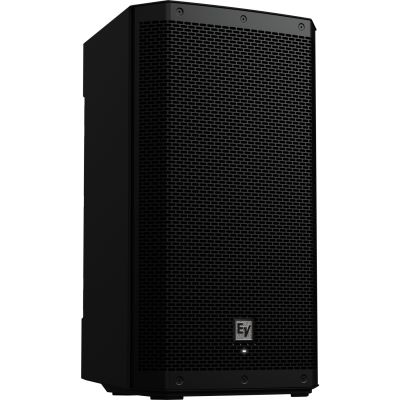

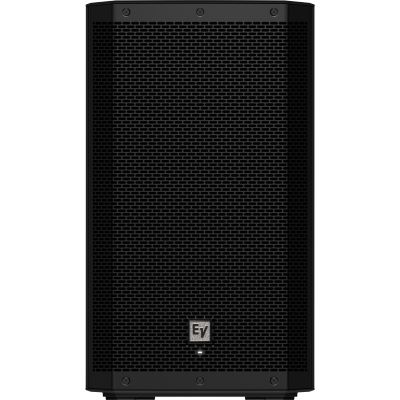

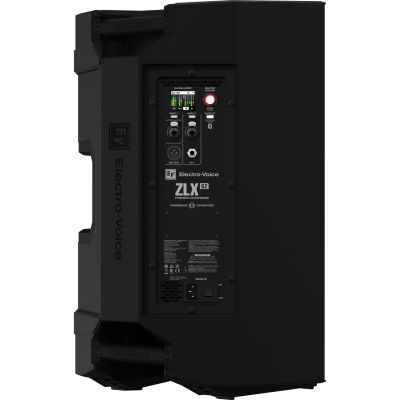

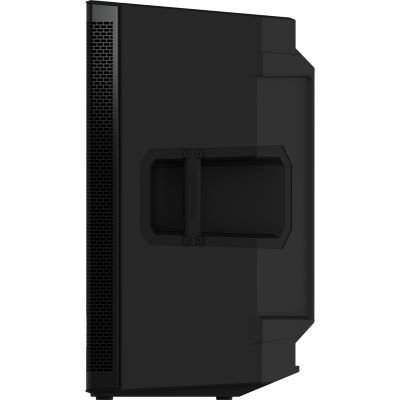

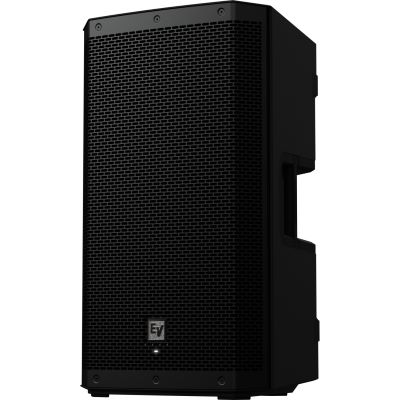

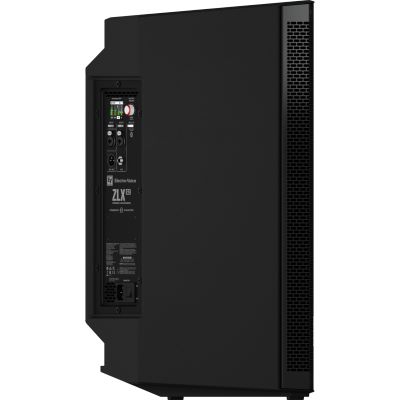

EV Electro Voice ZLX 15P G2 Aktiver Lautsprecher

The new ZLX-G2 professional audio speaker series is the next generation of Electro-Voice's successful speakers. It raises the standard for performance and features in its class. The ZLX-G2 series is offered with 15-inch, 12-inch and now 8-inch woofers, both active (powered) and passive. ZLX-G2 speakers lead with acoustic performance and extended frequency range. The Electro-Voice patented Signal Synchronized Transducers (SST) baffle design provides improved bass response, smaller size and more even coverage across all frequencies. The ZLX-G2 series is equipped with a robust and ergonomic housing that is characterized by durability and portability.

Features:

• EV Electro Voice - ZLX 15P G2 Active Loudspeaker
• ZLX-G2 is the next generation of Electro-Voice's most successful pro audio speaker series
• Increased maximum SPL sound pressure level and extended frequency response
• Robust and ergonomic design for lasting durability and mobility
• Advanced connectivity with Bluetooth® wireless stereo streaming and QuickSmart mobile app control
• POWERED BY DYNACORD - Built-in digital mixer with FX, AFS, Ducker, PEQ and more
• Frequency response (-3 dB) (Hz) 1: 48 Hz - 18,000 Hz
• Frequency range (-10 dB) (Hz) 1,2: 42 Hz - 20,000 Hz
• Max. Sound pressure level at a distance of 1 m (dB) 3: 129 dB
• Signalization range (HxV): 90° x 60°
• Crossover frequency (kHz): 1.40 kHz
• Nominal power (W): 1000 W
• Power consumption (V, Hz) 4: 100-240 V~, 50-60 Hz
• Woofer: WECA2158
• LF transducer size (in): 15 in
• LF transducer magnet material: Ferrite
• Tweeter: DECA2516
• Tweeter type: Compression driver
• HF transducer size (in): 1.40 in
• HF transducer magnet material: Ferrite
• Tweeter cone material: Titanium
• Connection type: (2) XLR/TRS combined, (1) 1/4- inch TS Hi-Z
• Material: Polypropylene
• Grille material: Powder-coated steel
• Dimensions (H x W x D) (mm): 697.6 mm x 422.8 mm x 383.1 mm
• Weight: 16.78 kg

Specs:

• Power: 250 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 15
• Tweeter: 1 x 1,4
• Number of channels: 4
• Set Offer: no
• Bluetooth: Yes
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (8.09 MB)
