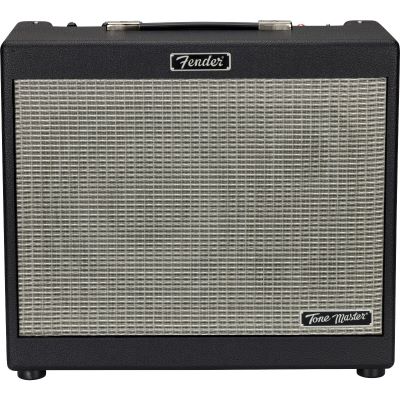

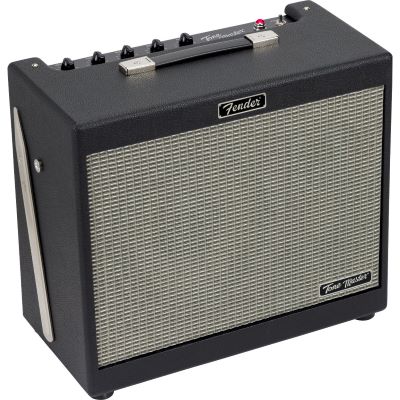

Fender Tone Master FR-10

Fender Tone Master FR-10 - Active full-range speaker for digital amps & modelers

With the Fender Tone Master FR-10, Fender presents a state-of-the-art active full-range speaker cabinet designed specifically for use with digital amp modelers, profilers and multi-effects processors. As part of the renowned Tone Master series, the FR-10 offers an impressively neutral and dynamic sound reproduction - ideal for all guitarists who rely on precise amp emulations and perfect stage sounds.

Equipped with a powerful 1000-watt Class D amplifier, a specially developed 10" speaker and a 1" high-frequency driver with wide dispersion, the Tone Master FR-10 delivers a linear frequency response and sufficient headroom for live situations of any size. The integrated tone controls with active 3-band EQ and high-frequency cut enable detailed fine-tuning of the sound - without any influence on the DI signal to the FOH or recording interface.

Fender - A legend of amplification, now also full-range

As one of the most traditional and influential manufacturers in the field of amplification technology, Fender has built up a legendary reputation over the decades. With the Tone Master Series, Fender has successfully bridged the gap between analog history and the digital future. The FR series now expands this portfolio with high-resolution active loudspeakers that have been specially developed for use with modern digital rigs such as the Fender Tone Master Pro.

The focus of the development was on the most neutral, unadulterated reproduction of amp modeling and virtual effects possible - paired with the proven Fender design language. The result is a stage monitor that is not only technically state-of-the-art, but also blends harmoniously into any backline.

Technical details of the Fender Tone Master FR-10

At the heart of the Tone Master FR-10 is a 1000 watt Class D amplifier that not only impresses with its power, but also with its efficiency. In combination with a specially tuned 10" speaker and a 1" high-frequency compression driver, the result is a clearly defined, wide-radiating sound with high transparency - perfect for realistic amp and cab simulations.

The frequency response is 75 Hz to 20 kHz (-3 dB), which means that the FR-10 can also accurately reproduce low-frequency signals such as drop tunings or bass-heavy effects. The maximum sound pressure level is a full 130 dB - sufficient for medium to large stages, rehearsal rooms or professional studio use.

The active 2-way system is supplemented by a 3-band EQ consisting of controls for bass, mid-range, treble and a HF cut. This sound control makes it possible to individually adjust the speaker characteristics to the room, playing style or sound preferences without changing the DI output - ideal for live situations with FOH pick-up.

The connection section includes an XLR/TRS combo input (balanced) and an XLR line output with ground lift switch. This allows the signal to be passed on to a mixing console, audio interface or another FR box without interference. The Tone Master FR-10 works with mains voltages of 100-240 V, making it ideal for international tours.

The construction is also impressive across the board: the lightweight plywood housing ensures a low total weight of just 11.6 kg and yet offers a high level of stability. The design is based on classic Fender amps - with black vinyl covering, silver front cover and chrome-plated handle details. Integrated, inclined feet enable optimum sound distribution on stage or in the studio.

With dimensions of 43.5 cm (H) x 49.2 cm (W) x 24.4 cm (D), the speaker is compact enough for mobile use and is easy to transport - ideal for musicians who travel a lot or prefer space-saving solutions in their home studio.

Why you should buy the Fender Tone Master FR-10

If you're looking for a reliable, powerful and sonically accurate speaker system for your modeling or profiling solution, the Fender Tone Master FR-10 is for you. Designed to match perfectly with digital rigs - especially the Fender Tone Master Pro - this full-range speaker delivers pristine, detailed sound reproduction that showcases your virtual amps and effects in full sonic depth.

Thanks to its enormous power, broad frequency spectrum, flexible tone control and practical design, the FR-10 is suitable for a wide range of applications: from the small stage to the rehearsal room to professional studio work. Its neutrally tuned reproduction ensures that every preset sounds exactly as it was programmed - with maximum dynamics and clear headroom.

Added to this is the striking Fender design, which fits perfectly into any classic amp backline - visually coherent and functionally well thought out. If you are looking for the highest sound quality, practical features and a solid overall package, the Fender Tone Master FR-10 is an absolutely professional choice.

Features:

• 1000 watt Class D amplifier for high volume and headroom
• 10" special design speaker for powerful mids and basses
• 1" compression tweeter with wide dispersion
• Active 3-band EQ with bass, mids, treble and HF cut control
• Balanced XLR/TRS combo input
• Line-out (XLR) with ground lift
• Maximum SPL: 130 dB
• Frequency range: 75 Hz - 20 kHz (-3 dB)
• Lightweight plywood housing with inclined feet
• Classic Fender-style look with vinyl cover and silver grille
• Voltage range: 100-240 V, 50-60 Hz
• Dimensions: 43.5 x 49.2 x 24.4 cm
• Weight: 11.6 kg

Specs:

• Channels: 1
• Effect Processor: no
• Power: 1000 W
• Equipment: 1 x 10
• Amplification: Solid State
• Amp Type: E-Guitar Combo
• Headphone Out: no
• digital modelling: no
• Type: Amps
• Theme: Guitars and Basses
