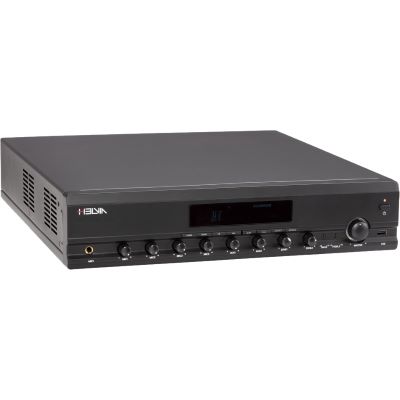

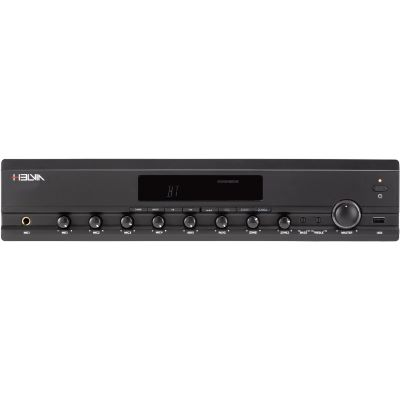

Helvia HCMA-3502 PLAY

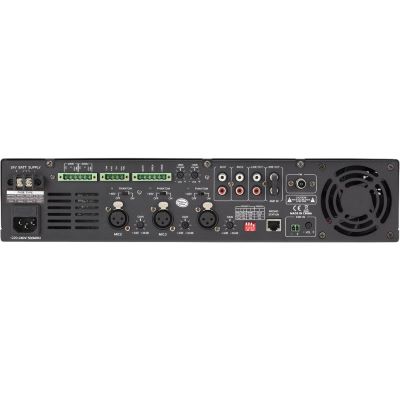

The HCMA PLAY series offers integrated 2-zone sound systems, with power from 250W up to 350W plus USB audio player, Bluetooth transmission, FM radio and "remote paging" of the two zones. The user-friendly multifunction display facilitates operation by any user. Rear connections include EMC input, mute, siren and gong signals, 70V, 100V and low impedance outputs. The microphones can be phantom powered and offer volume control and respective priority switching. The included 19" brackets allow for easy rack mounting if needed.

Features:

• Helvia - HCMA-3502 PLAY
• User-friendly LCD display
• 70V/100V & low impedance outputs
• Power RMS 350W
• Two integrated 100V zone outputs
• Microphone 1 with 1⁄4" jack on front panel
• Microphone 2-4 via XLR input, +48V phantom power, independently adjustable
• 4 audio signals: AUX, BT audio streaming, FM radio, USB player via remote control - Adjustable volume for microphones 1-4 and aux inputs 1-2
• Remote paging station (HCMA-PLAY MIC), optional
• Adjustable gong/siren/mute function
• Priority: EMC/MIC1/Remote Microphone
• Protection circuits: Overload, clipping, short-circuit and temperature overload.
• Included 19" rack mounting brackets
• DC24V power supply
• Frequency response: 60Hz - 16kHz ±3dB
• THD: ≤1% @ 1kHz
• Phantom power supply: +48V ±2V
• Dimensions: 420x403x88mm
• Weight: 12.7kg

Specs:

• Type: Amps
• Theme: PA and Sonication
