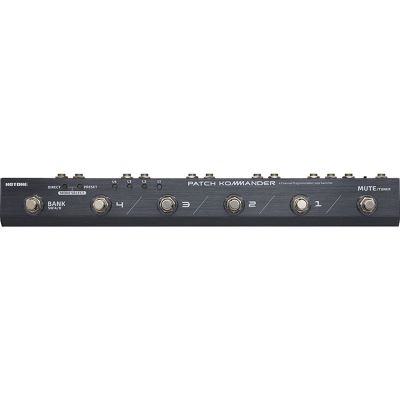

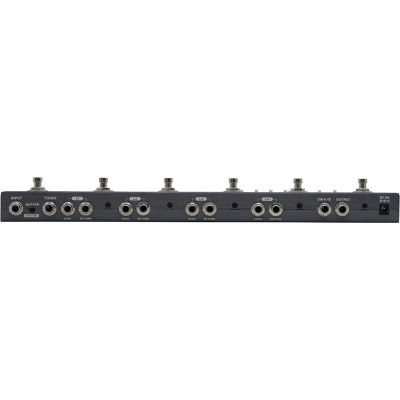

Hotone Patch Kommander

The Hotone Patch Kommander is a programmable 4-channel control loop switch. It has a compact size and a robust aluminium housing. Four true bypass loops guarantee an unaltered signal, an integrated input buffer saves treble and harmonics, and an ultra-intuitive control panel frees you from complex, tedious patch programming.

Features:

• Compact size, robust aluminium housing
• 4 independent, rule-based True Bypass relay-based audio loops
• Switchable high quality input buffer to avoid high frequency losses
• Mute/Tuning function with independent tuner output
• SW A/B function for switching amplifier channels
• 2 switching modes: direct mode for instant access; preset mode with 12 programmable presets for different combinations
• Low switching noise
• 9VDC power supply unit

Specs:

• Color: Black
• Number of buttons: 6
• LED Display: yes
• Type: Foot Switch
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (1.18 MB)
