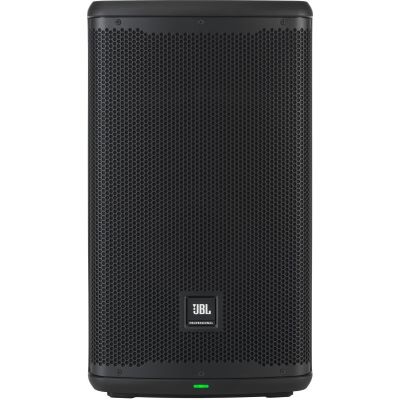

JBL EON710

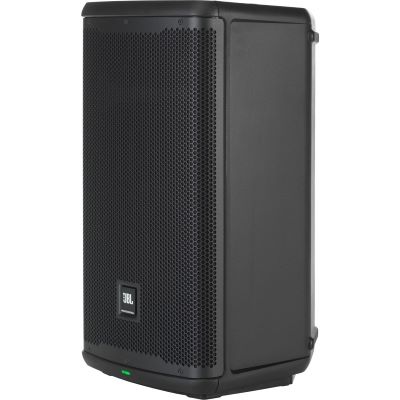

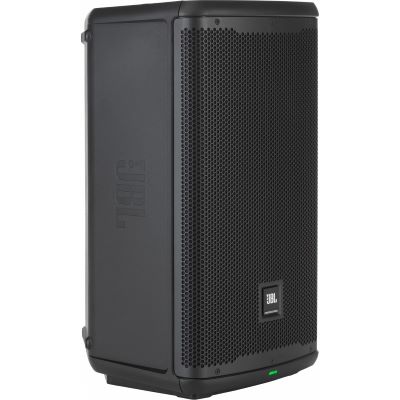

The EON710 is versatile active PA speaker from JBL. The woofer, horn, compression driver and cabinet have been completely redesigned. Two integrated digital amplifiers provide a combined 1,300 watts for a maximum sound pressure of 125 dB.

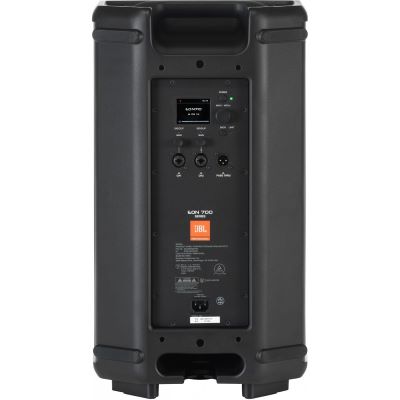

Two signal sources can be connected to the speaker. The inputs are each switchable from mic to line signal. The overall signal is also available at the XLR output. The DSP offers dbx dynamic processing with automatic feedback suppression, 8 band EQ and delay time for different applications and signals. All settings can be made directly on the control panel via the backlit LCD display or controlled from a smartphone or tablet via the JBL Pro Connect app. Music can be streamed directly from the smartphone to the EON710 via Bluetooh 5.0.

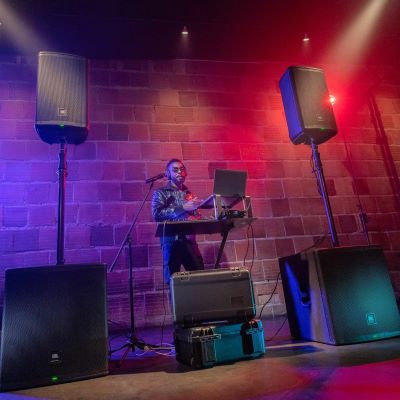

The compact multifunction enclosure has four M10 hanging points and an optional mounting bracket, so the EON710 can be stood, hung or used as a stage monitor. The ergonomic handles and light weight make set-up, take-down and transport a breeze. The JBL EON710 is ideal for presentations, speech reinforcement, and live events. Add an optional subwoofer and DJs, musicians, and installers get a high-quality PA system.

Features:

• 10" woofer, neodymium tweeter
• Power: 1,300 W peak (650 W cont)
• Frequency response: 52 Hz - 20 kHz (-10 dB); 65 Hz - 20 kHz (-3 dB)
• Maximum sound pressure: 125 dB (peak)
• Dispersion angle: 110° H x 60° V
• Audio inputs/outputs: 2 XLR combo, 1 XLR passthrough
• Dimensions: 587 x 332 x 300 mm (HxWxD)
• Weight: 11,9 kg
• Digital Class-D amplifier

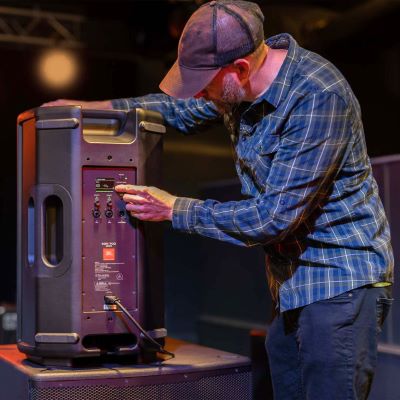

• Two switchable Mic/Line inputs with combo jacks (XLR/jack)
• 3-channel digital mixer
• DSP with dbx dynamic processing

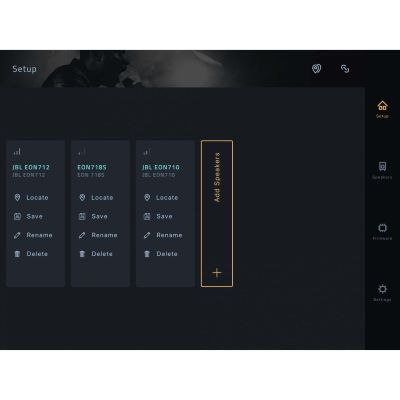

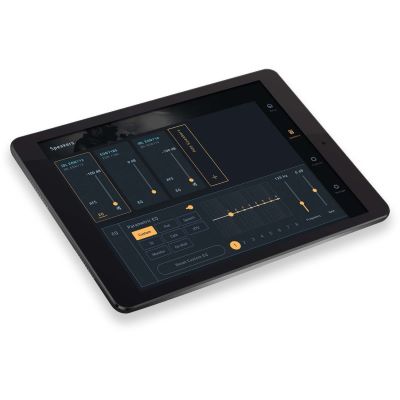

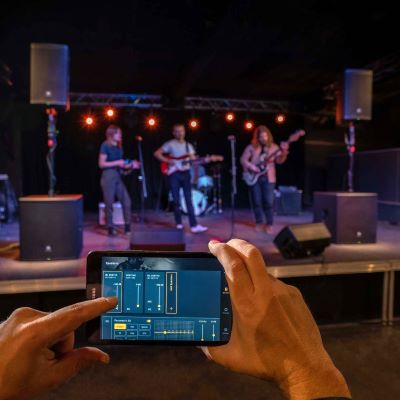

• Control via controls or via app JBL Pro Connect
• Bluetooth 5.0 audio streaming
• Rugged and lightweight enclosure
• High-stand flange

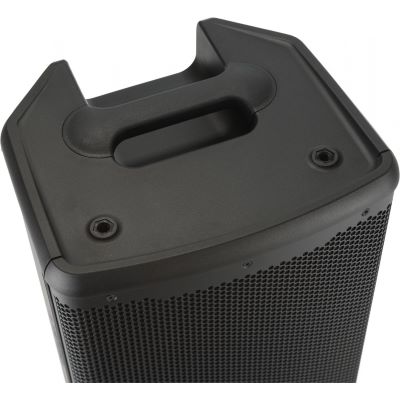

• Four M10 suspension points

Specs:

• Power: 1300 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Number of channels: 3
• Set Offer: no
• Bluetooth: Yes
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (3.05 MB)
