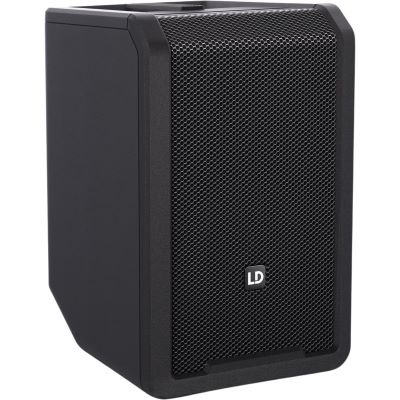

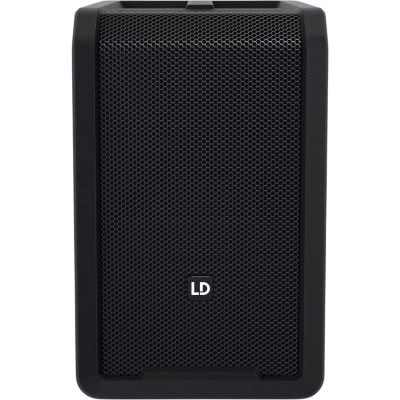

LD Systems ANNY 8 PA-Lautsprecher with Akku und Mixer

The ANNY® 8 is a portable Bluetooth® PA speaker that stands out for its versatility and ease of use. With an 8" woofer and a 1" tweeter, this active 2-way full-range speaker offers clear and distortion-free sound, even at maximum volume, thanks to DynX® DSP technology (Gen. 2).

With an integrated 5-channel mixer, 3-band EQ and 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT), the ANNY® 8 is perfect for a wide range of applications. The speaker has two microphone/line combo inputs and a stereo channel with 3.5mm jack or RCA inputs, offering a wide range of connection options. The priority/ducking function emphasizes the microphone signal while the music is automatically turned down.

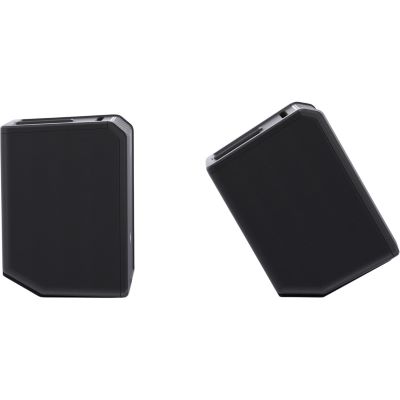

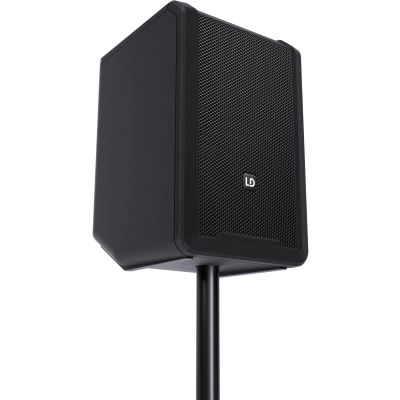

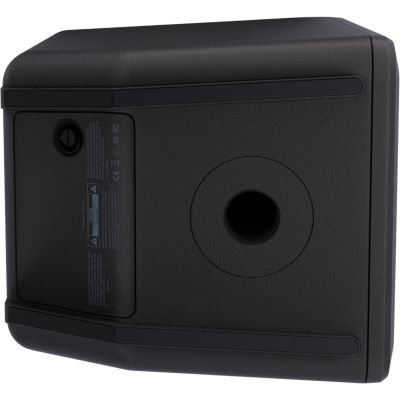

The tilt-back housing enables optimum sound dispersion and can be used for monitor operation. The ANNY® 8 also offers a 35 mm flange for mounting on a speaker stand.

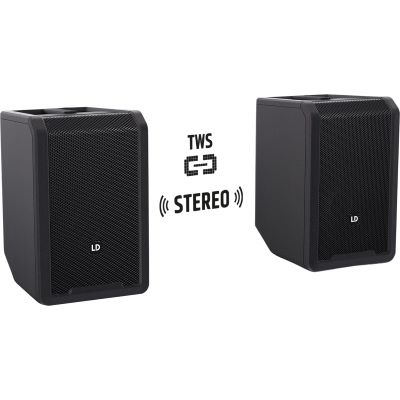

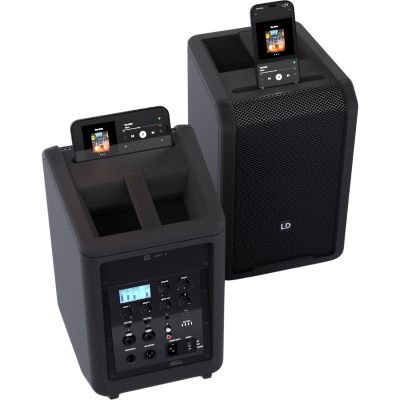

For use in any environment, the speaker can also be connected via True Wireless Stereo (TWS) to pair two ANNY® 8 speakers for an immersive stereo sound experience. In addition, the USB-C port can be used to charge tablets or smartphones.

With its compact design, long battery life and high flexibility, the ANNY® 8 is the ideal solution for events, parties and more.

Features:

• Product type: Battery-powered PA speakers
• Type: Active
• Color: Stage Black
• System power (RMS): 80 W
• System power (Peak): 160 W
• Max. SPL Average (Sine burst): 110 dB
• Max. SPL Peak (Sine burst): 117 dB
• Frequency response (-10dB): 53 - 20000 Hz
• Crossover frequency: 1800 Hz
• Beam angle (H x V): 120° x 60 °
• Dimensions: Width 249 mm, depth 282 mm, height 390 mm
• Weight: 8.8 kg
• Housing type: Bass reflex
• Housing material: ABS plastic

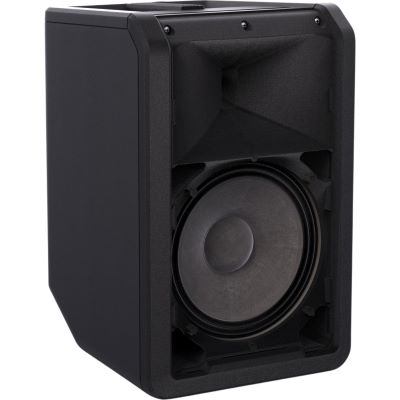

• Woofer size: 8" (203 mm)
• Magnet woofer: Ferrite
• Woofer voice coil: 1.5" (38 mm)
• Tweeter size: 1" (25 mm)
• Magnet tweeter: ferrite
• Tweeter voice coil: 1" (25 mm)
• Amplifier module (integrated): Class D
• Protection circuits: Short circuit, overheating
• Ambient temperature: 0°C - 40 °C
• Relative humidity: 0 - 80% (non-condensing)
• Fuse: T2 AL 250V

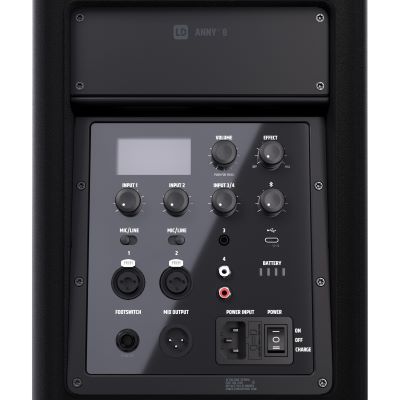

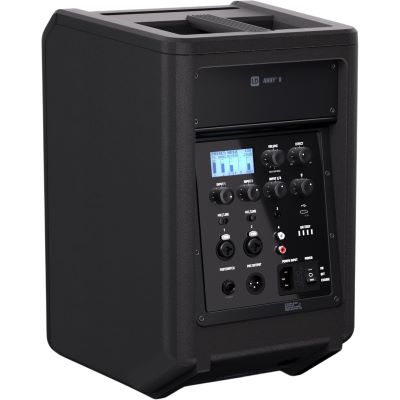

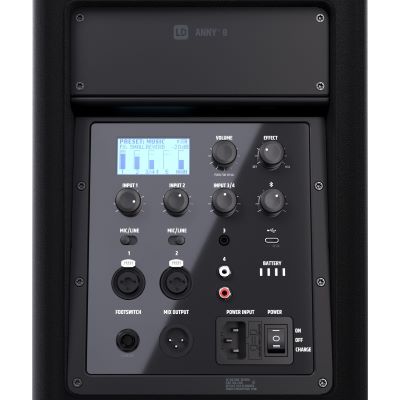

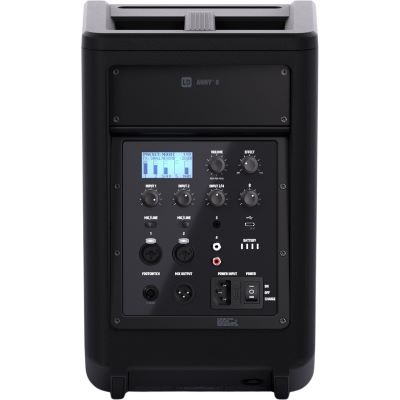

• Controls: Effect, input 1 volume, input 1 microphone/line switch, input 2 volume, input 2 mic/line switch, input 3+4 volume, input 5+6 (Bluetooth) volume, main volume/menu navigation, power
• Display elements: Battery status, multifunction LC display
• Mains connection: IEC
• Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
• Power consumption: 150 W
• Physical inputs: 5
• Physical input connections: 2 x 6.3 mm / XLR combo, 2 x RCA, 3.5 mm jack
• Mix output: 1
• Mix output connection: XLR male
• Bluetooth standard: 5.0
• Bluetooth audio decoder: AAC, SBC

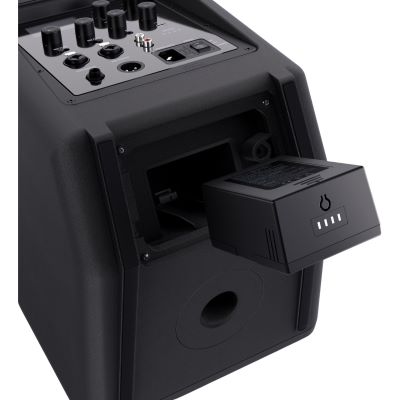

• Battery: Rechargeable batteries, 14.8V / 5Ah
• Battery technology: Li-Ion battery
• Battery indicator: 4-segment LED
• Battery life music (MUSIC, full volume): 3.5 hours
• Battery life music (ECO, medium volume): 11 hours
• Charging time (80%, without signal): 3 hours
• Charging time (full charge): 5 hours

Specs:

• Power: 160 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 8
• Tweeter: 1 x 1
• Number of channels: 4
• Set Offer: no
• Bluetooth: Yes
• Type: Full Range Speaker
• Theme: PA and Sonication
