LD Systems HPA 1 Kopfhörerverstärker

Name: LD Systems HPA 1 Kopfhörerverstärker
Brand: LD Systems
SKU: 248276
Price: 89.00 EUR
Availability: OutOfStock

LD Systems HPA 1 Kopfhörerverstärker Thumbnail 1

LD Systems HPA 1 Kopfhörerverstärker Thumbnail 2

LD Systems HPA 1 Kopfhörerverstärker Thumbnail 3

LD Systems HPA 1 Kopfhörerverstärker Thumbnail 4

LD Systems HPA 1 Kopfhörerverstärker Thumbnail 5

EUR 89.00

incl. VAT incl.

will be ordered for you
Delivery time: 3 ‐ 10 business days (Germany)

Create individual set and save money

Check availability in store:

Dresden: currently unavailable
Leipzig Connewitz: currently unavailable
Pick Up Point Oschatz: currently unavailable

Brand:

LD Systems

Model:

248276

Shipping Weight:

0.30 kg

Shipped via:

Package

Unit:

piece

Secure Shopping:

Trusted Shops certified
Fast delivery times
1 month right of withdrawal
Buyer protection
Secure SSL data encryption

Share with friends:

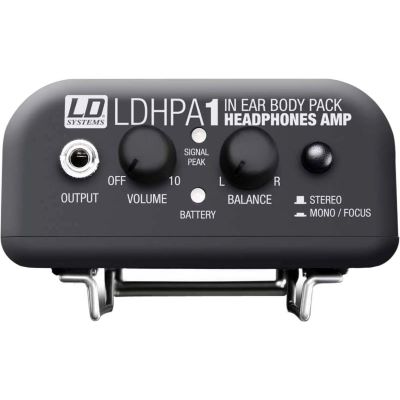

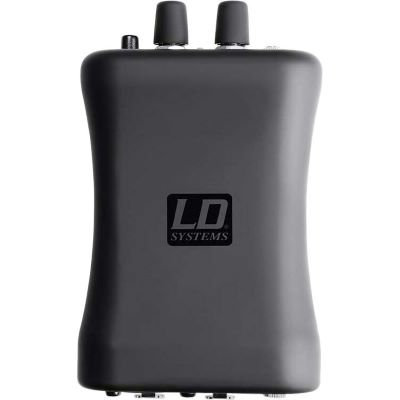

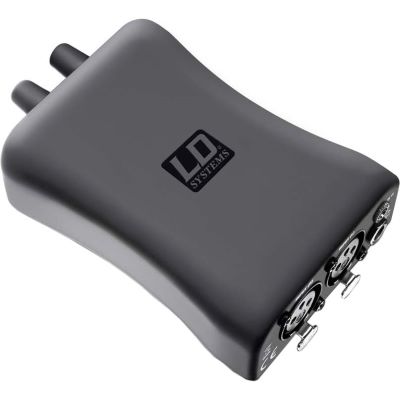

LD Systems HPA 1 Kopfhörerverstärker Product Details

The LD Systems HPA 1 is a 1-channel stereo headphone amplifier and is ideally suited as a connection solution for wired in-ear monitoring or for applications with high output power in studio, stage and home recording.

Features:

Versatile headphone amplifier
1 channel
High output power for stage, studio and home recording
Connection solution for wired in-ear monitoring
Ergonomically shaped, soft-touch surface and belt clip included
Locking XLR connector
Protection against too high input level
Full-fledged limiter
aux input

Technical data:

Product Type: Headphone Amplifier
Type: 1-Channel Stereo

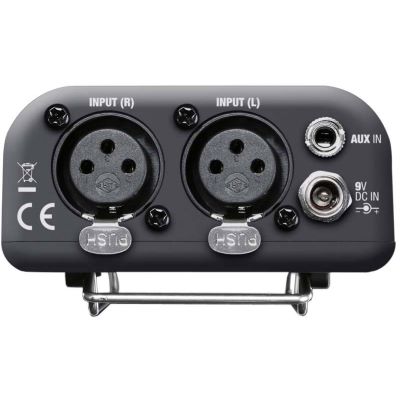

Inputs: Main Input (Stereo), 1 x Aux In (Stereo)
Input connections: XLR-F (L + R input, balanced), 3.5 mm stereo jack (Aux In)
Input impedance: 6kOhm (XLR In), 10 kOhm (3.5mm jack)
Input sensitivity: 3dBu (XLR In), -6dBV (3.5mm jack)
Max. Input level: 16dBu (XLR In), 7dBV (3.5mm jack)
Protection circuits: Audio Limiter, Max. Input leveling, Power OFF -Mute relay
Headphone outputs: 1
Headphone output connectors: 3.5 mm stereo jack
Output power: 2x 1.65Vrms / 1%THD 33ohm Load
Minimum connected impedance per channel: 16 Ohm
Frequency response: 20 Hz - 40 kHz
THD 1kHz Sine: 0.04%
Controls: Power/Volume, Balance L/R, Stereo/Mono (Focus) switch,
Display elements: Signal (Green) / Peak (Yellow), Battery (Low: Red) / Power LED (Power ON: Green)
Power supply: 9VDC block battery, DC plug
Operating voltage: 9VDC
Current consumption: Nom. 70mA / Max. 150mA
Housing material: Plastic
Housing surface: Soft-Touch
Housing colour: black
Dimensions: 80 x 43 x 133 mm (WxHxD)
Weight: 165 g

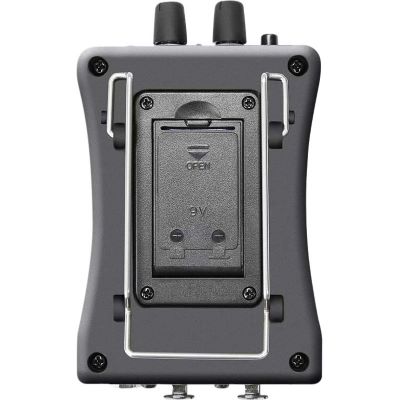

Accessories (included): Belt clip
