LD Systems PPA 2 Phono-Preamplifier and equalizer

The PPA 2 from LD Systems is a compact phono preamplifier in analog design that equalizes the low output signal of conventional turntables to RIAA standards. It enables connection to devices without phono input, e. g. mixers, PA power amplifiers or sound cards.

Features:

• Ultra-compact phono preamplifier in analog technology
• Correct RIAA equalization
• RCA inputs and outputs
• 6.35 mm stereo headphone output
• Robust metal housing

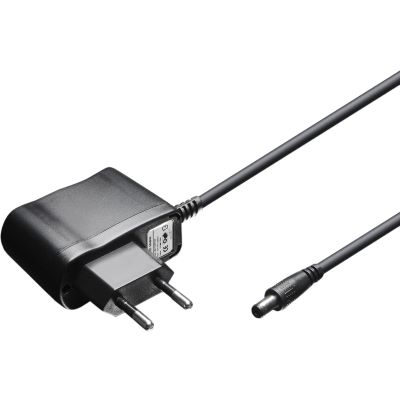

• 12V power adapter included in delivery

Technical Specificatons:

• Version: Stereo Input / Stereo Output
• Frequency response: RIAA Characteristic curve Hz
• Signal-to-noise ratio: 70 dB
• Distortion factor (THD): < 0.05%.
• Channel crosstalk: -75 dB
• Input level Max.: -23.5 dBV
• Output level Max. (Filter) (V): +10 dBV
• Input impedance (kOhm): 47 kOhm
• Output impedance: 50 Ohm
• Display elements: Power LED
• Inputs: 1 x Phono Stereo
• Input connections: 2 x cinch, earth terminal
• Line Outputs: Headphones, Line Stereo
• Line output connectors: 2 x cinch, 6.3 mm stereo jacks
• Power supply: external power supply
• Operating voltage: 12 V DC
• Current consumption: 0.15 A
• Width: 104 mm
• Height: 36 mm
• Depth: 67 mm
• Weight: 0,28 kg

Specs:

• Type: Accessories
• Theme: DJ Equipment

Instruction manual / Safety instructions:

• Manual (677.56 KB)
