LD Systems ROAD BUDDY 10 HBH B5 2 incl. Handmikro+Headset

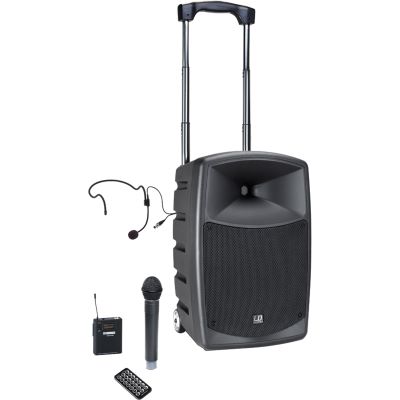

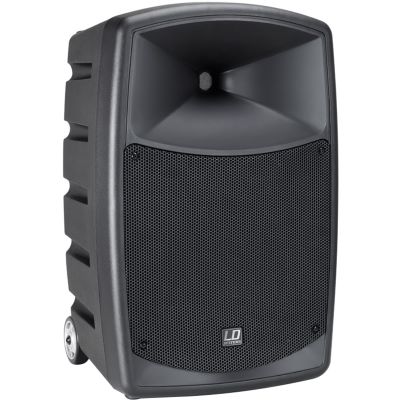

LD Systems ROAD BUDDY 10 HHD 2 B5 - The LD Systems Roadbuddy 10 is the ideal solution for voice and music transmission on the road. The 2-way speaker with a 10" custom woofer and 1" compression driver and 1" compression driver can be operated for up to 8 hours with its rechargeable battery and is powered by a Class D power amplifier with a highly efficient switching power supply and 480 watts peak power.

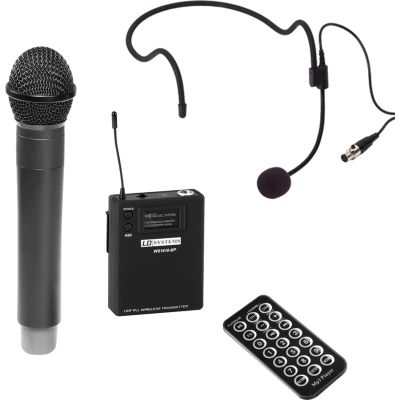

The Roadbuddy relies entirely on wireless transmission: it has a UHF radio receiver that operates in the 584 -607 MHz range. The on-board Bluetooth player with backlit multifunctional display, equalizer, USB port and SD card slot supports .mp3, .WMA and .WAV formats. Two handheld microphones with 10 mW transmission power (LDRBUD10HHD2B5), two headsets with beltpack (LDRBUD10BPH2B5) or alternatively a handheld microphone and a headset with beltpack (LDRBUD10HBH2B5) as well as the player's IR remote control are included in the scope of delivery.

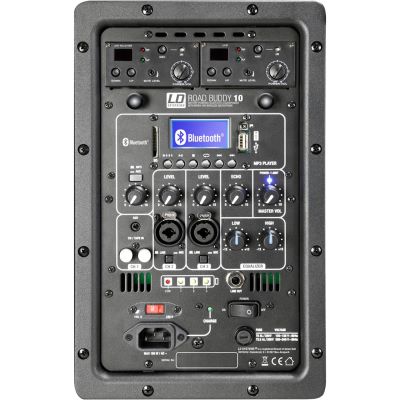

For wired devices, the Roadbuddy has two channels with combo sockets and individual volume controls that can be switched for microphone and line level, a stereo input via RCA (cinch) sockets (mono summed) and a 3.5 mm aux input. Controls for treble, bass, echo and a master volume complete the control panel.

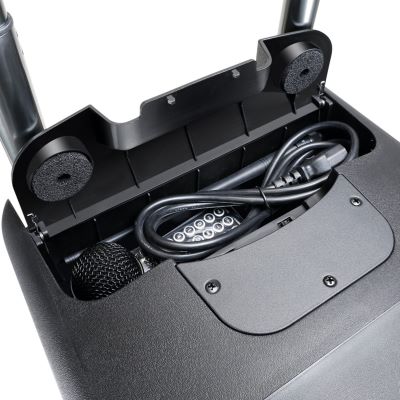

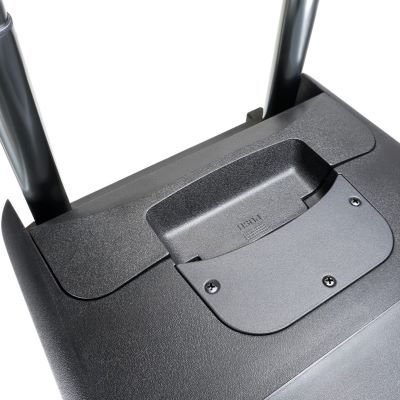

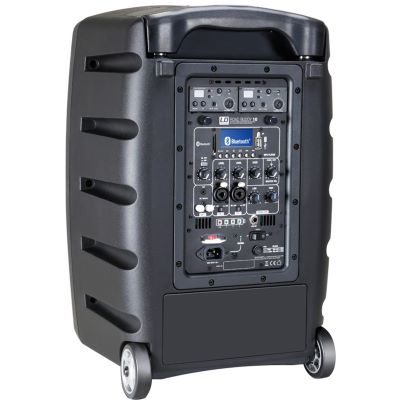

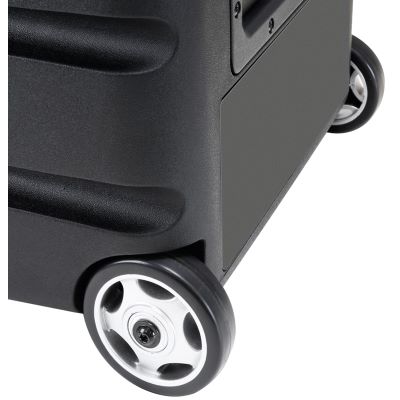

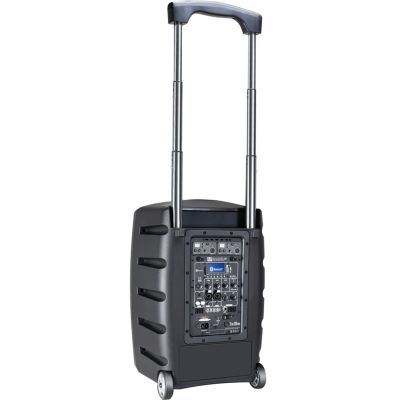

The LD Systems Roadbuddy is easy to transport thanks to integrated castors and a pull-out handle. There is a practical storage compartment on the top for up to two handheld transmitter microphones. A 35 mm stand mount is integrated into the plastic housing of this extremely lightweight device.

Features:

• Complete battery-powered loudspeaker solution
• Integrated 584 - 607 MHz radio receiver
• With handheld transmitter and headset
• Bluetooth player with USB port and SD card slot
• Class D power amplifier with 480 watts peak power
• 2 combo sockets as microphone or line inputs
• 3.5 mm aux input
• Master section with 2-band EQ
• Integrated castors, pull-out handle and 35 mm stand mount
• Includes 2 wireless microphones and IR remote control

Technical data

• Product type: Battery-operated PA speakers
• Additional features: IR remote control for media player, stand flange 36 mm, transport wheels, carrying handle, pull-out handle
• Size woofer: 10"
• Woofer size: 254mm
• Magnet woofer: Ferrite
• Woofer brand: Custom Made
• HF driver size: 1"
• HF driver size: 25.4mm
• HF driver magnet: Ferrite
• HF driver brand: Custom Made
• Amplifier: Class D
• Power (RMS): 120W
• Power (Peak): 480W
• Frequency response: 55 - 18000Hz
• SPL (1 W/1 m): 96dB
• Max. SPL: 115dB
• Protection circuits: Short circuit, overheating, overvoltage
• Controls: Overall volume, Mic 1 level, Low, Mic 2 level, CD / Tape IN level, AUX / MP3 switch, High, Echo
• Display elements: Charging / battery status, power
• Power supply: Switching power supply
• Operating voltage: 100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz
• Rechargeable batteries: 12 V / 5 Ah
• Housing material: Polypropylene
• Housing type: Bass reflex
• Dimensions: 415mm x 525mm x 328mm (WxHxD)
• Weight: 17.2kg

Technical data - Media player:

• Supported media: Bluetooth, USB stick, SD card
• supported formats: MP3 file, WAV file, WMA file
• Media player controls: Stop, Repeat, Next track, Equalizer, Previous track, Play / Pause, Mode (Menu / Bluetooth /SD / USB)
• Media player display elements: illuminated multifunction LC display
• Line inputs: 1
• Line input connections: 3.5 mm jack, 2 x XLR, 2 x RCA, 6.3 mm jack
• Mic inputs: 2
• Mic input connections: 2 x XLR, 6.3 mm jack

Technical data - Wireless Unit

• Radio frequency range: 584 - 607MHz
• Modulation type: FM
• Channels: 16
• Wireless unit frequency response: 50 - 17000Hz
• Wireless Unit controls: Power / Volume, Value Down, Value Up, Mute-Level (squelch), ASC
• Wireless unit display elements: AF (LED), LED display, RF (LED)
• Wireless unit connections: nTNC for receiver antenna
• RF output Transmission power: 10mW
• Hand-held microphone Weight: 0.285kg
• Handheld microphone material: Aluminum

Specs:

• Power: 120 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Number of channels: 4
• Set Offer: no
• Bluetooth: Yes
• Type: PA System
• Theme: PA and Sonication
