LD Systems ROAD BUDDY 10 HS

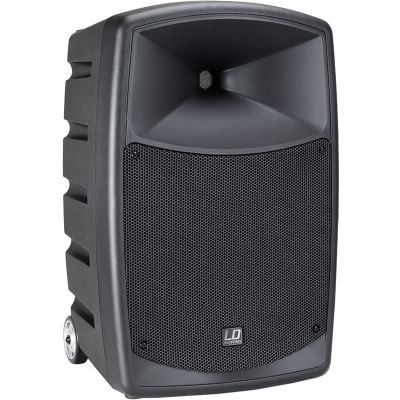

LD Systems ROAD BUDDY 10 HS - The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

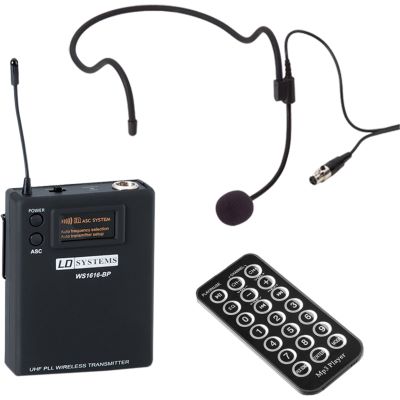

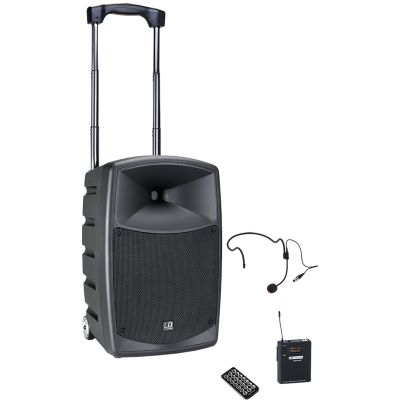

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.

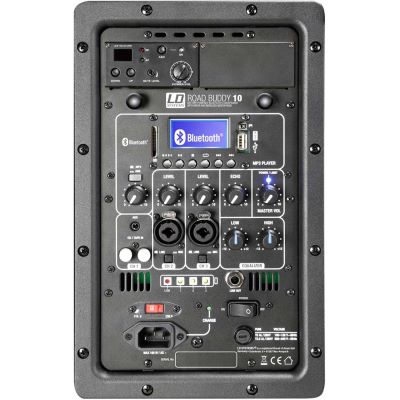

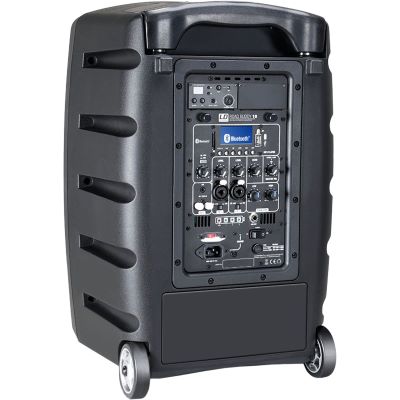

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

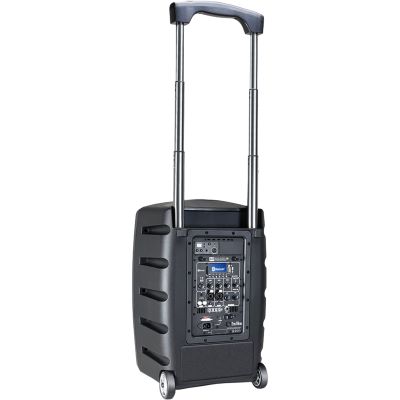

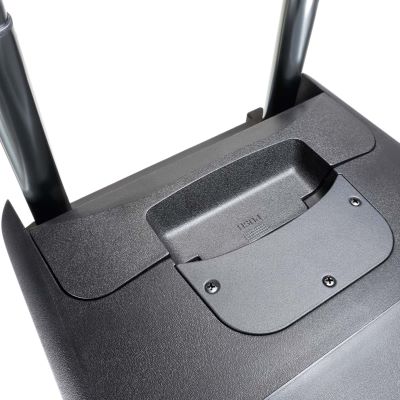

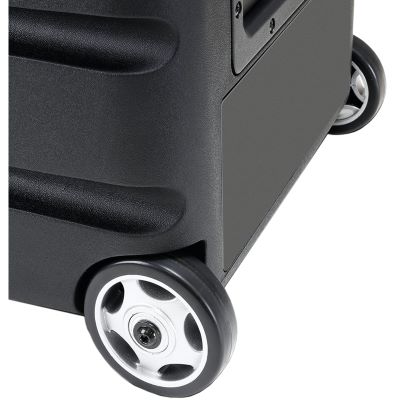

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

Features:

• Battery powered speaker solution
• Integrated radio receiver 863 - 865 MHz for license-free operation
• Bluetooth player with USB port and SD card slot
• Class D power amplifier with 480 watts of peak power
• 2 combo sockets for microphone or line inputs
• 3.5 mm Aux input
• Master section with 2-band EQ
• Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
• Wireless microphone and IR-remote control included

Technical Specificatons:

• Product type: Battery-powered PA speaker
• Low/mid driver dimensions: 10"
• Woofer size: 254mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1"
• HF Driver Size: 25.4mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• Amplifier: Class D
• RMS: 120W
• Peak power: 480W
• Frequency response: 55 - 18000Hz
• SPL (1W/1m): 96dB
• Max. SPL: 115dB
• Protection circuits: overload protection, short circuit, over-current
• Controls: Master Volume, AUX / MP3 switch, Mic 1 Level, low, Echo, high, CD / Tape IN Level, Mic 2 Level
• Indicators: Power, Charge/battery status
Media player
• Supported media: Bluetooth, USB stick, SD Card
• Supported formats: MP3 file, WMA file, WAV-CD
• Media player controls: Next Track, Previous Track, Stop, Play / Pause, Repeat, equalizer, Mode (Menu / Bluetooth /SD / USB)
• Media player display elements: Lighted multifunctional LC display
• Line inputs: 1
• Line input connectors: 2 x XLR, 3.5 mm jack, 6.3 mm jack, 2 x RCA
• Mic inputs: 2, 2 x XLR, 6.3 mm jack
Wireless Unit
• Transmission frequency range: 863 - 865MHz
• Modulation Type: FM
• Channels: 16
• Frequency Response Wireless Unit: 50 - 17000lx @ 1mHz
• Controllers Wireless Unit: Value Down, ASC, Mute Level (Squelch), Value Up, Power / Volume
• Indicators Wireless Unit: RF (LED), AF (LED), LED Display
• Connections Wireless Unit: nTNC for receiver antenna
• RF Transmitter Power Output: 10mW
• Bodypack weight: 0.08kg
• Bodypack material: ABS plastic
• Operating voltage: Switching power supply, 220 V - 240 V AC / 50 Hz, 100 V - 120 V / 60 Hz
• Rechargeable batteries: 12 V / 5 Ah
• Cabinet material: polypropylene
• Cabinet construction: vented
• Width: 415mm
• Height: 525mm
• Depth: 328mm
• Weight: 16,5kg
• Other features: extendable handle, Transport casters, Stand mount 36 mm, transport handle, IR Remote for Media Player

Specs:

• Power: 480 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Number of channels: 3
• Set Offer: no
• Bluetooth: Yes
• Type: Full Range Speaker
• Theme: PA and Sonication
