Professional monitor sound for the stage: The LD Systems U305 IEM in-ear monitoring system

Reliable monitoring is essential for artists on stage - and this is exactly where the LD Systems U305 IEM In-Ear Monitoring System - 584 - 608 MHz comes in. Developed in Germany, this wireless monitoring set combines intuitive operation, professional sound quality and maximum reliability. Whether on small club stages, large festival settings or in the studio: with this system you always have your mix perfectly in your ears - and retain full freedom of movement during performances.

Thanks to its modern design and stable radio transmission in the 584 - 608 MHz range, the U305 IEM is ideal for use in bands, theaters or event technology. Up to six of these systems can be operated in parallel without having to worry about interference. With its transparent frequency response from 50 Hz to 16 kHz, the system offers a balanced sound reproduction that ensures no details are lost in the monitoring mix. The ergonomic receiver and the well thought-out transmitter concept enable smooth operation - ideal for ambitious beginners and professionals.

LD Systems - audio technology with precision and passion

LD Systems has stood for innovative audio solutions "Made in Germany" for years. The manufacturer specializes in developing professional equipment for live and studio environments that meets the highest standards of sound quality and practicality. With the LD Systems U305 IEM in-ear monitoring system, the company presents another solution that impresses with its quality, reliability and user-friendliness.

The LD Systems development team places particular emphasis on functionality and ease of use - a philosophy that is reflected in the design and technology of the U305 IEM monitoring system. The result is a well thought-out overall concept that provides musicians with a safe and flexible in-ear monitoring experience. LD Systems combines modern technology with robust construction and elegant design - perfect for professional use on tour, in the studio or at events.

Technical details: precision meets versatility

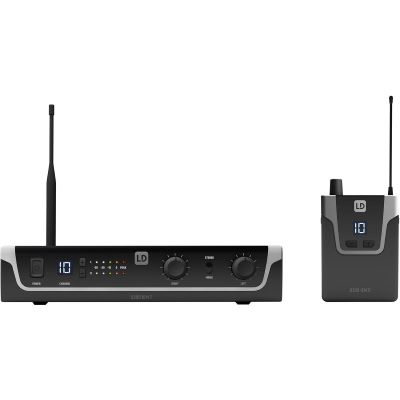

The LD Systems U305 IEM In-Ear Monitoring System - 584 - 608 MHz consists of a powerful transmitter and a compact receiver (bodypack receiver). Both components are specially matched to each other and guarantee stable radio transmission and excellent audio quality. The simple handling and clear displays enable quick set-up and adjustment, even under live conditions.

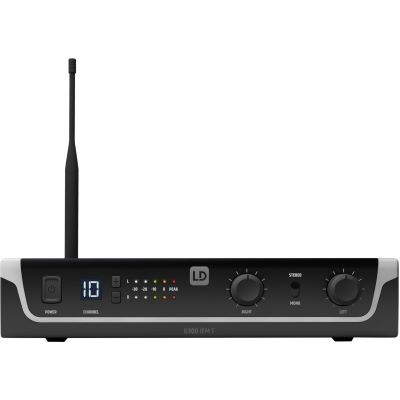

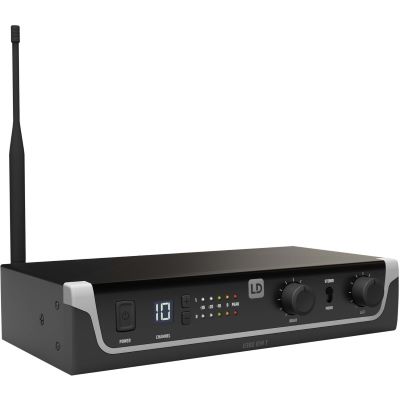

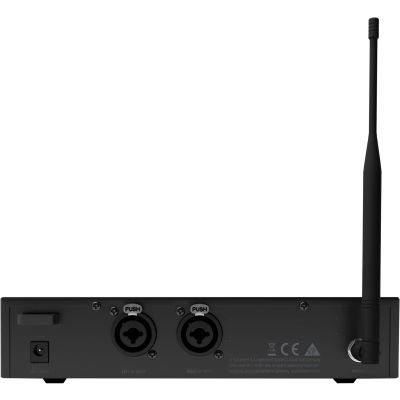

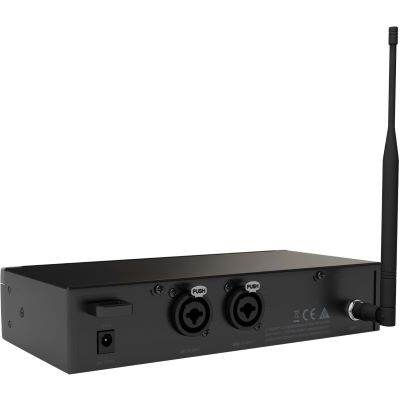

The transmitter offers 12 selectable channels and operates with an RF output power of 10 mW. Signal transmission in the FM range is either mono or stereo. The frequency response is between 50 Hz and 16,000 Hz - ideal for all common instrument and vocal applications. The inputs consist of two combo sockets that accept both balanced XLR and 6.3 mm jack cables. This allows the transmitter to be flexibly integrated into various setups. Thanks to separate controls for the left and right channels, sound engineers always have full control over the monitor mix.

The LCD display clearly shows all relevant settings, while two LED chains visually display the signal levels. The transmitter has a BNC antenna connection and is operated via an external 12 - 18 V DC power supply. With a power consumption of just 1.7 W, energy consumption is low. The supplied 19" rackmount kit allows the transmitter to be integrated into existing rack systems to save space.

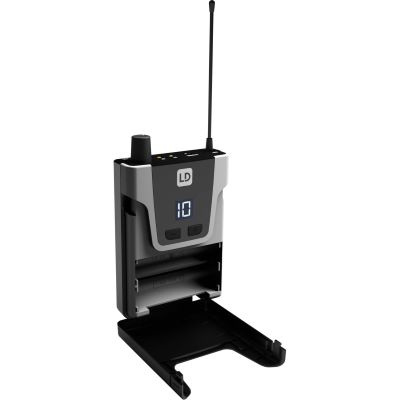

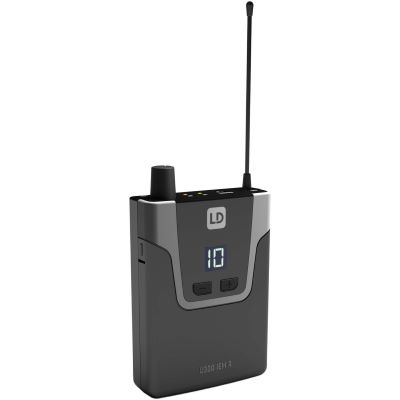

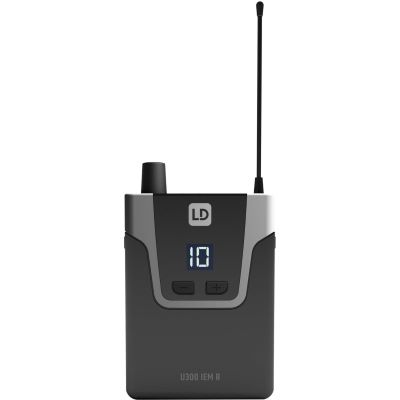

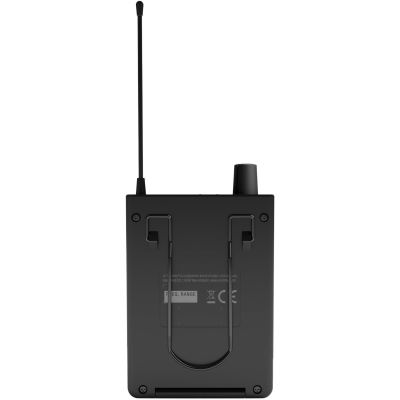

The compact receiver weighs just 85 g and, thanks to its ergonomic design, fits comfortably in the hand or can be worn unobtrusively on a belt. Here too, there are 12 channels to choose from, which can be easily selected using the controls on the side. The frequency response corresponds to that of the transmitter (50 Hz - 16 kHz), which ensures consistent sound transmission. Power is supplied by two AA batteries, which provide a runtime of up to 10 hours. The illuminated LC display provides information on channel selection, RF signal strength and stereo mode. A battery status LED provides an early warning when the battery is about to be changed.

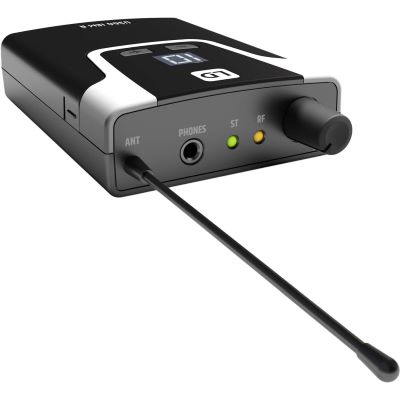

There is a 3.5 mm stereo jack socket on the receiver for connecting any in-ear headphones. The maximum audio output level is 100 mW (at 16 Ohm load), which enables clear signal reproduction even in loud stage situations. A practical volume control allows the level to be individually adjusted directly on the device - ideal for spontaneous changes during the performance.

A reliable companion for anyone who works professionally

The LD Systems U305 IEM In-Ear Monitoring System - 584 - 608 MHz is aimed at musicians who value professional equipment and reliable functionality. The system really comes into its own in live situations where freedom of movement and sound quality are crucial. With its numerous channels, stable transmission frequency and sophisticated operating concept, the U305 IEM can be seamlessly integrated into a wide variety of setups.

The high build quality guarantees a long service life - even on intensive tours or in demanding production environments. Thanks to its ease of use, the system is suitable for both experienced sound engineers and beginners. At the same time, it impresses with its extensive equipment, which is already included in the scope of delivery: In addition to the transmitter and receiver, a power supply unit, a BNC antenna and a practical 19" rackmount kit are included.

In combination with high-quality in-ear headphones, the U305 IEM unfolds its full potential and offers a detailed, interference-free monitoring experience at a professional level. If you are looking for a reliable, flexible and powerful in-ear solution, this system is the right choice.

Features:

• Frequency range: 584 - 608 MHz - ideal for live and studio use
• In-ear monitoring set with transmitter and receiver
• Up to 6 systems can be used simultaneously
• 12 selectable channels for flexible frequency selection
• FM transmission in mono or stereo
• Transmitter with XLR and 6.3 mm jack inputs
• Separate level control for left and right channels
• Receiver with 3.5 mm stereo jack output
• Frequency response: 50 - 16,000 Hz
• Maximum output power receiver: 100 mW
• Distortion factor (THD): transmitter < 0.5 %, receiver 0.25 %
• Transmitter power supply: 12 - 18 V DC
• Receiver power supply: 2 x AA batteries
• Receiver operating time: up to 10 hours
• Includes BNC antenna, power supply unit and 19" rackmount kit
• Lightweight, robust design for professional use

Specs:

• Type: InEar System
• Theme: PA and Sonication
