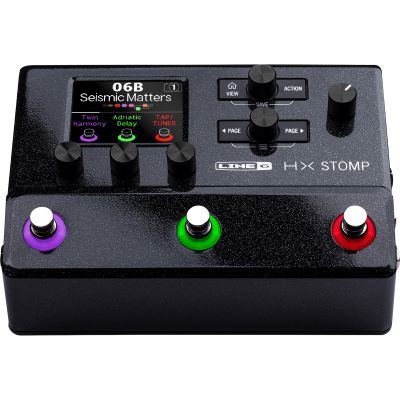

Line6 Helix HX Stomp

HX Stomp™ is a professional-grade guitar processor that delivers the sound of Helix® amps, cabs, and effects in an ultra-compact pedal. Whether you prefer to play through a traditional amp-and-pedal setup, or go direct onstage or in the studio, HX Stomp seamlessly integrates into a variety of environments and applications. Utilizing the same DSP and HX Modeling technology as its bigger Helix brethren, the HX Stomp guitar pedal nonetheless fits easily onto your pedalboard, or even in the pocket of your gig bag. There are over 300 amps, cabs, and effects—including a looper. HX Stomp contains all the same HX models found in Helix family products, as well as the legacy effects library from Line 6® M-Series pedals, and stompbox modelers such as the DL4™. Use it as a "super stompbox," a backup or travel rig, an add-on tone expander when combined with other modelers, an audio interface—or even a complete guitar or bass rig.

Features:

• Ultra-compact size - massive sound capabilities
• Same quality and performance as the flagship Helix
• Can be integrated into a wide range of equipment and applications
• Free HX Edit software for adjust pedal functions

Hardware:

• DSP Processor: SHARC ADSP-21469 at 450MHz
• A/D/A converter: 24-bit/192kHz
• Chassis: cast aluminium alloy
• Capacitive-sensing footswitches with color-coded LCD rings
• LCD Display: 2.4'' diagram 320 x 240 pixels
• Power supply: External DC (including DC-3G)

Connectivity:

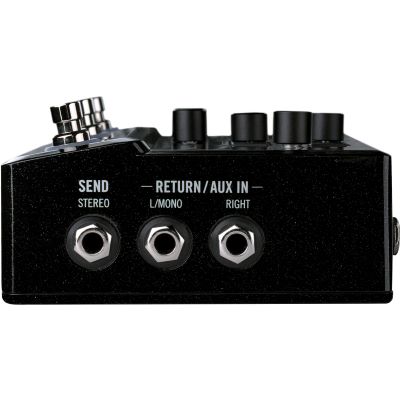

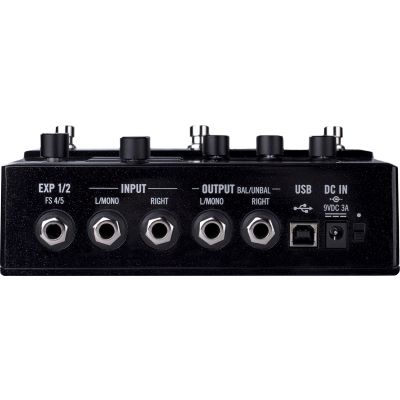

• Inputs: 4 x 1/4'' jack (Main L/R, Return L/R)
• Outputs: 3 x 1/4'' jack (Main L/R, Stereo TRS Send), 1 x headphones
• Expression Pedal: EXP 1/2'' jack (TRS)

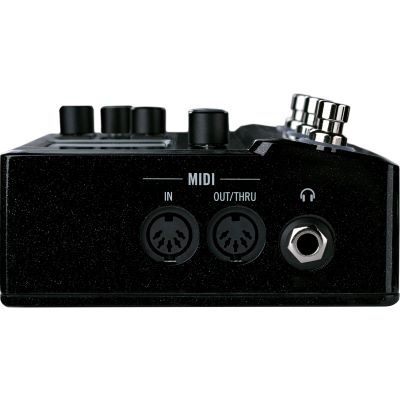

• MIDI In, Out/Thru: Yes
• USB Audio Interface: 8-in, 6-out w/Re-Amping (4 physical inputs and outputs)

Specials:

• Presets: 126 (42 tape x 3 presets)
• Signal Flow Path: 1 or 2 Stereo
• Amplifier models: 74
• Cabs: 37
• Effects: 200 (123 HX, 77 Legacy)
• Impulse Responses (IR): 128x 1024 or 2048-Point Mono
• Looper types: 1 switch Looper
• Looper Memory: 60 Sec Mono, 30 Sec Stereo (Full-Speed)

Foot switch

• Number of foot switches: 3 (+2 via 1/4" TRS socket)
• Foot Switch Modes: Stomp, Scroll, Preset, Snapshot
• Stomp foot switch types: Latching, Momentary

Controls

• Number of controllers: 99 (5 + 94 via IDI CC)
• Adjust the parameters with a snapshot: 64
• Footswitch as controller (switching between min/max values): 8 per footswitch

Specs:

• Color: Black
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses
