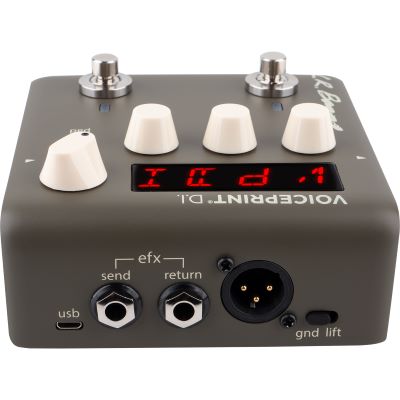

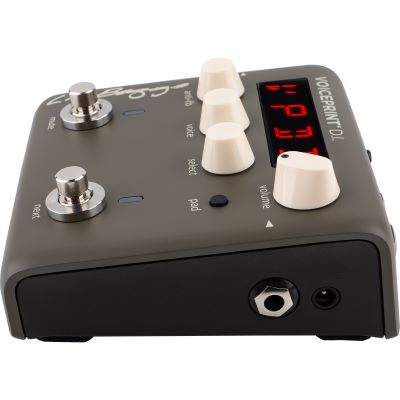

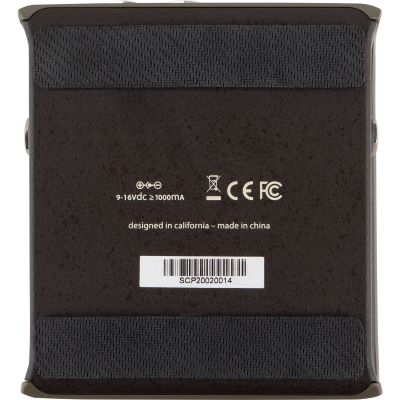

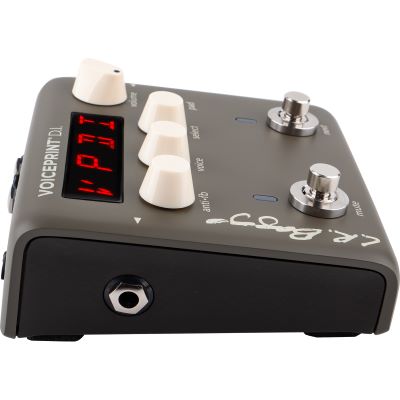

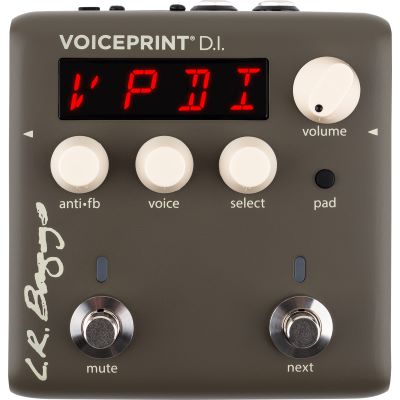

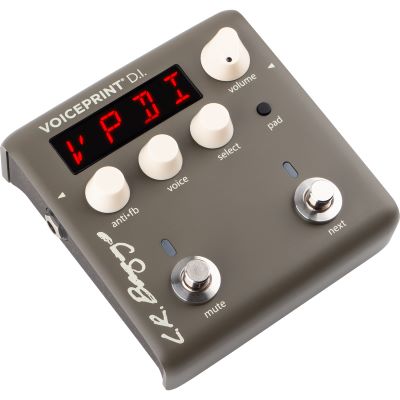

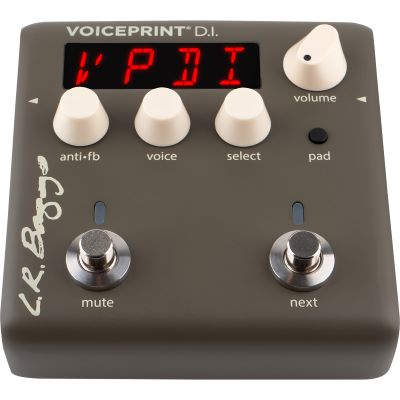

L.R.Baggs Voiceprint DI

The Voiceprint DI from L.R.Baggs is for acoustic guitarists who want to breathe new life into their guitar. The behavior of the played guitar is measured in order to precisely capture the unique to precisely capture the unique timbre and reproduce it as a setting. This means you can make your guitar sound like another guitar or use the Voiceprint DI only as a DI box. Thanks to the great feel of the pedal, you get the best possible operability and a variety of possible uses. The large display lets you follow every step.

With the AcousticLive app and Impulse Response technology, you can now use your iPhone to record a voiceprint of your acoustic guitar, as well as other extras such as a Master EQ and much more.

Features:

• High quality Voiceprint DI from L.R.Baggs
• Input: 6.3 mm jack (mono)
• Output: 6.3 mm jack (unbalanced)
• DI-Out: XLR (balanced)
• EFX send/retrun: 2x 6.3 mm jack (mono)
• Digital USB: 24 Bit/ 96 kHz
• DSP: 32-bit DSP processing
• Bluetooth version: V4.2 to 5.0
• iPhone version: iPhone 6 and higher
• Serial FX loop (separate sockets for send and return)
• Power supply: 9 VDC (at least 500 mA)
• Dimensions (L x W x H): 12.7 x 12.06 x 6.35 cm
• Weight: 567g
• Scope of delivery: Voiceprint DI and power supply unit

Functions:

• Volume: overall volume control
• Voice: personal Voiceprint profile (instruments with pickup signal)
• Anti-fb: Anti-FB profile for feedback control (press briefly for phase reversal)
• Select: 99 instrument presets
• Pad: Adjustment of the input signal
• Mute: Foot switch for bypass
• Next: Footswitch next preset

Specs:

• Color: Grey
• Effect Type: Modeling
• Type: DI Box
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (559.25 KB)
