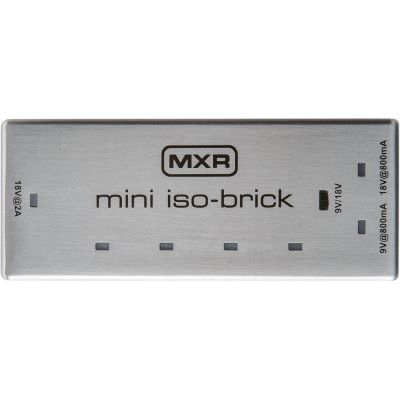

MXR M 239 Mini Iso-Brick

Whether you need a space-saving solution for your downsized travel board or simply need a small, carefully curated selection of tried and tested essentials, this little box has everything you need while taking up less space than a candy bar.

Features:

• MXR - M 239 Mini Iso-Brick
• Max. Total power: 2,000 mA
• Outputs: 5, fully isolated
• Separate status LED per output

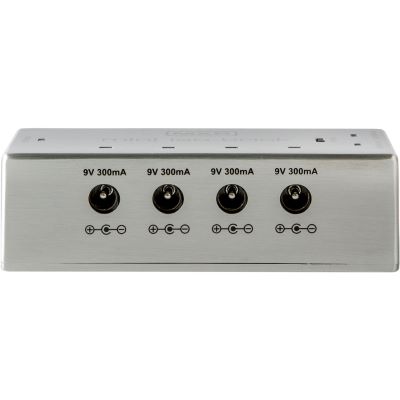

• 4x 9 V outputs, each with 300 mA

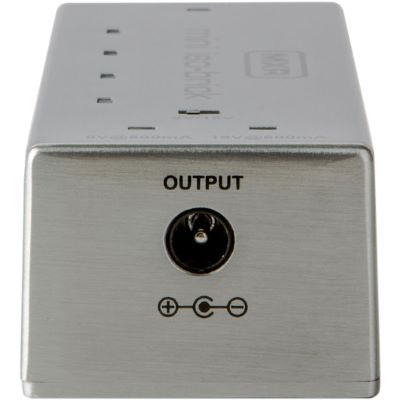

• 1x output with selectable voltage (9V/18V), loadable with 800 mA

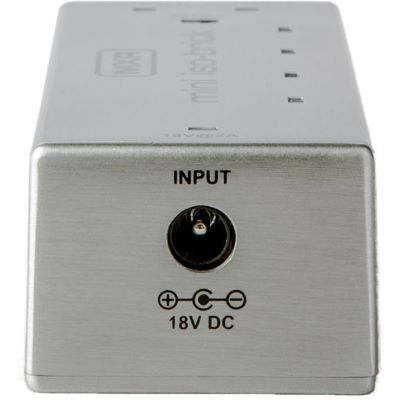

• Input voltage: 18V DC 2,000 mA
• Housing: aluminum

Specs:

• Color: Silver
• Accessoires Type: Misc.
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (290.47 KB)
