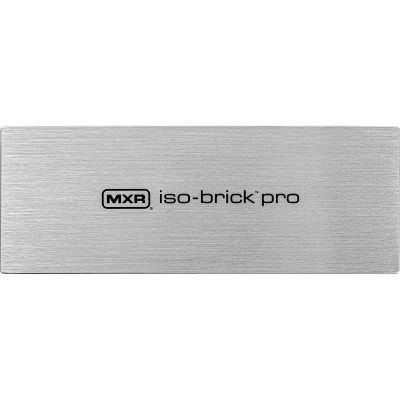

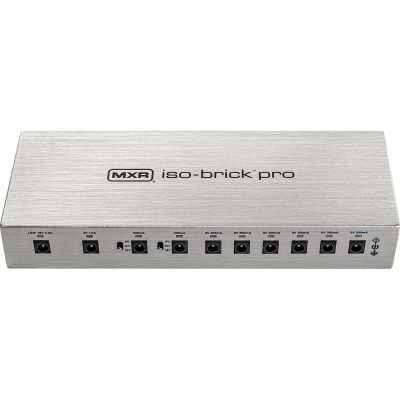

MXR M 242 Iso-Brick Pro

The MXR Iso-Brick Pro Power Supply delivers clean, consistent voltages for a variety of pedal types in a slim format, so you can power your entire board without taking up extra space.

POWERFUL VERSATILITY.

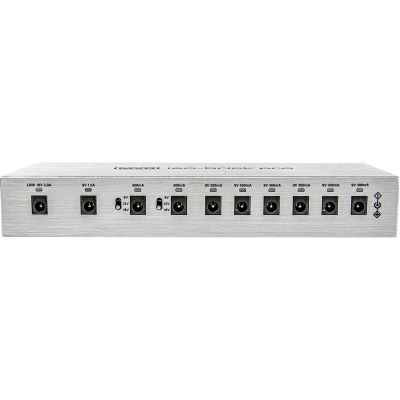

Every single output of the MXR Iso-Brick Pro Power Supply is fully isolated to preserve signal purity and eliminate ambient noise. The unit offers six fixed outputs - two 9V DC at 500mA and four 9V DC at 300mA - and two switchable 9/12/18V DC outputs at 500mA. Even the most demanding multi-effects devices are catered for with a dedicated 9V DC output at 1.5A for devices such as the Line 6 HX effects processor and HX stomp amp/processor.

Want to expand your setup? The MXR Iso-Brick Pro has a dedicated 18V DC link output at 2.0A, so you can seamlessly connect it to a second power source like the MXR Iso-Brick Power Supply or MXR Iso-Brick Mini Power Supply.

ALL ON BOARD.

With its compact, lightweight design, the MXR Iso-Brick Pro Power Supply is the perfect size to fit under most Pedaltrain pedalboards - and it comes with all the mounting brackets and screws you need to install it.

POWER UP WITH CONFIDENCE.

The MXR Iso-Brick Pro Power Supply keeps your effects pedals running smoothly and quietly, and its slim yet sturdy design allows you to keep room for all your favorite pedals - whether they're low-powered analog overdrives or high-output digital multi-effects processors.

Features:

Input

• 100-240V~ 50/60 Hz 1.5A

output

• 42W MAX
• 9V 300mA (x4)
• 9V 500mA (x2)
• 9/12/18V 500mA (x2)
• 9V 1.5A (x1)
• 18V 2.0A (1 x)

Dimensions

• 235 (W) x 88 (D) x 37 (H) mm
• 9-1/4 (W) x 3-7/16 (D) x 1-7/16 (H) inches

Weight

• 0.84 kg / 1.9 lbs.

Specs:

• Color: Grey
• Accessoires Type: Misc.
• Type: Accessories
• Theme: Guitars and Basses
