NUX B-7PSM drahtloses In-Ear-Monitor System
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Dresden: can be picked up immediately
- Leipzig Connewitz: can be picked up immediately
- Pick Up Point Oschatz: can be picked up immediately
NUX B-7PSM drahtloses In-Ear-Monitor System Product Details
The NUX B-7PSM is a wireless in-ear monitoring system with automatic RF environmental scan, 5.8 GHz interference-free transmission frequency and 24 bit / 40 kHz high quality STEREO audio transmission.

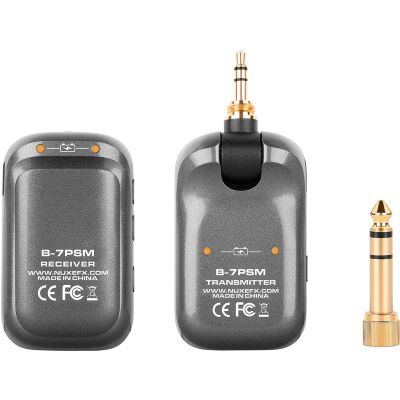

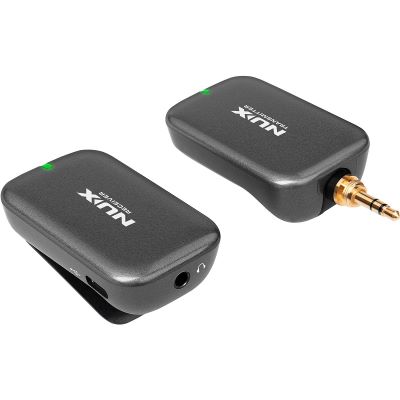

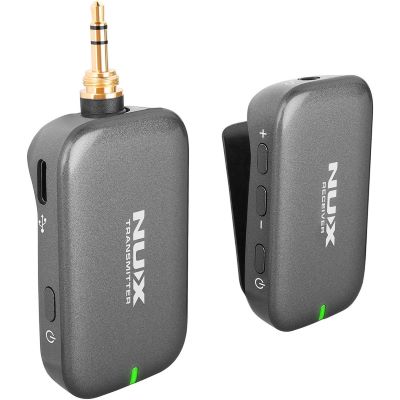

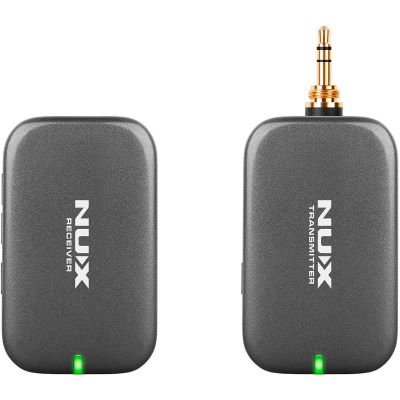

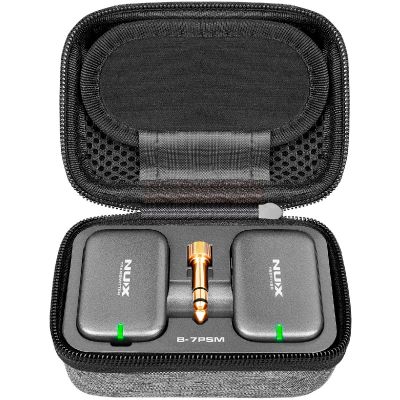

The B-7PSM offers ultra-low latency of less than 5.5 ms and has a range of 100 feet (30 m) when unobstructed between the receiver (RX) and transmitter (TX). (If there are obstacles, the range is about 32 feet (10 m)). It is a super lightweight, wireless, compact system to plug in and take with you. The TX features a 1/8-inch TRS connector (it can be converted to 1/4-inch with the included adapter) and transmits broadcast-quality audio signals to the compact RX via a 5.8 GHz digital transmission. The RX's clip design easily attaches to a shirt, belt or guitar strap. And with our latest automatic frequency hopping technology, the B-7PSM is reliable and stable while you perform on stage.
Features:
- Output volume adjustment: -64 dB ~ 0 dB (0.5 dB step).
- Operating frequency band: 5.8 GHz
- Operating length: < 100 feet (30 m) outdoors without obstacles, < 33 feet (10 m) outdoors with obstacles
- Sampling rate: 24 bit / 40 kHz
- Frequency response: 20 ~ 19 kHz
- Latency: < 5.5 ms
- Dynamic range: 92 dB
- THD+ noise: < 0.6 %@1kHz
- Built-in battery capacity (TX & RX): 450 mAh / 3.7V
- Battery runtime: > 4 hours
- Battery charging time: about 1.5 hours
- Power consumption:TX <90 mA, RX < 45 mA
- TX impedance: 3.5 kΩ
- Maximum input level: 7.6 Vpp (8.6 dBV or 2.7 Vrms)
- RX suggestion phone impedance: 16 ~ 32 Ω
- Maximum output power: 57 mWrms (RLOAD =16 Ω, 1 kHz)
Specs:
- Type: InEar System
- Theme: PA and Sonication
