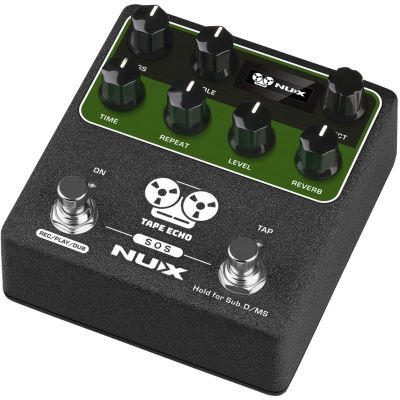

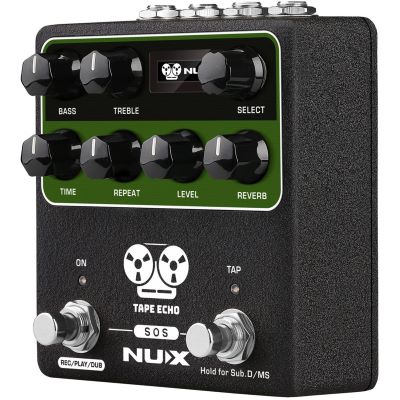

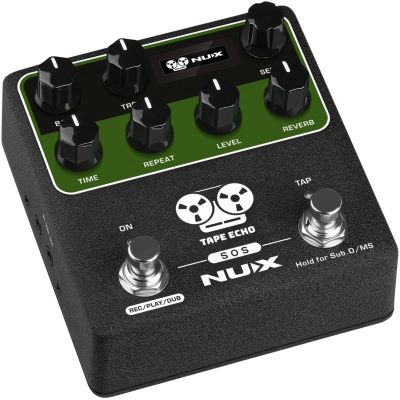

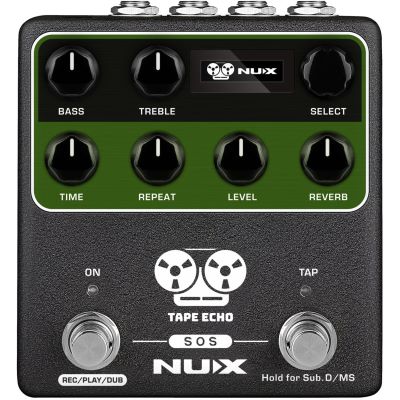

NUX NDD-7 Tape Echo

The NUX TAPE ECHO pays homage to the Japanese Space Echo of 1974. Analog tape echo devices record incoming audio signals onto a magnetic tape loop and then play back the endless loop via the playback head before it is erased again by new incoming audio signals. Space Echo devices used the common 1/4-inch tape, but instead of being on tape reels, the tape is loosely contained in what is called a tape chamber (tape tank). This design results in lower noise, less pitch variation, and less tape wear. NUX TAPE ECHO uses core image technology to reproduce these characteristics.

The detailed pedal offers many adjustable parameters like Bass, Treble, Repeat Rate, Intensity, Echo, Volume, Reverb as well as physical tape characteristics like Wow, Flutter, Saturation. Even self-regeneration and self-oscillation can be adjusted.

Features:

• Tape echo delay effect pedal
• up to 1600ms stereo delay time
• 7 repro tape head combinations
• Core image technology for natural tape echo sound with parallel spring reverb
• Realistic infinite pitch shift feedback with TIME & REPEAT controls
• Sub-division time signature with Tap Tempo footswitch
• 40 second stereo phrase loop with OLED status display
• Optional delay time display (Ms/BPM)
• MIDI input/output (3.5mm adapter cable included)
• Hold footswitch for self-feedback
• Dynamic range: 103 dB
• Frequency response: 20Hz-20kHz
• System latency: 1ms

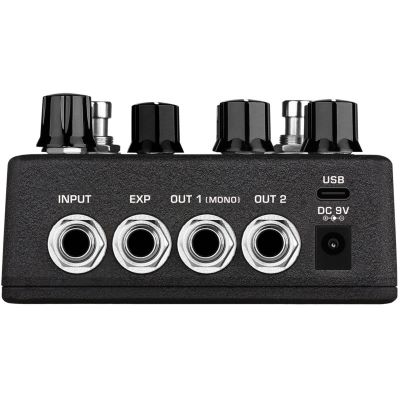

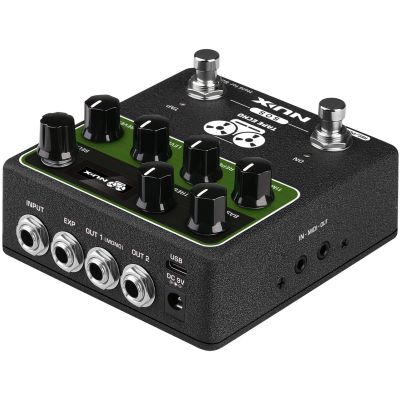

• 6.3mm jack instrument input
• 6.3mm jack Out L/R
• Expression Pedal Connector
• Micro-B USB input for firmware update and editor software
• Power supply via 9 V DC power supply (2.1 mm x 5.5 mm hollow plug, polarity (-) inside, not included)
• Power consumption: 150mA
• Dimensions: 115 x 105 x 58 mm
• Weight: 440g

Specs:

• Color: Black
• Effect Type: Delay
• Mono/Stereo: 1x IN (Mono) / 2x OUT (Mono/Stereo)
• Type: digital Effects Processor
• Theme: Guitars and Basses
