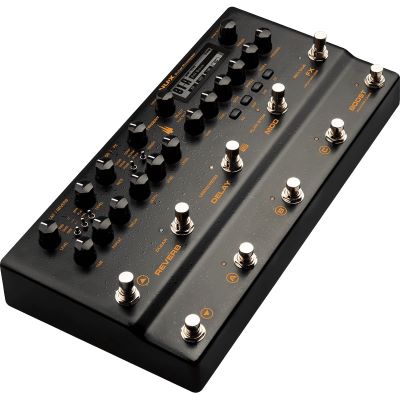

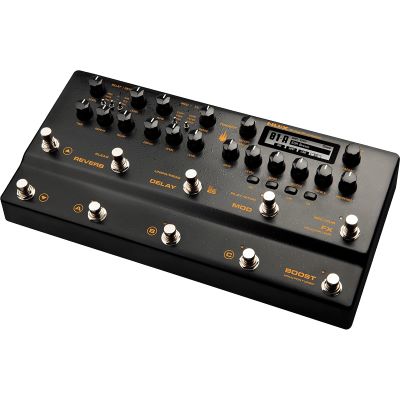

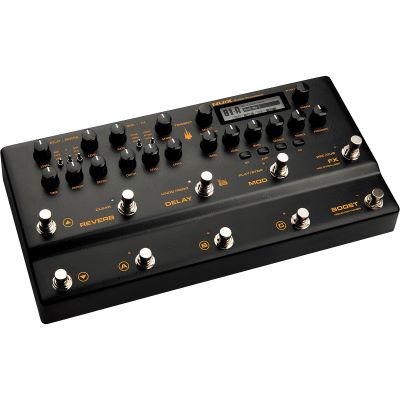

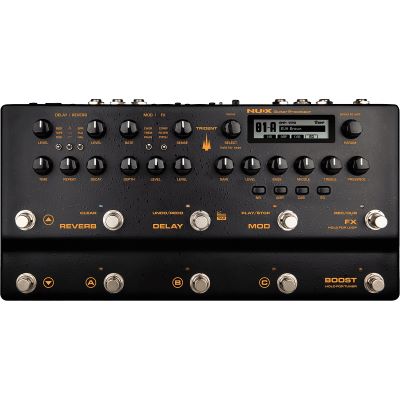

NUX Trident

A first-class modeler for live applications.

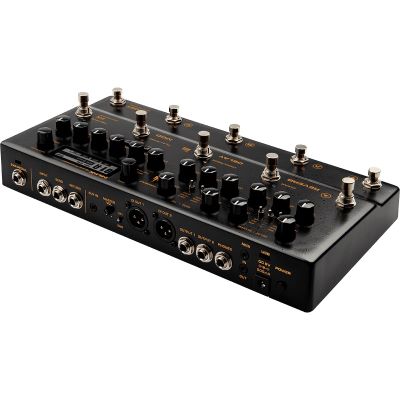

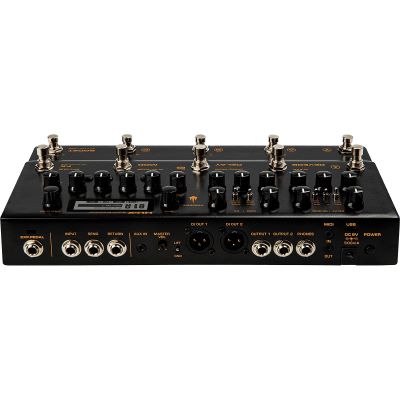

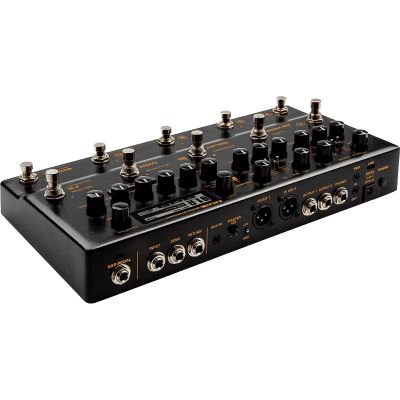

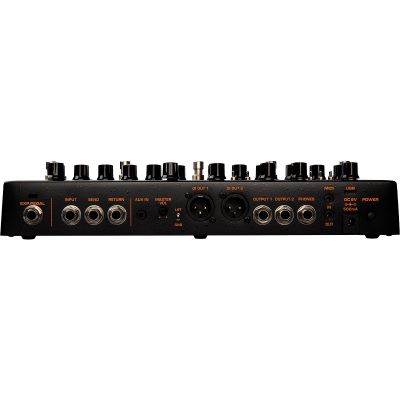

Perfect for live applications, the TRIDENT offers a variety of I/O options. The SEND/RETURN effect loop for external effects, 2 balanced XLR outputs to the PA system, PHONES output for monitoring, EXP. PEDAL input for connecting an expression pedal, MASTER VOL pot and MIDI IN / OUT.

Built like a tank.

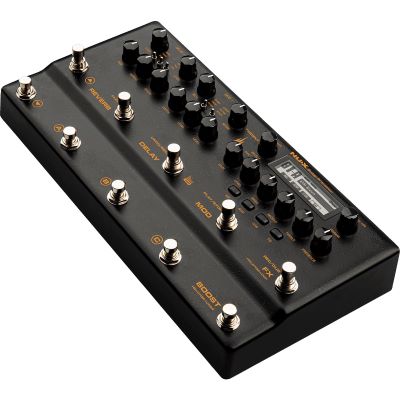

The TRIDENT consists of a one-piece die-cast aluminum housing that is solid and robust and built for live use.

World class amp modeling.

The TRIDENT features our newly revised, iconic TSAC-4K Amp Modeling (White-box Physical Modeling Algorithm). The TSAC-4K amp modeling algorithm is twice as complex as previous versions. This has led us to develop a new hardware platform with two DSPs, one controlling all effects and the other the amp modeling algorithm. In addition, the TRIDENT uses high-quality A/D and D/A converters and analog circuitry to achieve a clear sound with low noise.

This world-class amplifier modeling algorithm is packed with features and functions. Just like their real-life counterparts, the 27 included amps have HIGH/LOW inputs, 4 inputs for patch cables, toggle switches for voicing, allowing for maximum tweaking.

Features:

• NUX - Trident
• Digital modeling effects processor with LCD screen
• 27 amp simulations, 4 microphone simulations, 10 effects simultaneously
• Effect types: delay, pitch shift, phaser, chorus, compressor, filter, reverb, tremolo
• INPUT impedance: 1MΩ
• AUX IN impedance: 10kΩ
• RETURN impedance: 100kΩ
• OUTPUT 1, OUTPUT 2, SEND Impedance: 1kΩ
• Phone impedance: 47Ω
• Dynamic range: 109dB
• Sampling rate: 48kHz / 32bit
• System latency: 1ms
• Power supply: 9V DC (negative tip, ACD-006A adapter included)
• Dimensions: 312 x 164 x 65 mm
• Weight: 1.65 kg

Specs:

• Color: Black
• Effect Type: Multi-Effects Pedal
• Type: digital Effects Processor
• Theme: Guitars and Basses
