OMNITRONIC LMC-2022FX USB Mischpult

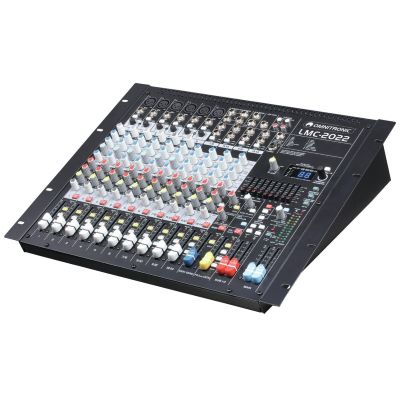

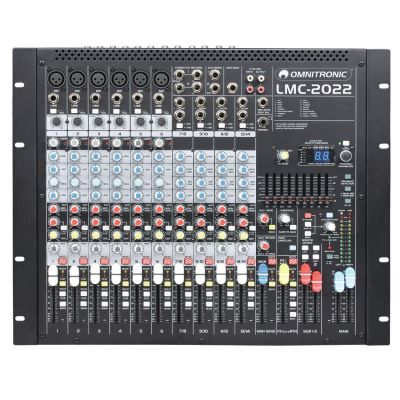

OMNITRONIC LMC-2022FX USB mixing console - Professional live mixing console with British EQ, DSP effects and USB interface

The OMNITRONIC LMC-2022FX USB mixing console is a powerful compact mixer that impresses with its extensive functions, intuitive operation and outstanding sound quality. Developed for professional applications such as live performances, theater productions, clubs, dance schools or studio recordings, this mixer offers impressive features that are unparalleled in this price range. With a classically warm-sounding British EQ, integrated effects unit, USB audio interface and numerous routing options, the LMC-2022FX is the perfect choice for ambitious users.

The mixer offers sophisticated features such as intelligent feedback detection, an integrated voice canceller for karaoke applications and a realistic 3D stereo surround effect that adds depth to the sound. Its robust construction, clear design and professional audio performance make it the ideal solution for fixed installations as well as for mobile use.

OMNITRONIC - Functional audio technology for stage and studio

OMNITRONIC is known for affordable audio solutions with well thought-out design and practical features. The LMC series was designed for demanding users who value sound fidelity, user-friendliness and reliability. The LMC-2022FX stands out as the top model in the series with numerous professional features that are otherwise only found in far more expensive mixing consoles.

With its combination of traditional analog mixing, digital effects processing and modern USB connection, the mixing console meets the highest demands for flexibility and versatility - from small ensembles to complex live setups.

Technical details of the OMNITRONIC LMC-2022FX USB mixing console

The LMC-2022FX has 6 mono input channels with high-quality microphone preamps that offer an impressive dynamic range of 130 dB and a bandwidth from below 10 Hz to over 200 kHz - ideal for crystal-clear, low-noise audio transmission. Each mono channel is equipped with a 3-band British EQ (with semi-parametric midrange control), low-cut switch, pan control, one-knob compressor and a 60 mm fader.

There are also 4 stereo channels with 4-band EQ, level adjustment, balance control and 60 mm faders. All channel strips are equipped with clip LEDs, routing switches (mute, solo/PFL, main mix, subgroups) and AUX sends. A total of 3 AUX paths are available per channel: AUX 1 (pre-fader), AUX 2 (pre/post-fader switchable), AUX 3 (post-fader for internal effects).

The integrated 24-bit DSP offers 16 editable effects, including reverb, delay, chorus and flanger - controllable via tap button or external footswitch. A graphic 9-band equalizer with illuminated faders controls the main mix and enables precise adjustments to the room acoustics. Feedback detection facilitates the quick localization and elimination of feedback, while the voice canceller removes vocals from the signal for karaoke applications.

The integrated USB audio interface allows bidirectional recording and playback with a PC or Mac at a maximum sampling rate of 48 kHz. This makes the mixing console not only suitable for live use, but also ideal for home recording or podcasting.

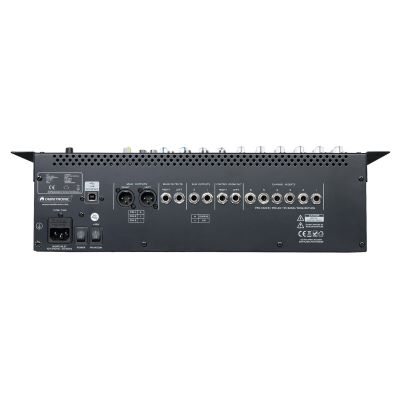

The output section offers balanced master outputs (XLR & jack), 2 subgroup outputs, control room outs, headphone connection and 2 stereo AUX returns. A CD/tape input with separate routing function and a corresponding output extend the connection options. All inputs and outputs are arranged in a practical way on the surface and enable a tidy setup.

The console can be integrated into a 19" rack (48.3 cm), making it ideal for mobile rack systems or fixed installations. Despite its extensive features, the LMC-2022FX is comparatively light at 6.25 kg, making it easy to transport.

Why the OMNITRONIC LMC-2022FX USB mixing console is the ideal choice

The OMNITRONIC LMC-2022FX is a real all-rounder for musicians, sound engineers, DJs or event organizers. It offers an exceptional combination of classic analog technology, digital effects processing and modern USB connectivity. The simple operation, paired with high-quality audio and a sophisticated range of functions, makes the mixing console the ideal control center for live events, studio applications or installations.

The warm-sounding British EQ, intelligent feedback detection and 3D stereo surround effect, which ensure a professional sound, are particularly noteworthy. The console also leaves nothing to be desired in terms of connectivity and routing - numerous AUX sends, subgroups and insert paths enable flexible signal processing.

With the OMNITRONIC LMC-2022FX USB, you get a professional mixing console that impresses both in terms of price-performance ratio and functionality - a real highlight for any audio application.

Features:

• 6 mono inputs with gain, 3-band British EQ, low cut, pan, compressor
• 6 inserts for external signal processors
• 4 stereo inputs with 4-band EQ, level and balance controls
• 24-bit DSP with 16 editable effects (e.g. reverb, delay, chorus)
• USB audio interface for recording/playback with PC/Mac (48 kHz)
• Voice canceller for karaoke applications
• 3D stereo surround effect for spatial sound
• Graphic 9-band equalizer with illuminated faders
• 3 AUX sends per channel (pre-/post-fader switchable)
• 2 subgroups with separate outputs
• 2 AUX returns can be used as additional inputs
• Feedback detection for feedback control
• Clip LEDs, mute and solo switches on all channels
• Balanced master outputs (XLR and jack)
• Headphone and control room outputs
• CD/tape input and output with routing options
• Phantom power: +48 V, centrally switchable
• External footswitch can be connected for effect control
• Single-color 2-digit 7-segment LED display
• Console light can be connected via BNC connection
• Rack mounting (19") possible - Dimensions: 48.3 x 40 x 12.7 cm
• Power supply: 100-240 V AC, 50/60 Hz
• Weight: 6.25 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication
