Ortofon Nadel VNL DANCE

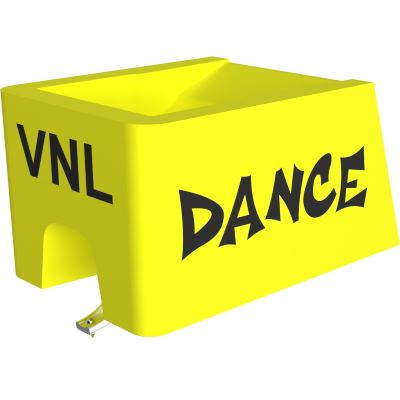

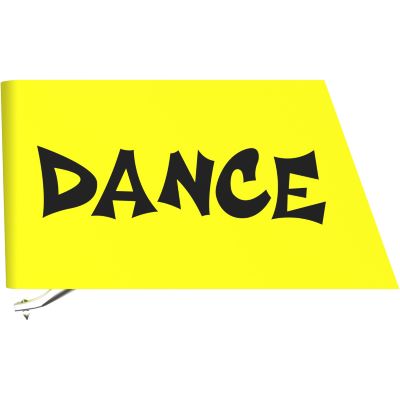

Ortofon VNL DANCE stylus

The Ortofon VNL DANCE styl us is the perfect choice for DJs and vinyl enthusiasts who value high sound quality, robust construction and stylish design. Equipped with an elliptical stylus mounted on a sturdy aluminum stylus carrier, it delivers more precise tracking than spherical styli - ideal for detailed music and clean mixes.

The exclusive Ortofon rubber suspension ensures optimum stability and durability - even during intensive use in the club or on stage. The elliptical stylus tip reaches deeper groove areas, providing a balanced, detailed sound with clear highs and full bass.

Made for DJs - robust, precise and stylish

The VNL DANCE stylus has been specially developed for DJ use. Its robust construction can easily cope with even the toughest applications. At the same time, it impresses with its high scanning capacity and precise signal reproduction - perfect for dynamic cueing, scratching or back cueing.

A visual highlight is the neon-yellow stylus, which glows under UV light. This not only looks cool, but also improves cueing in dark club environments. This gives you full control of your setup even in difficult lighting conditions.

Elliptical cut for more detail

Compared to the spherical version, the elliptical diamond of the VNL DANCE offers more precise groove scanning. This means more detail, better channel separation and a fuller, clearer sound overall. This stylus is the perfect choice for anyone who wants to get the most out of vinyl.

With an output voltage of 10 mV, it delivers a strong, clean signal - ideal for club use or professional recording situations. The recommended tracking force is 4.0 g, which ensures secure contact with the record without putting unnecessary strain on it.

Features:

• Output voltage at 1 kHz, 5 cm/s: 10 mV
• Channel separation at 1 kHz: 22 dB
• Frequency response 20 Hz - 20 kHz: +/-3 dB
• Sampling capability at 315 Hz with recommended contact pressure: 100 μm
• Compliance, dynamic, lateral: 12 μm/mN
• Needle tip radius: R 18 μm
• Recommended contact force: 4.0 grams
• Needle suspension: Ortofon exclusive
• Needle color: Yellow (fluorescent under UV light)

Specs:

• Stylus type: Elliptical
• Color: Yellow
• Type: Pickup
• Theme: DJ Equipment
