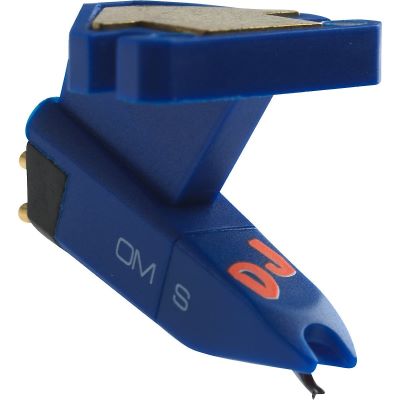

Ortofon OM DJ-S

The Ortofon DJ series has been known to many as the "jack of all trades", with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied. The Ortofon DJ series of cartridges are great for any style of music, and has been a favored choice of DJs around the world.

Features:

• Output voltage at 1000 Hz, 5 cm/sec.: 6 mV
• Channel balance at 1 kHz: 2 dB
• Channel seperation at 1 kHz: 23 dB
• Channel seperation at 15 kHz: 15 dB
• Frequency range at -3 dB: 20 - 20.000 Hz
• Frequency response: 20 - 18.000 Hz, 3 dB/ -2dB
• Tracking ability at 315 Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 9 µm/mN
• Stylus type: Spherical
• Stylus tip radius: R 18 µm
• Tracking force range: 2,0 - 4,0 g (20 - 40 mN)
• Tracking force recommended: 3,0 g (30 mN)
• Tracking angle: 20 °
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200 - 600 pF
• Cartridge weight: 5 g
• Replacement stylus unit: DJ-S

Specs:

• Stylus type: Spherical
• Color: Blue
• Type: Pickup
• Theme: DJ Equipment
