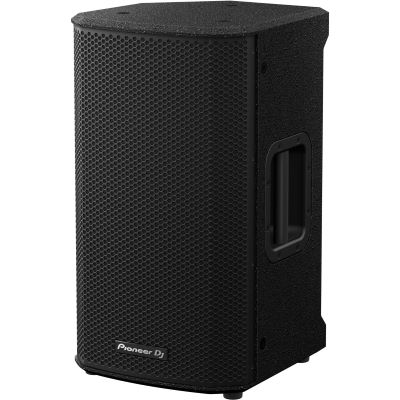

Pioneer DJ XPRS 102

Pioneer DJ XPRS 102 - Powerful 2-way active loudspeaker for professionals

The Pioneer DJ XPRS 102 is a versatile, extremely powerful 2-way active loudspeaker designed for the highest demands on stages, in clubs, at events or for mobile DJ use. With its elegant black design, robust construction and a Class D power amplifier with 2000 watts of power, it delivers uncompromising sound - clear, dynamic and assertive. Whether speech, music or live performance, the XPRS 102 offers maximum flexibility thanks to integrated DSP technology and is suitable for a wide range of professional audio applications.

Pioneer DJ - Professional audio technology for the stage

Pioneer DJ is one of the world's leading brands in the field of professional DJ and event technology. The XPRS2 series builds on the success of the first generation and sets new standards in terms of performance, sound quality and ease of use. The XPRS 102 is the compact model in the series and, despite its small size, impresses with its exceptionally powerful sound dispersion. Perfect for all those who rely on quality and durability - whether for mobile use, fixed installations or as a stage monitor.

With superior technology, high-quality workmanship and flexible adaptability, the XPRS 102 meets all the requirements of modern sound reinforcement solutions - in a stable, roadworthy format.

Technical details of the Pioneer DJ XPRS 102

Inside the XPRS 102 is a powerful Class D amplifier with 2000 watts of peak power. This amplification ensures a fast response, high energy efficiency and impressive sound quality - regardless of volume or application. The speaker achieves a maximum sound pressure level (SPL) of 129 dB and covers a frequency range from 50 Hz to 20 kHz - ideal for balanced reproduction of music and speech.

The XPRS 102 is equipped with a 10-inch woofer with a 2.5-inch voice coil and a 1-inch compression driver with a 1.75-inch voice coil. This combination ensures precise bass reproduction, detailed mids and brilliant highs - perfect for any live or playback situation.

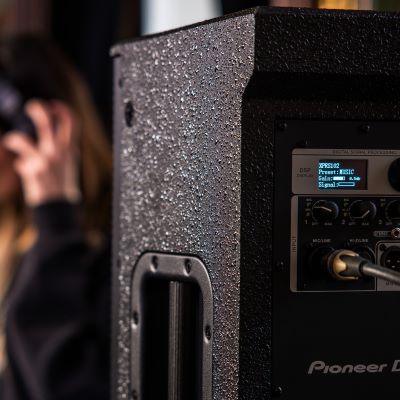

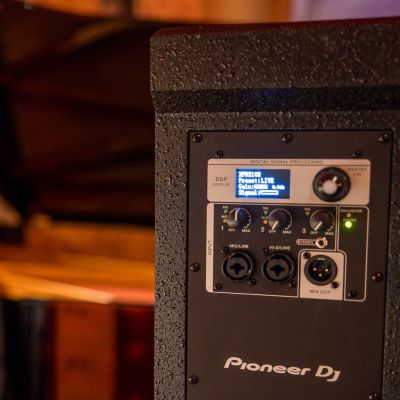

The integrated DSP offers four preset modes to quickly adapt the sound to different scenarios:

• Live: Optimized for live music with extended frequency range.
• Music: Ideal for playback and DJ sets.
• Speech: Perfect speech intelligibility for presentations and speeches.

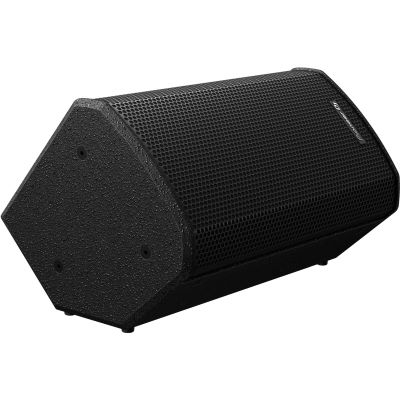

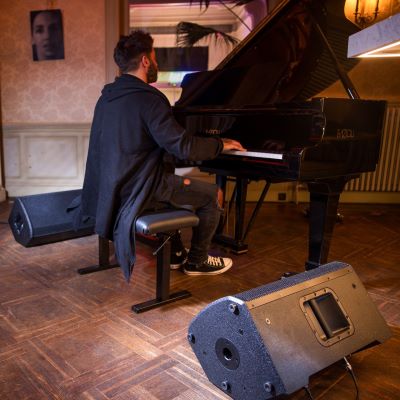

• Monitor: Adapted for use as a stage monitor.

In addition, up to 16 user-defined DSP setups can be saved - ideal for installations or changing requirements.

Robust construction for tough everyday use

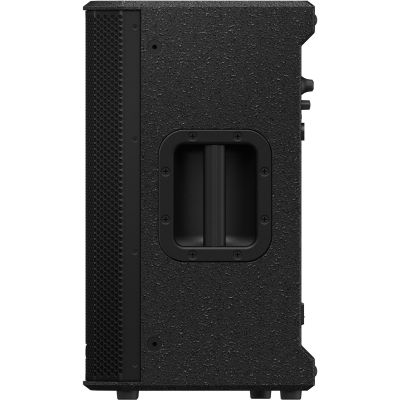

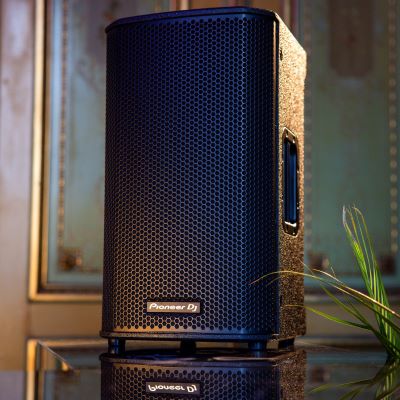

The plywood construction of the XPRS 102 is not only visually elegant, but also extremely robust. It reliably protects the technology from external influences - whether in everyday touring, at open-air events or in the club. Rubber feet ensure shock absorption and stability on all surfaces, while an integrated metal handle makes transportation easier.

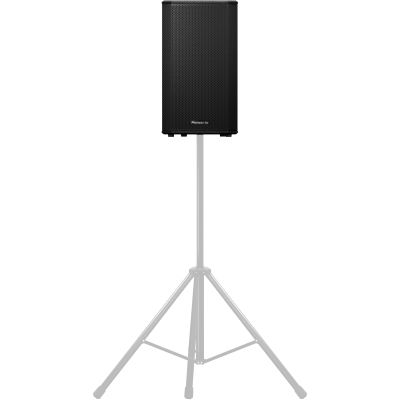

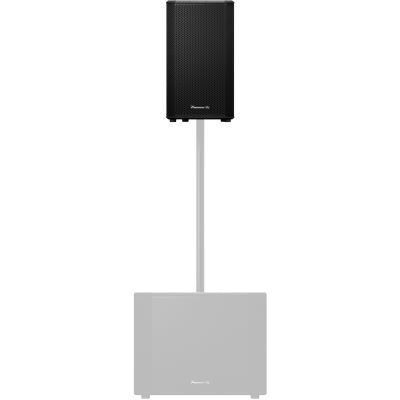

For installation, the speaker features a metal pole mount and 10 M10 threaded inserts for truss or wall mounting. This means that the XPRS 102 can be flexibly integrated into almost any setup - whether as a main speaker, sidefill or monitor.

A comprehensive protection system comprising thermal protection, digital limiter, overload protection and compressor ensures safe operation at all times - even under extreme conditions. The power consumption is around 800 watts, which represents a very good efficiency ratio in relation to the output power.

Why the Pioneer DJ XPRS 102 is an excellent choice

The Pioneer DJ XPRS 102 is the ideal solution for anyone looking for a powerful, flexible and mobile speaker with clear sound and high reliability. Whether as part of a sound reinforcement system, for mobile DJs, event service providers or as a permanently installed solution, the XPRS 102 delivers in every respect. Thanks to the four DSP modes and additional memory slots, the sound can be adapted to any location and any application - from clubs and open-air venues to conference halls.

With its compact format, modern design and sophisticated features, the XPRS 102 clearly stands out from conventional loudspeakers in this performance class. Anyone who values professional sound and maximum versatility will be more than satisfied with this model.

Features:

• 2-way active loudspeaker with powerful 2000 watt Class D amplifier
• 10-inch woofer with 2.5-inch voice coil for powerful bass
• 1-inch compression driver with 1.75-inch voice coil for clear highs
• Frequency response: 50 Hz - 20 kHz for natural sound reproduction
• Maximum sound pressure level (SPL): 129 dB
• Four DSP modes: Live, Music, Speech, Monitor
• 16 user-defined DSP memory locations for individual EQ setups
• Protection functions: Thermal protection, digital limiter, overload protection, compressor
• Robust black plywood housing with rubber feet
• Metal handle for easy transportation
• Metal pole mount + 10 x M10 threaded inserts for flexible mounting
• Power consumption: approx. 800 watts
• Weight: 15.5 kg
• Dimensions: 229 x 310 x 520 mm (W x D x H)

Specs:

• Power: 2000 W
• Housing Material: Multiplex
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Number of channels: 2
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication
