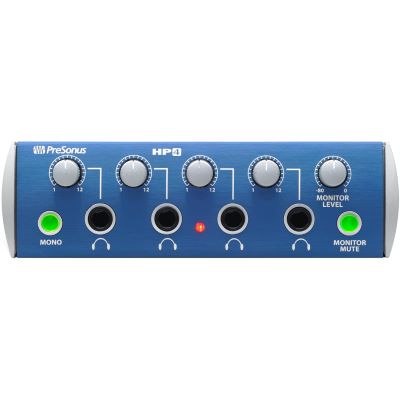

PreSonus HP4

The HP4 comes with left and right in- and outputs. You can sum the stereo signals into mono as well as adjusting individual Headphone levels or muting rear-panel monitor outputs.

Features:

• Headphone level control for each channel
• Mono summing switch for each channel
• Monitor level control
• Monitor mute switch
• Daisy-chain multiple units via monitor outputs
• Compact 1/3U rack-mount chassis
• Sealed, detented, metal rotary controls
• External 16 VAC power supply

Technische Daten:

• 4 screaming-loud (150 mW per channel) stereo ¼” headphone outputs (front panel)

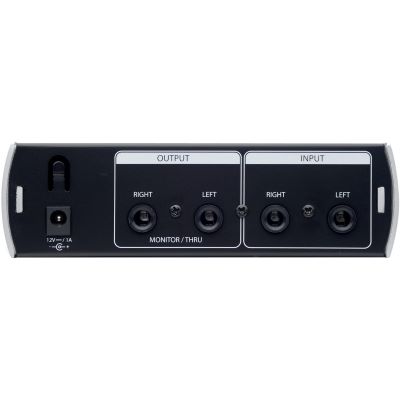

• 2 balanced ¼” line outputs (monitor outputs)
• 2 balanced ¼” line inputs
• Dimensions: 1/3U rack-mount (with standard rack tray, not included)
• Height: 1.75” (44.45 mm)
• Depth: 5.5" (139.7 mm)
• Width: 5.5” (139.7 mm)
• Weight: 5 lbs (2.27 kg)

Specs:

• Accessoires Type: Headphone Amp
• Color: Blue
• Type: Accessories
• Theme: Headphones

Instruction manual / Safety instructions:

• Manual (878.33 KB)
