PreSonus StudioLive 16.0.2 USB B-Ware

Why B-goods? This is a returned item with slight signs of use. Technically, the device works perfectly.

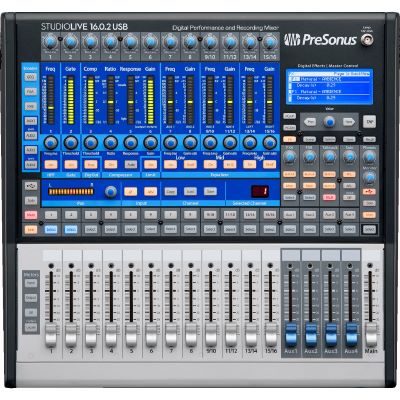

The PreSonus StudioLive 16.0.2 USB is a 16-channel digital mixer with an integrated 18x16 USB audio interface. It is equipped with 8 mono channels, 4 stereo channels, 4 aux paths and 13 ultra-low-noise XMAX™ Class A preamps.

Features:

• 16-channel digital mixer
• with integrated 18x16 USB audio interface
• 8 mono channels, 4 stereo channels, 4 aux paths

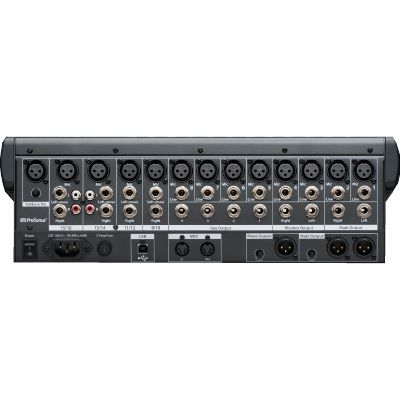

• Inputs: 12x XLR (microphone), 12x TRS jack (line), 4x RCA (line)
• Outputs: 3x XLR (sum L/R, mono sum), 8x TRS jack (sum L/R, monitor L/R 4x aux)
• Headphone socket (6.35 mm stereo jack) with separate volume control
• Talkback section with separate XLR microphone input
• 13 ultra-low-noise XMAX™ Class A preamps
• audiophile Burr-Brown digital converters with 118 dB dynamic range
• 24 bit/44.1 kHz, 48 kHz
• Fat channel with: Phase switch, HPF, compressor, limiter, noise gate, semi-parametric 3-band EQ, panpot, phantom power
• 50 fat channel presets, 50 user memories
• 2 master effect processors (delay/reverb), 50 FX presets, 50 user memories
• 31-band graphic EQ in total
• Scene automation with load/save/recall, 79 user memories
• 17 high-quality 60 mm faders
• 12 LED chains (level indicator and parameter values)
• MIDI input and output (5-pin DIN)
• MIDI control via standard foot controller: Scene change, sum volume, effect volume, mute effects
• Accessories included: USB cable, "Capture" recording software, "UC-Surface" control software, "QMix" control app for iOS and Android, "Studio One 3 Artist" DAW software, "Studio Magic" plug-in suite (software available for download)
• Robust steel housing
• 19" compatible (optional rack brackets available)
• Dimensions (WDH): 406 x 397 x 140 mm
• Weight: 7.3 kg

System requirements:

• USB 2.0 port
• Windows 7x 64/x86 SP1 + Platform Update, Windows 8/8.1 x64/x86, Windows 10 x64/x86
• Mac OS X 10.8.5 64 bit or newer
• Intel Core 2 (Intel Core i3 or better recommended)
• 4 GB RAM (8 GB or more recommended)
• 30 GB free hard disk space
• Internet connection to register and download the software
• Screen resolution 1366 x 768

Specs:

• Type: Mixer
• Theme: Recording and Studio
