RCF NX 912 A

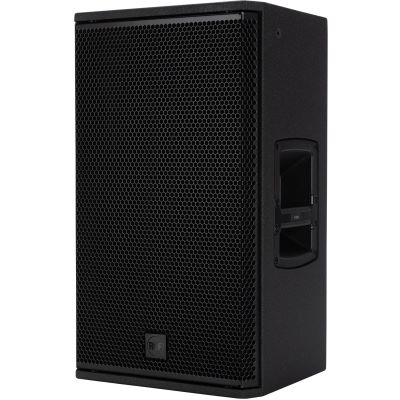

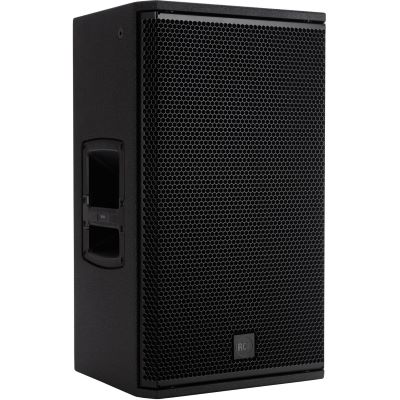

The NX 912-A offers innovative technologies and otherworldly sound for solo musicians, bands and DJs. The combination of a 1.75-inch compression driver, a 12-inch woofer, a 2-channel 2100W power amplifier and a Constant Directivity Waveguide provides consistent 100° x 60° coverage of the listening area with up to 130 dB SPL of distortion-free sound. Whether used as a stand-alone FOH system, satellite (with subwoofer), stage monitor or flown: The compact NX 912-A is powerful and reliable. Thanks to multiple mounting points, it is particularly suitable for demanding live sound applications. All NX 9 Series models feature precisely tuned FiRPHASE and Bass Motion Control algorithms, for absolute transparency and rich, powerful bass response. The easily transportable, tour-ready wooden cabinet is durable and can be securely mounted on a tripod, flying, wall or truss via the various mounting points.

Features:

• Up to 130 dB sound pressure level
• 2-channel Class D power amplifier, 2100 W
• Linear frequency response 50 - 20000 Hz
• 1.75-inch compression driver
• 12-inch woofer
• FiRPHASE 0 degree phase response
• Bass Motion Control Intelligent control of woofer excursion.

Specifications:

Specification:

• Frequency response: 50 Hz ÷ 20000 Hz.
• Max. SPL @ 1M : 130 dB
• Horizontal dispersion angle : 100°.
• Vertical dispersion angle: 60

Transducer:

• Compression driver : 1 x 1.0'', 1.75'' v.c
• Woofer : 12'', 2.5'' v.c

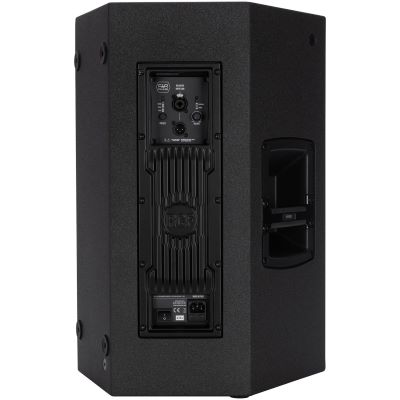

Input/Output section:

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

processor:

• Crossover frequency: 1600 Hz
• Protection circuit: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Linear, Boost, Stage, Volume

Power Section:

• Total power: 2100 W peak
• HF range: 700 W peak
• Low frequencies: 1400 W peak
• Cooling: Convection
• Connected Unit: VDE

Standard Conformity:

• CE Mark: Yes

Physical Data:

• Housing Material: Plywood

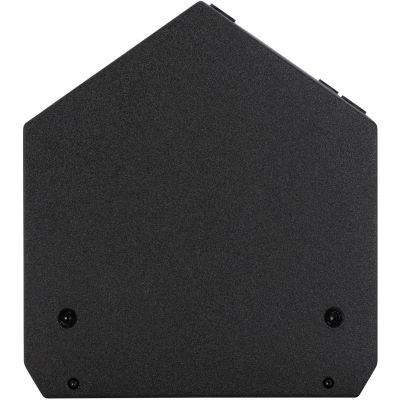

• Hardware: 2 x M10 top, 1 x M10 each side, 1 x M10 bottom, 1x M10 rear

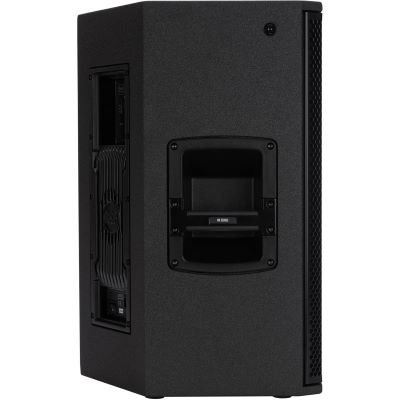

• Handles: 1 x Side

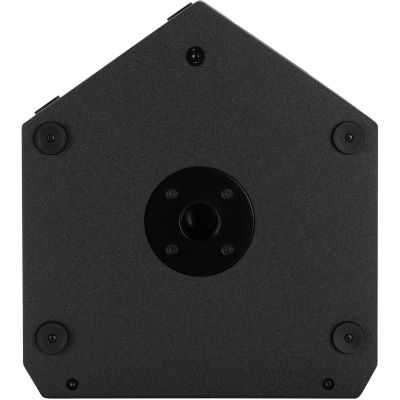

• Pole Mount/Cap: Yes

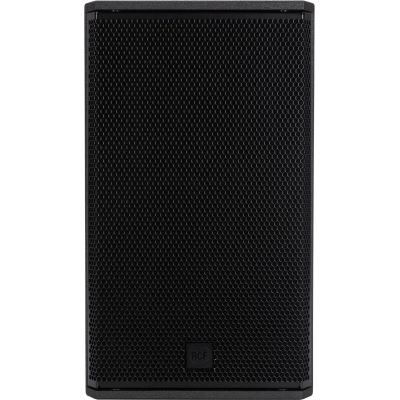

• Grille: Steel
• Color: Black

Size:

• Height: 620 mm / 24.41 inches
• Overall Width: 362 mm / 14.25 inches
• Depth: 405 mm / 15.94 inches
• Weight: 20.8 kg / 45.86 lbs

Specs:

• Power: 2100 W
• Housing Material: Multiplex
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 12
• Tweeter: 1 x 1,75
• Number of channels: 1
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (3.87 MB)
