RCF TM 18 18 Channel digital Mixer

The M Series mixers are a complete solution for musicians. The integrated power supply and the integrated WIFI antennas guarantee maximum flexibility and comfort: the only thing the musicians have to bring along are their instruments.

The eight microphone inputs, six XLRs and two combo connectors on the back of the M18 provide warm, transparent and dynamic sound, as does the M18's ten balanced jack jacks (9-18).

Two connections (9-10) can be switched to HiZ for instruments (+ 4dBu and -10dBV), ideal for acoustic guitars and electric guitars as well as bass guitars with passive pickups.

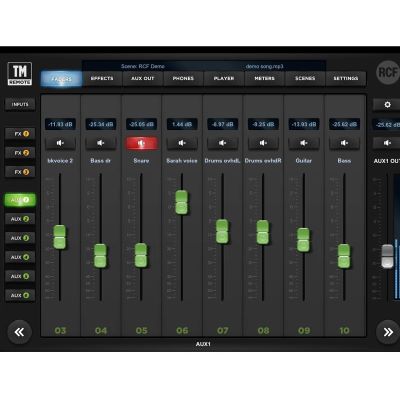

The microphone and line inputs can be adjusted via remote-controlled pre-amplification, even from longer distances. All settings can be saved and can be recalled as required.

Six balanced Aux outputs with + 22dB are available to connect stage monitors or other external effects.

Die Main Mix Ausgänge mit +22dB stehen auf zwei symmetrischen XLR-Anschlüssen bereit.

Features:

• 8 discrete high-performance micofon inputs
• 10 line inputs and 2 HiZ inputs
• 1 stereo main-out
• 6 balanced Aux outputs
• 1 stereo headphone output
• 1 dual-channel footswitch connector
• MIDI IN and MIDI OUT connectors
• Parametric EQ, Gate and Compressor on each input channel
• Standard Parametric EQ on each output channel
• Three internal effects: reverb, delay, modulation
• Up to 16 plug-ins can be selected in the channels
• Tube emulation (Valve Warmer), sound enhancement (Xciter), sum compressor (Maximizer) and a stereo graphic EQ for the main mix
• Measures HxWxD: 88 x 340 x 180 mm
• Weight: 2.5kg

Specs:

• Type: Mixer
• Theme: Recording and Studio
