Reloop Turn X High End Plattenspieler with Ortofon 2M Blue-Tonabnehmer

With the Turn X Reloop presents a crystal-controlled high-end turntable that not only convinces in terms of sound and design at the highest level.

Precision ex works

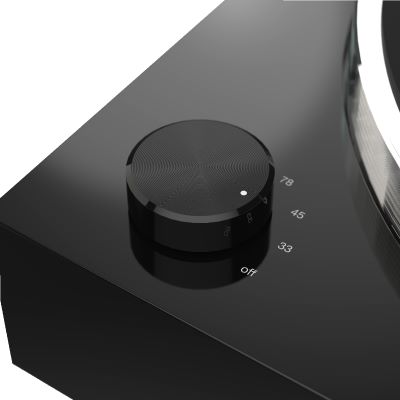

The direct-drive DC motor in the Turn X ensures ultra-precise and stable speeds. The high torque guarantees not only particularly short start-up times but also only minimal deviations of only +/-0.03%. The Turn X shows its advantages in fully manual operation with electronic brake and a smooth-running start/stop rotary switch, which is also used to select the speed (33, 45 and 78 RPM).

Balance in optima forma

A solid aluminum block forms the basis for the record player's precision-machined die-cast platter. With a solid weight of 2.1 kg, a diameter of 332 mm and a massive thickness of 22.5 mm, it guarantees perfectly balanced running. The dampening rubber coating on the back of the platter and the rubber mat included in the delivery ensure optimal resonance control and isolation properties.

Audiophile tonearm

The statically balanced S-shaped tonearm features height adjustment for adjusting the azimuth (angle the cartridge needle makes to the record) and vertical tracking angle (VTA). The tonearm design not only ensures free and smooth movement, but also ensures the best possible performance of the cartridge.

Crystal clear sound quality

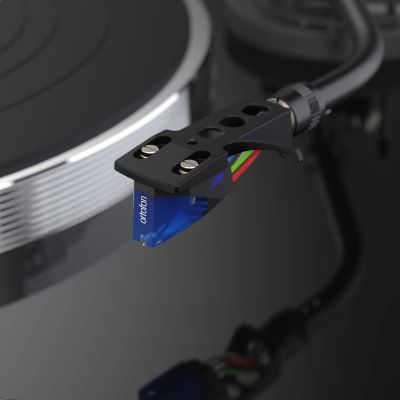

For top-level playback, the Turn X comes with a pre-installed Ortofon 2M Blue cartridge that guarantees outstanding dynamics and sound resolution for the highest audiophile demands. Another highlight: the universal SME connector allows a quick and easy change of the cartridge system if required.

Design without compromise

The Reloop Turn X not only meets the demanding needs of vinyl lovers, but is also a real visual highlight. The tidy appearance with the sophisticated one-button control and the noble piano lacquer look make the record player an absolute eye-catcher.

Sound and nothing but sound

The record player's solid MDF chassis ensures an extra heavy and stable construction that prevents unwanted resonances from occurring in the first place. In addition, the height-adjustable isolator feet ensure effective decoupling of the Turn X.

Attention to detail

Last but not least, to ensure optimal signal transmission and counteract corrosion, the Turn X scores with a gold-plated, high-resolution phono output and a ground connection that is also gold-plated. The power switch with ultra-low noise isolation also minimizes potential interference.

Features:

• Reloop - Turn X High End Turntable
• Quartz-controlled premium HiFi turntable
• Super high-torque direct drive with ultra-precise rotation speed
• Fast starting torque with low rotation speed deviation of only +/-0.03%
• Fully manual operation with motor control switch to select three different speeds (33, 45 and 78 RPM)
• Precision-machined, extra-solid die-cast aluminum platter for perfectly balanced rotation (305 mm diameter, 22.5 mm thickness, 2.1 kg weight)
• Absorbent rubber coating on the back of the platter and special rubber pad (5 mm) for optimum resonance damping
• Recessed platter design
• Statically balanced S-shaped tonearm with height adjustment (VTA)
• Adjustable anti-skating wheel for optimal cartridge adjustment
• Pre-installed Ortofon 2M-Blue cartridge for excellent dynamics and sound resolution
• Universal headshell connector (SME) for added flexibility
• Supplied counterweight to support numerous cartridges included
• Prvemium, high-resolution phono outputs (with separate ground connection)
• Gold-plated, corrosion-resistant audio connectors (power and RCA cables detachable)
• Built-in switching power supply with ultra-low noise design (isolation)
• Extra heavy, solid MDF wood chassis in sturdy construction
• Height-adjustable, shock-proof isolator feet for effective decoupling
• Timeless design with high-gloss black piano finish
• Included accessories: turntable, dust cover, 2x dust cover hinges, counterweight, phono RCA cable with ground wire, AC power cord, rubber mat, instruction manual, Ortofon 2M-Blue cartridge & headshell

Specifications:

Turntable Section:

• Turntable type: direct drive, fully manual
• Drive: Quartz-controlled upper-torque direct drive with precise rotation control
• Motor: DC motor, 16-pole, 3-phase, brushless
• Speeds: 33 1/3, 45 & 78
• Starting torque: More than 4500 g/cm
• Starting time / RPM change: <0.3 sec.
• Synchronous Speed Variation: Less than 0.1% WRMS (JIS WTD)
• S/N ratio: More than 60dB (DIN-B)
• Braking system: Electronic brake

Turntable:

• Turntable: Die-cast aluminum
• 305 mm diameter
• Weight: 2,1 kg

Tonearm Section:

• Tonearm: S-shaped, statically balanced
• Effective length tonearm: 230 mmv
• Overhang: 15 mm
• Tracking error angle: < 3
• VTA adjustment range: 0-6 mm
• Weight incl. headshell: 17 - 25 g
• Anti-skating range: 0-3 g
• Connectors: 1x PHONO Out (gold plated), 1x GND ground connector

Cartridge:

• Ortofon 2M Blue
• Output voltage at 1000 Hz, 5cm/sec: 5.5 mV
• Channel balance at 1 kHz: 1.5 dB
• Channel separation at 1 kHz: 25 dB
• Channel separation at 15 kHz: 15 dB
• Frequency response: 20-20,000 Hz + 2 / - 1 dB
• Scanning capability at 315 Hz at recommended contact force: 80 µm
• Needle compliance, dynamic, lateral: 20 µm/mN
• Needle type: Elliptical
• Needle tip radius: r/R 8/18 µm
• Contact force range: 1.6-2.0 g (16-20 mN)
• Recommended contact force: 1.8 g (18 mN)
• Angle of contact: 20
• Internal impedance, DC resistance: 1.3 kOhm
• Internal inductance: 700 mH
• Recommended terminating resistor: 47 kOhm
• Recommended termination capacitance: 150-300 pF
• Pickup body/needle color: Black/blue
• Weight pickup system: 7.2 g

General:

• Power supply: AC IN 100~240V, 50/60 HZ
• Power consumption: 3W
• Dimensions: 460(W) x 367.3(D) x 172.6(H) mm
• Weight: 10.35 kg

Specs:

• Color: Black
• Set Offer: no
• Drive: Direct Drive
• digital Output: none
• Type: Turntable
• Theme: DJ Equipment
