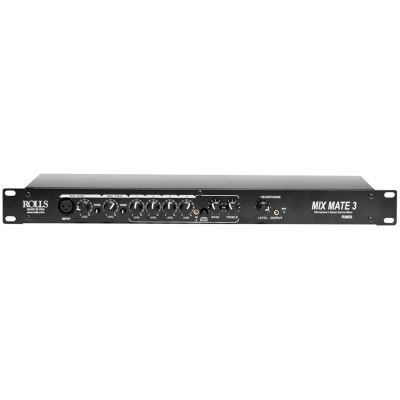

ROLLS RM69 6-Kanal Mic-Line Rackmixer

ROLLS RM69 6-channel mic line rack mixer: Compact mixer for versatile audio applications

The ROLLS RM69 6-channel mic line rack mixer, also known as the MIX MATE 3, is a powerful mixer in standard rack format. With its robust design, compact size of only 1 RU and a comprehensive selection of audio inputs, the RM69 is ideal for versatile audio applications in restaurants, clubs and other professional environments. The combination of microphone and line inputs and the user-friendly front panel makes it a valuable tool for high-quality audio mixing in a space-saving design.

ROLLS - A synonym for professional audio technology

ROLLS is a renowned manufacturer in the field of audio technology and offers products that are known for their reliability, durability and excellent sound quality. For years, the brand has been appreciated by audio engineers and technicians who rely on durable and powerful audio equipment. The RM69 rack mixer is an example of the quality standards that ROLLS sets in the audio sector and is aimed at users who do not want to do without uncompromising audio quality, even in smaller setups.

Technical details of the ROLLS RM69 MIX MATE 3

The ROLLS RM69 is a 6-channel mic/line rack mixer with two microphone inputs and four stereo line inputs. The two XLR microphone inputs are ideal for connecting professional microphones and offer the option of individually activating +15 V phantom power, which facilitates the use of condenser microphones. A parallel XLR input is also available on the front panel, making the mixer even more flexible to use. The four line inputs (cinch) enable the connection of stereo sources such as music systems, CD players or other audio devices.

Another practical feature is the additional 3.5 mm TRS jack input on the front, which allows a quick connection to mobile devices such as MP3 players or smartphones. This allows additional music to be spontaneously played into the system, which is particularly useful in restaurants and event rooms.

Comprehensive connection options and high-quality workmanship

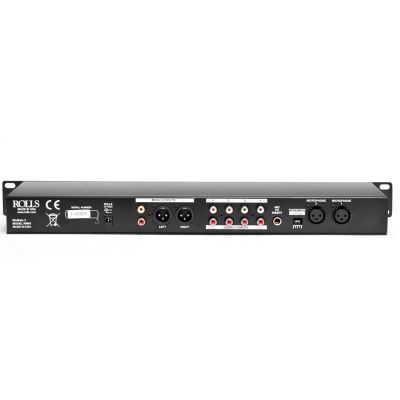

The outputs of the RM69 MIX MATE 3 are just as versatile as the inputs: with two balanced XLR outputs and a stereo RCA output, the mixer offers flexible connection options. This selection of connections makes it possible to use different audio systems in parallel and to transmit the sound precisely and without loss. The inputs and outputs are specially designed for low noise levels and optimum signal quality, making the RM69 a reliable solution for sound reinforcement.

In addition, the RM69 has a 2-band equalizer (EQ) for the line inputs, which can be used to fine-tune the highs and lows. The XLR microphone inputs also have a tone control function that allows even more precise control over the sound. There is also an insert socket (6.3 mm jack) on the front, which can be used to loop additional effects such as compressors or equalizers into the signal. A headphone output with a 3.5 mm jack allows the mix to be monitored and can be conveniently controlled via a controller.

Special properties and practical features of the ROLLS RM69

The RM69 MIX MATE 3 combines a variety of functions that make it an indispensable tool for professional audio applications. The mixer is reliably supplied with power via an external 15V power supply unit. The compact design in 19-inch rack format with just 1 U fits easily into any audio rack and saves space without sacrificing functionality. The amplification performance of the RM69 is remarkable: it offers a maximum gain of 60 dB for microphone inputs and 26 dB for line inputs, which supports detailed and powerful audio reproduction.

Other technical highlights include an input impedance of 600 Ω for microphones (balanced) and 22 kΩ for line inputs, which ensures excellent sound quality. The signal-to-noise ratio of 96 dB and the low noise floor of -80 dB ensure clean audio output without disturbing background noise. The RM69 is also designed for a minimum distortion factor (THD) of less than 0.25%, which ensures authentic and distortion-free sound reproduction.

Conclusion: The ROLLS RM69 rack mixer - the perfect solution for professional audio environments

The ROLLS RM69 6-channel Mic-Line rack mixer is a sophisticated and high-quality choice for anyone looking for a compact and powerful solution for their audio mixing. Whether in a restaurant, club or other venue, the RM69 offers all the features you need to ensure excellent sound quality. The robust construction, sophisticated connection options and user-friendly design make the RM69 one of the best rack mixers for professional applications.

With the ROLLS RM69, users are choosing a device that perfectly meets the requirements of modern audio technology. Thanks to its versatility, flexible configuration options and outstanding sound quality, the RM69 is an excellent choice for professional use.

Features:

• 6-channel mic/line rack mixer in 19" rack format (1 U)
• 2x XLR microphone inputs, each with 15V phantom power, individually switchable
• 4x stereo line inputs (RCA)
• 1x additional line input (3.5 mm mini-jack) on the front of the device
• 2-band EQ for line inputs, tone control for XLR inputs
• Insert socket (6.3 mm jack) for additional effects on the front panel
• Headphone output (3.5 mm jack) with volume control
• Balanced XLR outputs and unbalanced stereo RCA outputs
• External power supply via 15V power supply unit (included)
• Compact dimensions: 48.3 x 4.5 x 10 cm (W x H x D)
• Maximum amplification: Mic 60 dB, Line 26 dB
• Signal-to-noise ratio: 96 dB, noise floor: -80 dB
• Distortion factor (THD): <0.25%
• Weight: 2.3 kg

Specs:

• Channels: 6
• Rack Mountable: yes
• Effect Processor: no
• Talkover: yes
• USB Port: no
• Line Inputs: 6
• Mic Inputs: 2
• Phono Inputs: 0
• Sound Card: no
• Crossfader adjustable: no
• Color: Black
• Type: Mixer
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (267.18 KB)
