Sennheiser XSW IEM Set (A)

Out of the box, the XS Wireless IEM set has all the components you need to set up your personal monitoring in minutes. XS Wireless IEM is the entry to Sennheiser’s renowned in-ear monitoring sound. It delivers the whole potential of in-ear monitoring with an elegant, easy-to-use interface. No tech expertise is needed to get all the benefits: You hear yourself perfectly in any environment and can aim for new levels of perfection.

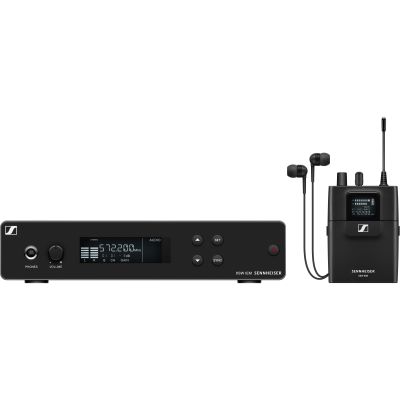

The system includes a rugged transmitter, a lightweight bodypack receiver, IE 4 in-ear starter headphones, batteries, a power supply with multi-voltage adapter, and a rack mount kit for the transmitter.

Eight pre-configured frequency banks in the professional UHF range (with 12 perfectly aligned channels each) keep your connection reliable and clear in every situation. Standard and advanced features make XS Wireless IEM flexible in both small and large applications. The series scales with your demands during rehearsals or live shows, on a club stage or for a worship service. Multiple audio modes match varying performances and mixing demands. You can easily change to mono, stereo, or a two-channel focus mode.

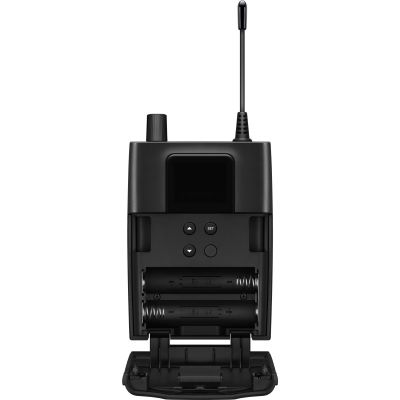

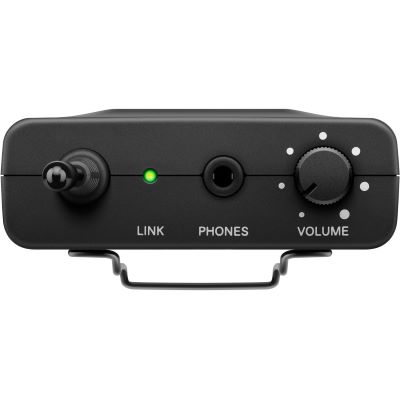

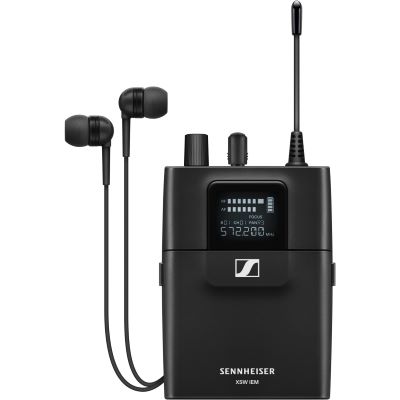

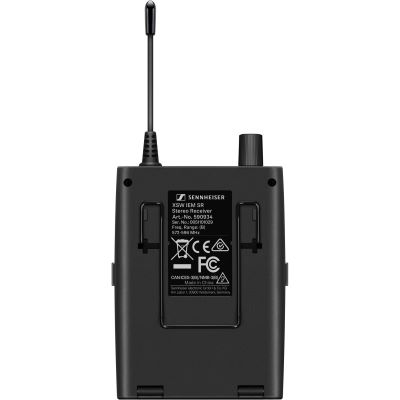

The stereo receiver bodypack, although lightweight, is designed with live stages in mind. Setting options are well secured behind a stage-proof panel. A status LED keeps you informed about battery and connection status, while the LC display offers access to further settings. You can fine-tune your preferred focus mode for in-ear monitoring, balance your mix, switch the EQ to enhance the higher frequencies, or select your channel or a manual frequency.

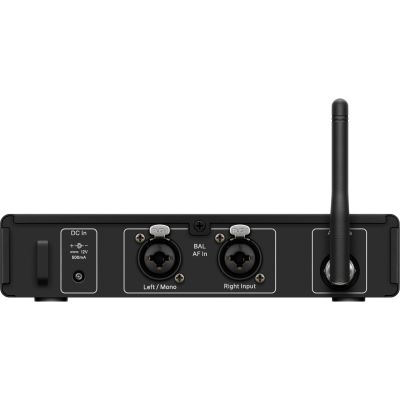

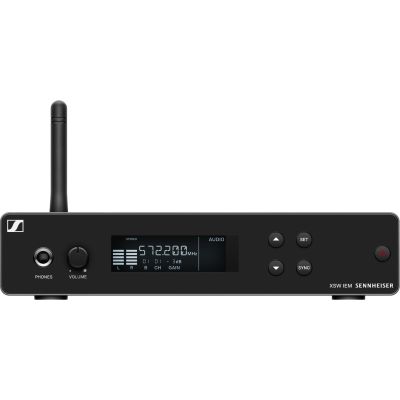

The stereo transmitter comes with a rugged metal housing. Fine-tuning the most important options has never been easier. Whether you want to increase gain, check the frequency setup, or sync some more receivers for your band setup: It all needs fewer clicks than the count-in of your drummer. A rack mount kit and a removable antenna allow for flexible setups and configurations.

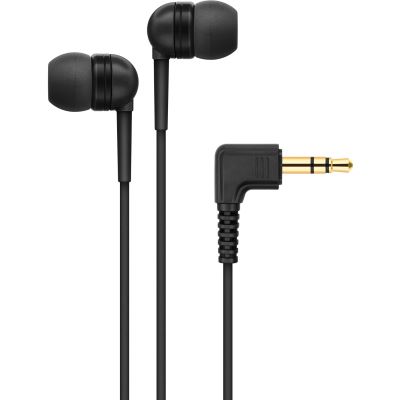

The set also includes a pair of IE 4 in-ear headphones. They reproduce outstanding sound quality and high dynamics, and are equipped with exchangeable ear sleeves to give a secure and comfortable fit. You get a good isolation from environmental noise as well as a very good bass response.

Features:

• Sennheiser XSW IEM Set (A).
• Entry-level IEM system with all the components you need).
• Rely on your wireless connection - professional quality UHF wireless system)
• Full control with flexible audio modes)
• Focus mode that lets you fine-tune your personal mix)
• EQ and limiter options enhance your audio experience)
• Easy-to-use frequency presets or detailed manual control)
• One transmitter can be connected to an unlimited number of receivers)

Specifications:

Transmitter:

• Modulation type: wideband FM
• Frequency range: 476-500 MHz
• Switching bandwidth: up to 24 MHz
• Nominal deviation/peak deviation: ±15 kHz / ±24 kHz
• Squelch: 10 µV, fixed
• Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
• Distortion factor: ≤ 1 %
• LF output power at 3.5 mm: 2 x 1.25 Vrms at 16 Ω
• High boost (EQ): +10 dB at 13 kHz
• Limiter: -10 dB
• LF transmission range: 45 Hz to 15 kHz
• Cross talk (50 Hz - 10 kHz): approx. 45 dB
• Temperature range: 0 °C to +40 °C
• Power supply: 2 AA batteries, 1.5 V
• Rated voltage: battery 3 V / rechargeable battery 2.4 V
• Operating time: approx. 6 hrs.
• Dimensions: approx. 95 x 70 x 26 mm
• Weight (incl. batteries): approx. 110 g

Bodypack receiver:

• Modulation type FM Stereo
• Frequency range: 476-500 MHz
• Switching bandwidth: up to 24 MHz
• Antenna output: BNC socket, 50 Ω
• Max. RF output power: 10 to 30 mW (not adjustable), 476-500 MHz, 30 mW
• AF transmission range: 45 Hz to 15 kHz
• AF input (BAL AF IN L (I) + MONO/BAL AF IN R (II)): 2x XLR 6.3 mm TRS combo jack (3/¼"), electronically balanced
• Signal-to-noise ratio(at rated load and peak stroke): ≥88 dB
• Temperature range: 0 °C to +40 °C
• Power supply: +12 V DC
• Current consumption: approx. 400 mA (depending on volume)
• Dimensions: approx. 200 x 128 x 42 mm
• Weight: approx. 700 g
• Input voltage: 100 to 240 V~200 mA, 50/60 Hz
• Current consumption: max. 200 mA
• Output voltage: +12 V DC
• Secondary output current: 500 mA
• Temperature range: 0 °C ... +40 °C
• Temperature range during storage: -20 °C ... +60 °C

Specs:

• Type: InEar System
• Theme: PA and Sonication
