Sennheiser XSW IEM Set (E)

Complete starter set for in-ear monitoring - famous Sennheiser sound, straightforward setup, including UHF reliability.

The XS IEM wireless set includes all the components you need for a smooth start to personal monitoring. It sets a new standard for simplicity, flexibility and reliability in wireless in-ear monitoring, helping you improve your sound regardless of your technical experience. Whether you're rehearsing or performing live, on the club stage or at a church service, experience Sennheiser's renowned sound and proven UHF wireless technology in a comfortable and durable system and focus on your playing.

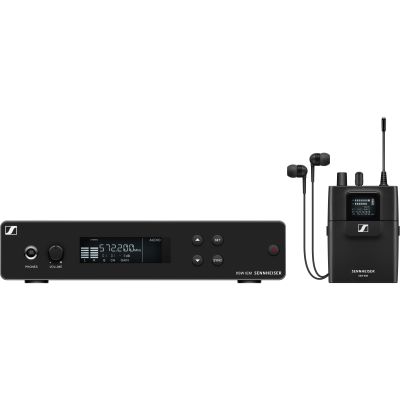

The system consists of a rugged transmitter, lightweight bodypack receiver, entry-level IE 4 in-ear headphones, batteries, power supply with country adapters and a rack-mount kit for the transmitter.

Eight pre-configured frequency banks in the professional UHF range (each with twelve perfectly matched channels) ensure that your connection is reliable and clear in any situation. Advanced features make the XS Wireless IEM flexible for small and large shows. The series is scalable according to your needs at rehearsals or live shows, on a club stage or at a church service. Multiple audio modes are available for different performance and mixing requirements. You can easily switch between mono, stereo or a two-channel focus mode.

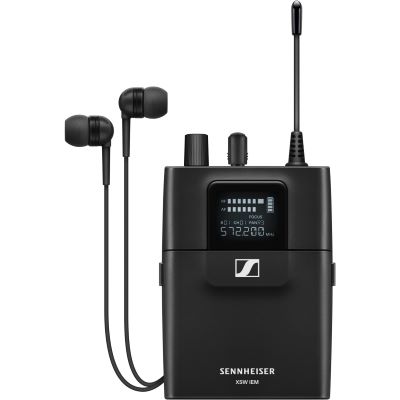

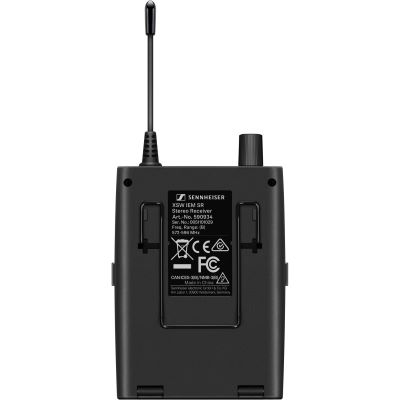

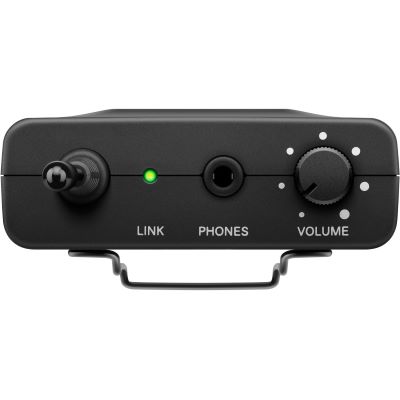

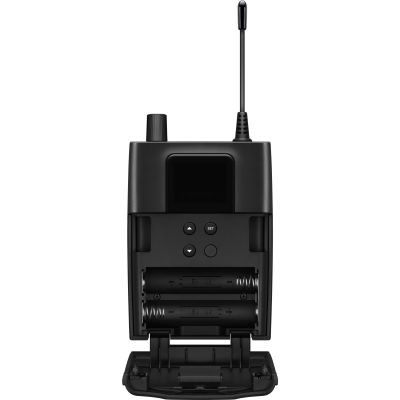

The stereo bodypack receiver is lightweight, but designed with live stages in mind. All adjustments are well secured behind a stage-proof cover. A status LED keeps you informed of battery and connection status, and the LC display provides access to additional setting options. You can set your preferred focus mode for in-ear monitoring, balance your mix, toggle the EQ to boost the higher frequencies, or select your channel or a manual frequency.

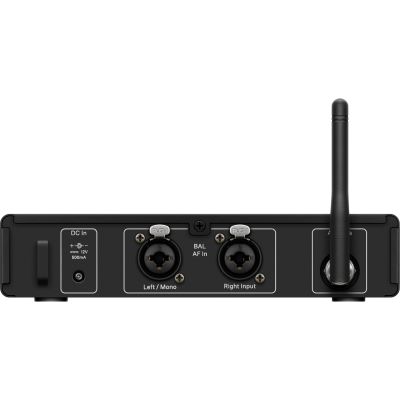

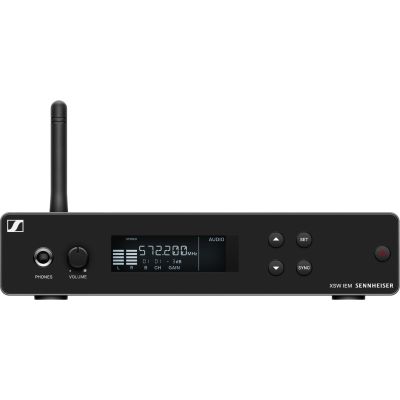

The stereo transmitter is housed in a rugged metal enclosure. Fine-tuning the most important settings has never been easier. Whether you want to boost the gain, check the frequency setting, or sync a few more receivers for your band setup: It takes fewer clicks to do all that than it takes your drummer to count-in. A rack-mount kit and detachable antenna allow for flexible setups and configurations.

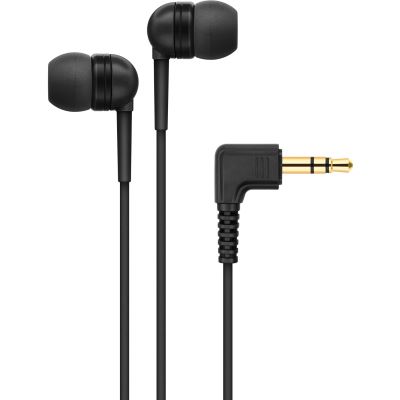

Also included in the kit is an IE 4 in-ear headphone. It reproduces sound with good sound quality and high dynamic range, and features interchangeable ear adapters for a secure and comfortable fit. They also provide ambient noise shielding and good bass response.

Features:

• Sennheiser XSW IEM Set (E).
• Entry-level IEM system with all the components you need
• Rely on your wireless connection - professional quality UHF wireless system
• Full control with flexible audio modes
• Focus mode that lets you fine-tune your personal mix
• EQ and limiter options enhance your audio experience
• Easy-to-use frequency presets or detailed manual control
• One transmitter can be connected to an unlimited number of receivers

Technical specifications:

XSW IEM SR Stereo Transmitter:

• Modulation type: wideband FM
• Frequency range: 823.2-831.8 MHz
• Switching bandwidth: up to 24 MHz
• Nominal deviation/peak deviation: ±15 kHz / ±24 kHz
• Squelch: 10 µV, fixed
• Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
• Distortion factor: ≤ 1 %
• LF output power at 3.5 mm: 2 x 1.25 Vrms at 16 Ω
• High boost (EQ): +10 dB at 13 kHz
• Limiter: -10 dB
• LF transmission range: 45 Hz to 15 kHz
• Cross talk (50 Hz - 10 kHz): approx. 45 dB
• Temperature range: 0 °C to +40 °C
• Power supply: 2 AA batteries, 1.5 V
• Rated voltage: battery 3 V / rechargeable battery 2.4 V
• Operating time: approx. 6 hrs.
• Dimensions: approx. 95 x 70 x 26 mm
• Weight (incl. batteries): approx. 110 g

XSW IEM EK stereo receiver:

• Modulation type: FM Stereo
• Frequency range: 823.2-831.8 MHz
• Switching bandwidth: up to 24 MHz
• Antenna output: BNC socket, 50 Ω
• Max. RF output power: 823.2-831.8 MHz, 30 mW
• AF transmission range: 45 Hz to 15 kHz
• AF input (BAL AF IN L (I) + MONO/BAL AF IN R (II)): 2x XLR 6.3 mm TRS combo jack (3/¼"), electronically balanced
• Signal-to-noise ratio(at rated load and peak stroke): ≥88 dB
• Temperature range: 0 °C to +40 °C
• Power supply: +12 V DC
• Current consumption: approx. 400 mA (depending on volume)
• Dimensions: approx. 200 x 128 x 42 mm
• Weight: approx. 700 g
• Input voltage: 100 to 240 V~200 mA, 50/60 Hz
• Current consumption: max. 200 mA
• Output voltage: +12 V DC
• Secondary output current: 500 mA
• Temperature range: 0 °C ... +40 °C
• Temperature range during storage: -20 °C ... +60 °C

Specs:

• Type: InEar System
• Theme: PA and Sonication
