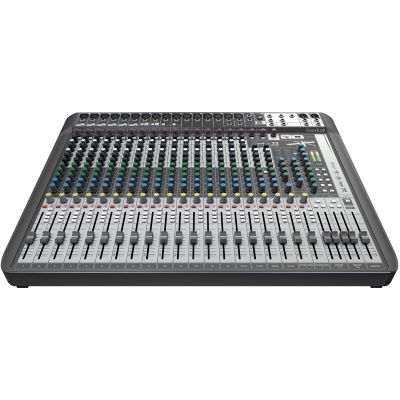

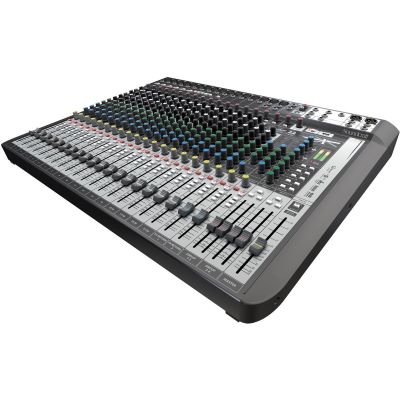

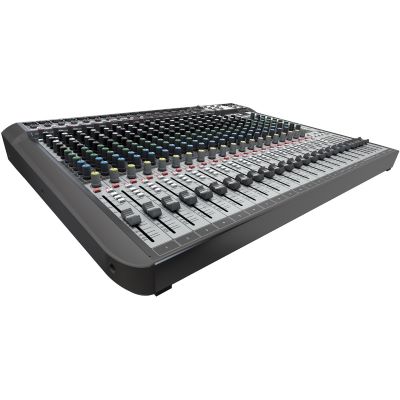

Soundcraft Signature 22 MTK

The compact 22-channel mixing console Signature 22 MTK has a built-in USB interface or audio interface, a PC recording function and first-class Ghost microphone preamplifier.

To edit complex applications four subgroups and five aux channels provide a high degree of flexibility and overview. The famous Ghost Mic-Preamps are extra equipped with high quality 4-band EQ and mids.Lexicon Studio effects and switchable dbx compressors / limiters are available for signal processing.

Thanks to the USB interface, it is possible to make multi-track recordings of performances and songs in the program room. Included in delivery is the recording software Ableton Live 9 Lite for creative composing, recording and producing.

Features:

• Compact 22-channel mixing console with PC recording function
• Microphone preamplifiers from the legendary Soundcraft Ghost mixers ensure crystal-clear sound and excellent noise-to-noise ratio
• Musical sound control through the equalizer design of the Soundcraft Sapphyre high-end studio microphones
• Professional sound processing with Lexicon effects and dbx compressors
• 22-channel PC recording via the built-in audio interface / USB interface
• Includes Ableton Live Lite software (download and authorization requires internet connection)

Technical Specificatons:

• 16 mono channels (Mic / Line)
• 4 stereo channels
• 100 mm fader
• Microphone preamplifier of Ghost mixers
• 4-band EQ with tunable mid-range, EQ design of the legendary Sapphyre mixing consoles
• 2 Lexicon effects
• Dbx compressor / limiter in 8 channels
• 5 aux sends (pre / post switchable)
• 4 Subgroups
• USB Multitrack PC-Recording / Playback with 22/24 tracks
• Ableton Live 9 Lite music software included

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (2.73 MB)
