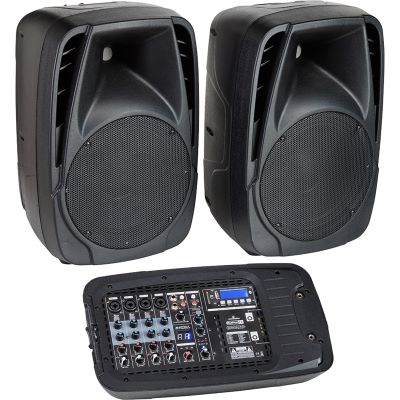

Soundsation BLUEPORT FX

The SOUNDSATION BLUEPORT FX is a 2x100W Portable PA system and the result of SOUNDSATION's years of experience in the field of portable sound reinforcement systems, a segment where quality, versatility and value for money are absolutely crucial. This actively amplified portable PA system includes two passive speakers with 10" woofers and integrated amplified mixer. In addition to the MP3 player with USB, SD card and Bluetooth ™, the system integrates a 24Bit DSP FX with 16 real effects to add the MIC inputs of the choice of level for each channel. The integrated mixer is equipped with a Class-D 2x100W (RMS) amplifier. The enclosure (ABS) is strong and lightweight with a pleasant appearance.

Features:

• Two passive speakers with integrated amplifier mixer.
• Class-D amplifier with 2x100W (RMS)
• Speaker with 10" woofer and 1" compression driver
• Dual band equalizer (low/high frequencies)
• MP3 player with USB, SD card and Bluetooth™.
• 4 microphone/line inputs
• 1 stereo RCA/JACK 1/4" line input
• 1 stereo RCA line output
• 24Bit DSP FX with 16 real effects
• Infrared receiver for remote control
• 35 mm hole for pole mounting
• Robust, compact and lightweight housing (ABS)

Technical data:

• Frequency Response: 65 Hz - 20KHz [- 10dB] ; 65Hz-19KHz [- 3dB]
• System Max SPL / Sensitivity: 118dB / 95dB
• Amplifier class: D ; Power RMS / Peak - 2 x 100W / 2 x 250W ; Output connectors - 2x 1/4" Jack
• Input channels:4 Mic/Line + 1 Stereo Line
• Phantom power: (CH1-4) +48V
• EQ High (CH 1-4 and Master) - Cutoff frequency: 1KHz / Gain:+/-15dB
• EQ Low (CH 1-4 and Master) - cut-off frequency: 500Hz / gain: +/-15dB
• Digital effects: 16 presets with level control (CH1-4)
• Digital multimedia player: USB, SD-CARD and Bluetooth
• Power requirements: 230Vac-50Hz ; Power consumption - 350W ; Power switch - YES ; Plug - VDE ; Fuse - T3.15A - 250V
• Material of speaker and mixer cabinet: ABS
• Material of grille/thickness: steel/0.8mm

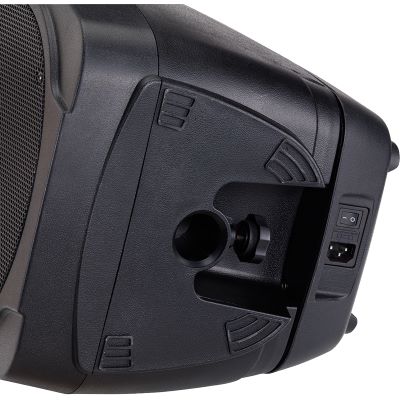

• Bar support: 35mm
• Single speaker size (WxHxD): 330 x 300 x 490mm
• Net weight (2 speakers+mixer+accessories): 16kg

Specs:

• Impedance: 8 Ω
• Power: 200 W
• Housing Material: Plastic
• Pole Mount: yes
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Set Offer: no
• Type: PA System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (4.65 MB)
