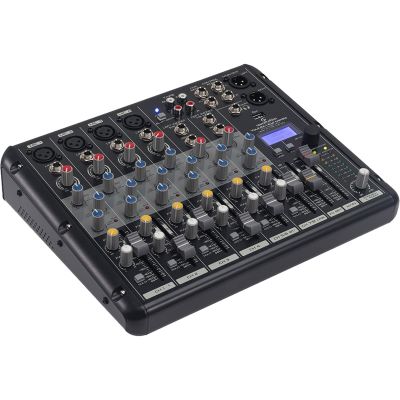

Soundsation YOUMIX-402 MEDIA

The Soundsation YOUMIX-402 MEDIA combines maximum portability with the quality of a preamplifier, delivering the accuracy of filters and controls. It is ideal for live music, home recording, podcasting and all those applications where all the important functions of a professional mixer should be integrated in a single device. The mic preamps offer high headroom and low noise to ensure clean and natural sound with all types of sources: condenser mics (with +48V phantom power), dynamic mics, line signals and high-impedance instruments. The digital multi-effect offers 256 presets covering the most commonly used effects (room, reverb, vocal, plate reverb, delay, echo, chorus, flanger and combo). The USB player accepts files in MP3 format (up to 48kHz - 32-bit @ 320kbps) and the BT receiver provides professional audio streaming. The YouMix-402 MEDIA is the compact solution with superior performance for all mixing needs where the quality of the result is paramount.

Features:

• Professional 8-channel mixing console
• 4 microphone preamps with high headroom and low noise
• 2 stereo channels and 1 separate stereo tape in/out channel
• BT wireless stereo audio connection with inline channel control
• USB player with inline channel controls
• 24-bit digital multi-effect with 256 presets
• 1/4" (6.3 mm) balanced TRS jacks on all mic/stereo channels
• Balanced stereo output with XLR; stereo control-room outputs with ¼" jack
• 3-band EQ on all mono channels; 2-band EQ on stereo channels
• 60mm volume controls on each channel and main output
• Aux/Eff Send controls on all channels
• Aux/Eff Return with 60-mm slider for optimal level adjustment
• Control Room/Headphones output with dedicated volume control
• Built-in +48V phantom power for condenser microphones

Technical specifications:

• Input connectors: Balanced XLR (mic channels), balanced 1/4" phone plug (mic and stereo line channels), stereo RCA (tape in), USB 2.0 Type-A jack (MP3 player)

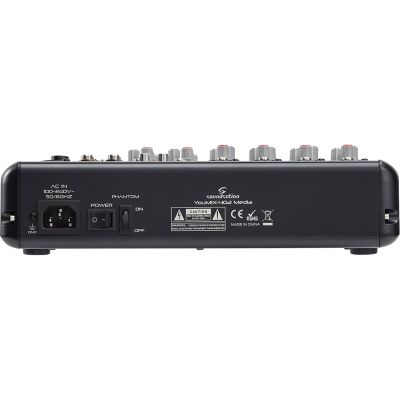

• Output connector: balanced XLR (Main Out L-R), unbalanced ¼" phone plug (Control Room L&R Out, Aux Send Out, Aux Return Input), stereo ¼" phone plug (Phones), stereo RCA (Tape Out)
• Main Outputs: +28dB (Balanced).
• Control Room outputs, Aux Send/Return, Tape Out: +22dBu (unbalanced)
• Phones output: +15dBu / 150ohm
• Main section controls: FX Return 60mm level control, 60mm main level control, 60mm Phones/Control Room volume control, power-on LED indicator, phantom power-on LED indicator,
• 2x8-LED vu-meter bar (main level/solo), 2x8-character LCD display (MP3 player and multi-effect).
• MP3 player controls: USB button, parameter turn/push knob
• Player functions: Music player, EQ curve selection, player mode, audio recording
• USB drive format: FAT32 format - max 32GByte
• Player/Recorder File formats: MP3 (up to 48kHz @ 320kbps); WAV (32kHz/32bit)
• Digital multi-effect: 24-bit sigma-delta, 256x oversampling, 48kHz sampling rate, 256 presets
• Power requirements: 100-240Vac, 50/60Hz
• Power consumption: Max. 5W

Specs:

• Type: Mixer
• Theme: PA and Sonication
