Waldorf Iridium Keyboard Synthesizer

The Iridium Keyboard features a new FATAR TP/8SK keyboard with 49 semi-weighted polyphonic aftertouch keys, a first for the Iridium Keyboard. The expanded front panel offers one-button operation per function, greatly enhancing the workflow of this high-quality synthesizer, and provides six freely programmable macro keys that can be used to define functions from a wide range of features for additional performance control.

When playing the Iridium keyboard live, this allows for impressive sonic changes, as the polyphonic aftertouch can be used individually for each note played. In other words, the pressure of each finger affects the individual keys, creating individual modulations per key, for example, while with monophonic aftertouch all notes played respond in the same way.

Features:

• 49 semi-weighted polyphonic aftertouch keys.
• FATAR TP/8SK keyboard
• 6 freely programmable macro keys
• Digital polyphonic synthesizer
• 16-voice polyphonic, duo-timbral
• Compatible with the synthengine of the Waldorf Quantum

3 oscillators / oscillator modes:

• Wavetable
• Waveform (VA)
• Particle (sampling and granular sampling)
• Resonator
• Kernels (up to 6 sub-oscillators that can be linked via FM at Audiorate)

3 stereo filters per voice:

• Dual Digital Filter
• 2 filters, independently adjustable
• 12/24dB LP/HP/BP in all combinations
• Nave, Largo, PPG, Quantum and StateVariable as models

Digital Shaper:

• Filter models from Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
• Comb Filter
• Bitcrusher
• Drive
• RingMod
• StateVariable
• Analyzer display in filter view
• Filter curve moves with modulation (optional)
• Flexible routing options for filters with modulatable panning and levels

Modulators:

• 6 envelopes
• 6 LFOs
• Complex Modulator (free drawable shape for LFO or Envelope)

Mod Matrix:

• 40 slots
• Quick assignment
• 1 additional Control Amount per slot
• Same sources and destinations can be used as many times as needed until matrix is full

Pads:

• 4x4 silicone pad buttons with RGB lighting.
• Pads can play notes, chords, arpeggios and sequences
• Latch mode

Performance Features:

• Arpeggiator
• Step sequencer with up to 32 steps for notes and parameter lines
• Favorites screen for quick patch recall
• Modwheel, pitch bend and aftertouch can be operated via touchscreen

Screen:

• Industry-grade touchscreen, extremely smooth to use

Patches:

• Over 1000 factory sounds
• Capacity for up to 7000 patches (slot numbers 0000-9999 can be used)
• Patches from Quantum can be loaded into Iridium and vice versa
• Category filter for patch list
• 2GB user sample memory

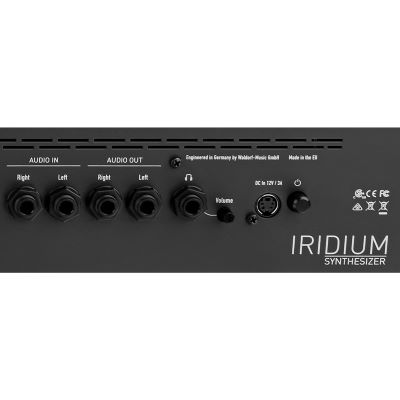

Connectors:

• 2x 6.3mm jack output (TS)
• 2x 6,3mm jack input (TS)
• Headphones output with gain control
• DIN MIDI In/Out/Thru
• USB MIDI
• USB host for memory and MIDI devices
• MicroSD slot
• Kensington® lock

CV connectors:

• 4 CV inputs plus Gate In, Trigger In, Clock In, Clock Out.
• Inputs appear as sources in the Mod Matrix

Other:

• Sturdy metal case with aluminum knobs
• Dimensions: 851mm wide, 355mm deep, 110mm high (including controls)
• Weight: 14kg

Specs:

• Color: Black
• USB-MIDI: USB and MIDI
• Number of Keys: 49
• MIDI Inputs: 1 Port
• Type of sound generation: digital
• USB-MIDI: USB and MIDI
• MIDI Outputs: 1 Port
• MIDI Inputs: 1 Port
• Line Outputs: 2
• MIDI Outputs: 1 Port
• Number of Keys: 49
• Line Outputs: 2
• Type of sound generation: digital
• Type: Synthesizer
• Theme: Keyboard Instruments
