Warm Audio ODD Box V1

Over Drive Disorder Pedal

Warm Audio's ODD Box V1 (Over Drive Disorder) is inspired by a legendary OD pedal with a "cranked amp" sound. Based on the "V1" model of the original, the ODD Box V1 offers sonic versatility and is perfect for "boosting", "breakup" or "high gain" sounds. The op-amp based circuitry delivers all the sounds of a lush tube amp and serves as the inspiration for the pedal's sonic aesthetic. True to this idea, the ODD Box V1 delivers a massive and powerful sound that is appreciated by many musicians such as Billy Gibbons, Mark Hoppus, Eric Johnson, J Mascis, Paul Gilbert and many others.

UK/US Switch:

The "UK" setting adds distortion, boosts the upper mids and increases the volume - giving this setting a more "British" amp sound. The "US" setting reduces the saturation in the gain stage, giving the ODD Box V1 more of a "boost" feel and a better fit for traditional "American" amp sounds.

Built like an iconic boutique OD:

To deliver the artist's preferred sound, the ODD Box V1 is built with high-quality components, including a TLO82CP op amp, 2N7000 transistors, and hand-selected capacitors and resistors.

Features:

• Warm Audio - ODD Box V1
• Over Drive Disorder Pedal
• Inspired by an iconic pedal known for its "cranked amp" tone
• High-quality components, including a TLO82CP op amp, 2N7000-
• transistors, and hand-selected capacitors and resistors

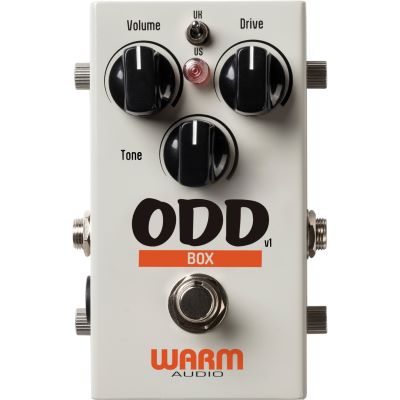

• Controls: Volume, Drive, Tone & UK/US switch
• Through-hole construction
• True-bypass circuitry
• 9-volt battery or external regulated 9-18V DC adapter (center negative)
• Current draw: 5.5 mA (9V) / 6.5 mA (18V)
• Custom folded steel housing with durable powder coat finish
• 1/4" input and output jacks
• Dimensions: 11.4 cm x 6.35 cm x 3.81 cm
• Weight: 385 g

Specs:

• Color: Grey
• Effect Type: Overdrive
• Type: digital Effects Processor
• Theme: Guitars and Basses
