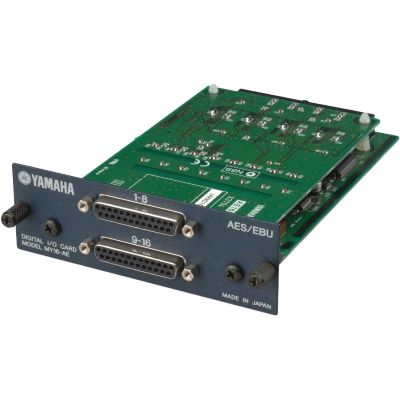

Yamaha MY16AE AES/EBU Interface

The Yamaha MY16-AE is an optional digital I/O card for compatible Yamaha digital mixing consoles and signal processors. It provides 16 inputs and 16 outputs for uncompressed AES/EBU compatible digital audio at 24 bit and 44.1/48 kHz.

Features:

• MY (Mini-YGDAI) series expansion cards for use in the optional I/O slots of digital mixing consoles and mixing engines
• Compatible with DM2000, DM1000, 02R96 and 01V96
• 24 bit resolution
• 16 inputs and 16 outputs each AES/EBU interface
• 2x 25 pin D-SUB
• Number of channels: 16IN / 16OUT
• Format: AES/EBU
• Connection: 2 x D-Sub 25-pin
• Resolution: 24bit
• Dimensions: 120 x 40 x 176 mm

Specs:

• Type: Audio Interface
• Theme: Recording and Studio
