Yuer ABY - Switcher / Splitter

Yuer ABY - Switcher / Splitter, ABY switch

Versatile signal routing with the Yuer ABY - Switcher / Splitter

Whether in the studio, on stage or in the rehearsal room - musicians and sound engineers are often faced with the challenge of routing signals flexibly and reliably. This is exactly where the Yuer ABY - Switcher / Splitter, ABY switcher comes into play. This compact and powerful device allows the targeted switching, splitting or merging of audio signals - ideal for use with instruments, amplifiers, effects units or loudspeakers.

With its two different operating modes (A/B - Y and A&B - Y), a robust aluminum housing and intuitive operation, this ABY switch is a valuable tool for anyone who wants to expand or optimize their setup. Whether you want to switch between two amplifiers, merge multiple signals or send your signal to two outputs, the Yuer ABY makes it possible.

Yuer - functionality meets reliability

The Yuer brand stands for practical audio technology with an excellent price-performance ratio. Musicians around the world appreciate the sophisticated technology and durable workmanship of Yuer products. The Yuer ABY - Switcher / Splitter, ABY-Switch is a prime example of this philosophy. Developed for daily use on stage or in the studio, it combines high functionality with a compact and robust design.

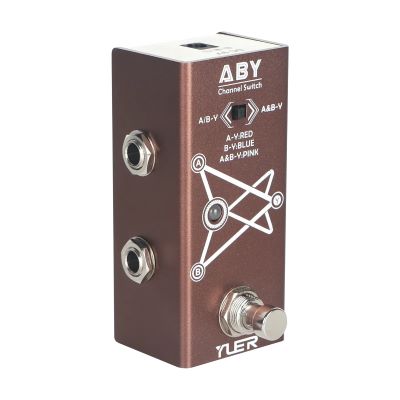

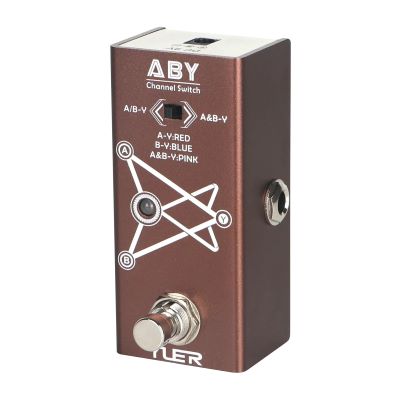

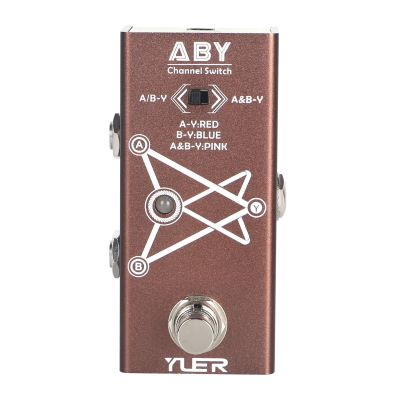

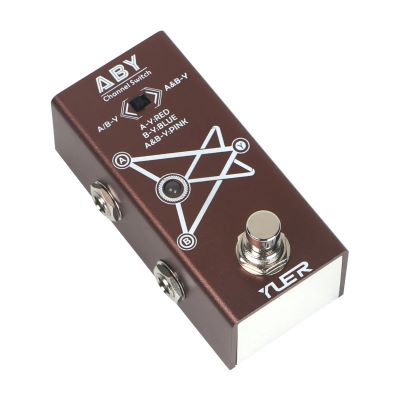

The operation of the ABY switch is deliberately kept simple: A footswitch is used to switch between channels, while a colored LED display visualizes the active mode. The mode is changed via a separate switch so that you remain flexible at all times. Whether you want to split your signal or merge several sources - with the Yuer ABY, you can do it in no time at all.

Compact helper for musicians with high standards

The Yuer ABY - Switcher / Splitter, ABY switch is aimed at musicians who want a high degree of control over their signal flow without having to dig deep into their pockets. Thanks to true bypass, the signal is not distorted when inactive - ideal for anyone who values unadulterated sound. And with a weight of just 145 g and a housing size of 92 x 42 x 52 mm, the switch can be easily integrated into any pedalboard.

Particularly worth mentioning is the option of operating the ABY switch without a power source. In this case, the LEDs are not active, but the signal routing continues to function reliably. This makes the device particularly flexible and independent of the presence of a power supply unit - a clear advantage in live operation.

One device - many possible applications

The Yuer ABY can be used in a variety of scenarios: guitarists can switch between two amps or control both at the same time. Keyboardists or bassists can split or mix their signals. In the studio, complex signal paths can be designed clearly and without loss. The switch is also completely MIDI-independent, which makes it interesting for purely analog setups.

Thanks to the bidirectional usability of the inputs and outputs, the Yuer ABY opens up numerous configuration options without complicated settings. Simply connect, select the mode and get started - signal routing can be that simple.

Conclusion: The Yuer ABY - compact, robust, versatile

The Yuer ABY - Switcher / Splitter, ABY switch is the ideal solution for anyone looking for a reliable, compact and versatile device for switching or splitting audio signals. With two operating modes, a robust aluminum housing, true bypass and LED display, it meets all the requirements of a modern ABY routing device - whether for live use or in the studio.

Thanks to its simple operation, high flexibility and robust construction, the Yuer ABY is a real insider tip for musicians with high standards. Anyone looking for control over their signal flow will find this ABY switch a reliable tool with professional features.

Features:

• Two operating modes: A/B - Y and A&B - Y for maximum routing flexibility
• True bypass for unadulterated signal flow without loss of sound
• Channel switching via sturdy footswitch
• Switch for mode selection directly on the device
• Three colored status LEDs (red, blue, pink) for channel visualization
• Bidirectional use of inputs and outputs possible
• Inputs and outputs in 6.3 mm mono jack format
• Robust and lightweight aluminum housing

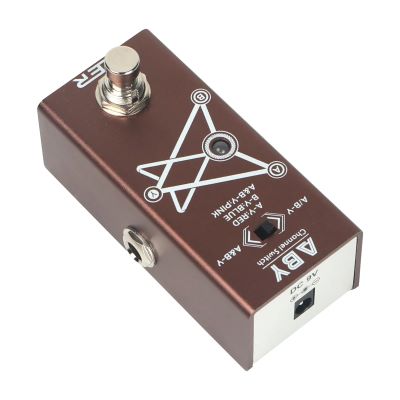

• Power supply via 9V DC power supply unit with 2.1 x 5.5 mm barrel connector (not included)
• Polarity: negative pole inside
• Current consumption: 8 mA
• Operation also possible without power source (LED function deactivated)
• No battery operation supported
• Compact dimensions: 92 x 42 x 52 mm (L x W x H)
• Weight: 145 g
• Design: Floor effect unit
• No MIDI interface required or available

Specs:

• Type: digital Effects Processor
• Theme: Guitars and Basses
