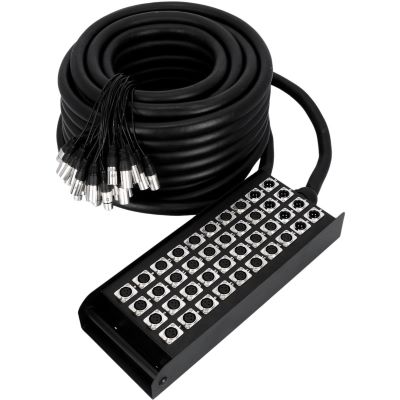

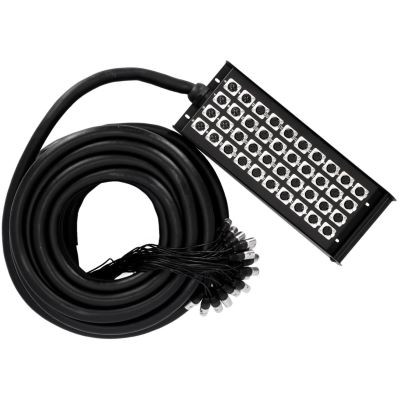

Adam Hall 3 STAR MULTICORE 40 KANAL 30 M - Stagebox with 32 sends & 8 returns

The Adam Hall 3 STAR MULTICORE 40 KANAL 30 M is a professional stagebox solution for demanding live and studio applications. With 32 input channels (send) and 8 return channels (return) via a permanently connected 30 meter multicore cable, this system offers maximum flexibility and quality for complex audio environments - whether on stage, in the rehearsal room or for permanent installations.

The solid sheet steel housing with black powder coating and integrated carrying handle not only offers mechanical robustness, but also reliable protection for the connections. All XLR sockets and plugs are made of metal and numbered - for maximum clarity and easy handling during setup.

40-channel complete solution for professional audio cabling

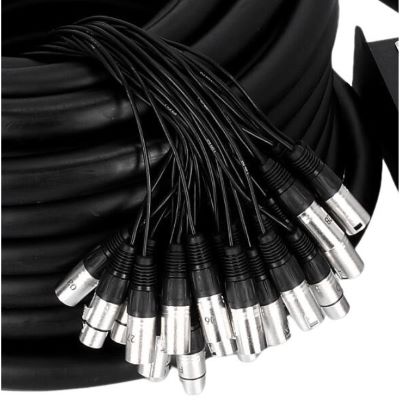

The multicore system has 32 balanced XLR female inputs for feeding in microphone signals or line level signals as well as 8 balanced XLR male outputs for return paths such as monitoring or submixes. The channel numbering is clearly legible on the connectors - ideal for quick setups and reliable signal routing.

The splitter length of 60 cm allows all channels to be conveniently connected on site without putting strain on the main cable. The integrated wire strain relief additionally protects the connection from cable breakage or mechanical stress - a must in live operation.

30 meters of robust PVC cable with high conductivity

The permanently installed multicore cable is 30 meters long and has a high-quality PVC sheath. With a diameter of 28 mm, it is extremely robust, yet flexible enough for mobile applications. The cable is easy to roll up, lay and stow away.

Inside, conductors made of OFC (oxygen-free copper) with a cross-section of 2 x 0.31 mm² per channel ensure low-loss, noise-free signal transmission - ideal for sensitive microphone signals or high-quality audio chains.

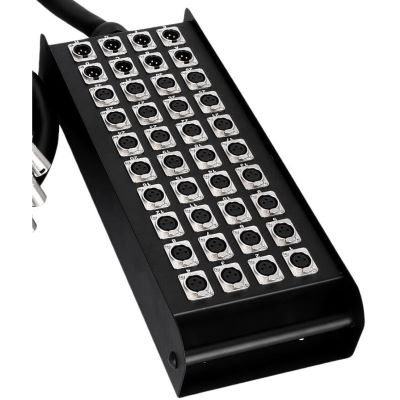

Sophisticated design for tough live environments

The stagebox housing is made of robust metal and measures 460 x 75 x 180 mm (W x H x D). With a weight of 32.83 kg, the system is designed for stationary or semi-mobile use - transportable but extremely stable. The black powder coating permanently protects the housing against scratches, dirt and moisture.

An integrated carrying handle facilitates handling on the way to the stage or between venues. All connections are reliably screwed, soldered to a high standard and designed for daily use.

Conclusion: Robust 40-channel multicore stage box for professional applications

The Adam Hall 3 STAR MULTICORE 40 CHANNEL 30 M is the ideal solution for professional stage applications, festivals, theaters, concert halls or mobile recording sessions. With 40 channels, a clear structure, high-quality connectors and reliable workmanship, it offers maximum signal quality and durability in a well thought-out, robust format.

Features:

• Number of channels: 40 (32 send / 8 return)
• Connector type input: XLR 3-pin female
• Plug type output: XLR 3-pin male
• Multicore cable: 30 m permanently installed
• Splitter length: 60 cm
• Cable diameter: 28 mm
• Cable sheathing: PVC (polyvinyl chloride)
• Conductor material: OFC (oxygen-free copper)
• Conductor cross-section: 2 x 0.31 mm²
• Housing material: Metal, black powder-coated
• Width: 460 mm
• Height: 75 mm
• Depth: 180 mm
• Weight: 32.83 kg
• With integrated carrying handle and wire strain relief
• High-quality, numbered XLR connectors from Adam Hall®
• Part of the Adam Hall 3 STAR SERIES

Specs:

• Port A: XLR female
• Port B: XLR male
• Usage: Multicore cable
• Cable Length: 30 m
• Inputs: 8
• Type: Cable
• Theme: Cables and Pins
